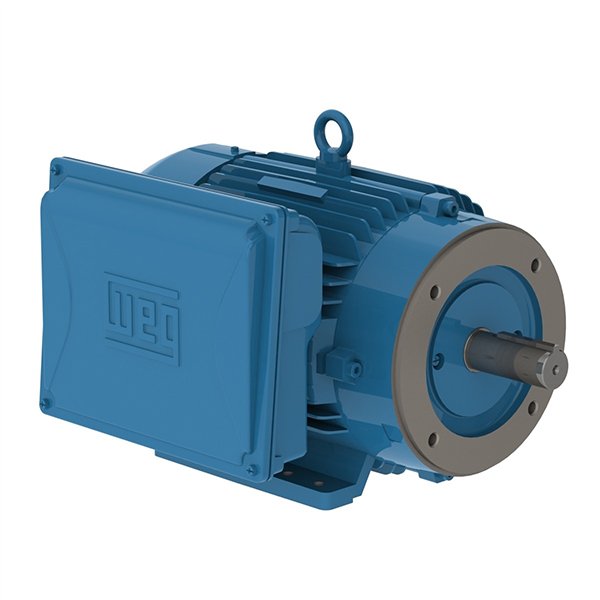

WEG Motor W22 , 10HP, 230V , 1Ph, 60 Hz, 3515RPM, TEFC, Foot-Mounted, Model 01036ES1E215TC-W22
$1,660.99
High starting torque.
Suitable for domestic and rural power supply conditions.
Adaptable design suitable for a variety of applications and needs.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 10 HP |
| Flange | C |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC411 – TEFC |
| Brand |
WEG |
|---|---|
| HP |
10 |
Estimated delivery dates: July 22nd - July 24th
Description
Technical Data
| Brand | WEG |
|---|---|
| Frame | 213/5TC |
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3515 rpm |
| Slip (%) | 2.36 |
| Rated Voltage (V) | 208-230 |
| Rated Current (A) | 41.8-38.8 |
| L. R. Amperes (A) | 293-272 |
| LRC (A) | 7.0x (Code G) |
| No load Current (A) | 5.95-6.90 |
| Rated Torque (ft.lb) | 14.9 |
| Locked Rotor Torque (%) | 229 |
| Breakdown Torque (%) | 290 |
| Locked Rotor Time | 14s (cold) 8s (hot) |
| Moment of Inertia (J) | 0.5285 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 72.0 dB(A) |
| Approx. Weight (lb) | 170 |
Efficiency
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 80.8 | 82.0 | 85.5 | 86.5 |
Power Factor
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.76 | 0.96 | 0.97 | 0.97 |
Features
| Frame Material | Aluminum |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 – C3) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
| Fan material | Plastic |
