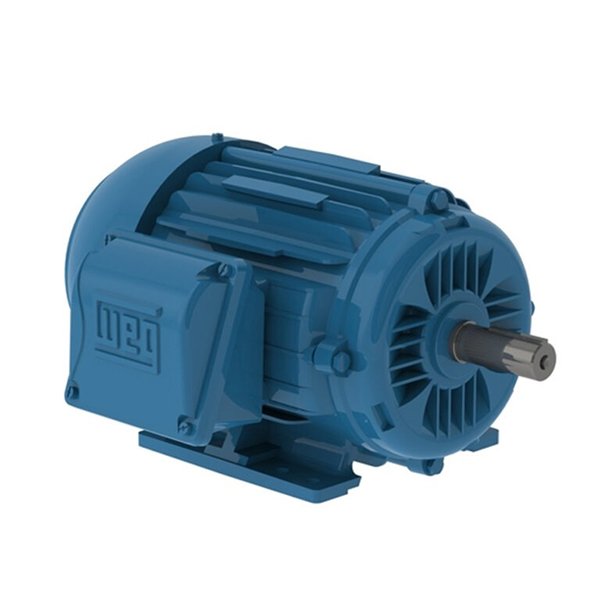

W22 NEMA Premium Efficiency – 2 HP, 230/460//380V – 3Ph, 1800RPM, IC411 – TEFC – Foot-mounted, Model 00218ET3E145T-W22
$515.99
With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 2 HP |
| Mounting | Foot-mounted |
| Flange | Without |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |
| Brand |
WEG |
|---|---|
| HP |
2 |
Estimated delivery dates: July 22nd - July 24th
Description
Technical Data
| Frame | 143/5T |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1750 rpm |
| Slip | 2.78 % |
| Rated voltage | 230/460 V |
| Rated current | 5.58/2.79 A |
| L. R. Amperes | 46.3/23.2 A |
| LRC | 8.3x(Code L) |
| No load current | 3.26/1.63 A |
| Rated torque | 6.00 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 320 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Moment of inertia (J) | 0.1561 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 51.0 dB(A) |
| Approx. weight³ | 50.0 lb |
