JMS Centrifugal Electric Pump — 1584 GPH, 0.8 HP, 115/220V, JR-P 75M
$227.99
Applications
- For domestic systems and small irrigation system pressurization.
- Handling of non aggressive civil and industrial liquids.
- For washing systems and for insertion into complex industrial machinery and lines
Design Engineering
- 2 pole electric induction motor for continuous operations.
- Stator made with low-loss laminated electric sheet steel.
- Insulation Class F.
- IP 44 protection level.
- Thermal protection for single-phase models, the user is responsible for supplying protection for the three-phase models.
Customized voltage and frequency rating available on demand.
Available with UL list motors.
| Brand |
JMS |
|---|
Description
Description

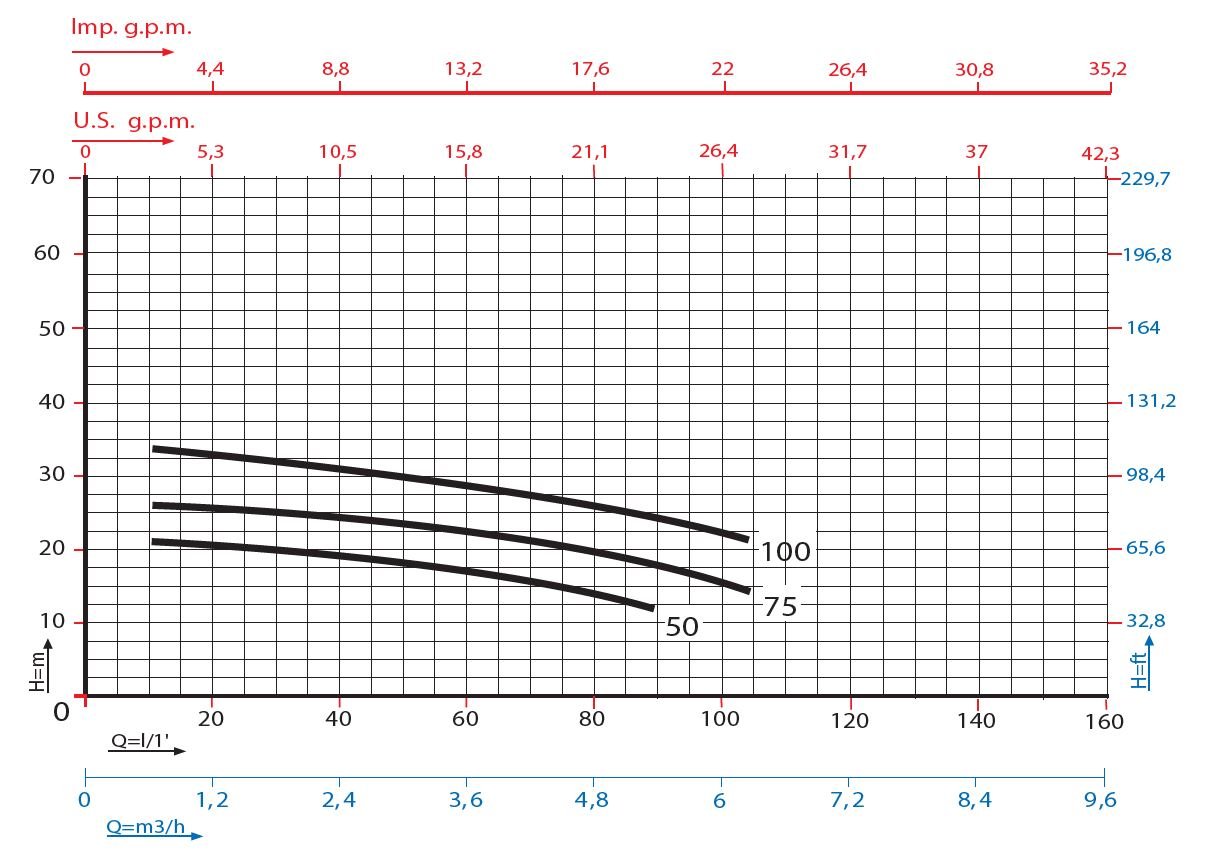

Performances
at 3450 rpm 60Hz
The performances data holds true for liquids:
p= 1,0 kg/dm3 density and a v=1 mm2/s viscosity.
Technical Data
| Brand | JMS | ||||||||||
| Model | P2 nom. | Ampere | Capacity | ||||||||
| 1~220V-60hz | HP | KW | 1~1 x 220V 60Hz | ||||||||
| Gpm | 0.53 | 8 | 12 | 16 | 20 | 24 | 28 | ||||
| Total head in meters w.c | |||||||||||
| JR-P 75M | 0.8 | 0.6 | 5.3 | 87 | 85 | 82 | 77 | 72 | 66 | 57 | 46 |
Dimensions
| Model | DNA Aspir | Outlet |  Dimensions Box |
Peso Weight (KG) | ||
| P | L | H | ||||
| JR-P 75M | 1″ | 1″ | 8.3 | 13 | 11 | – |
