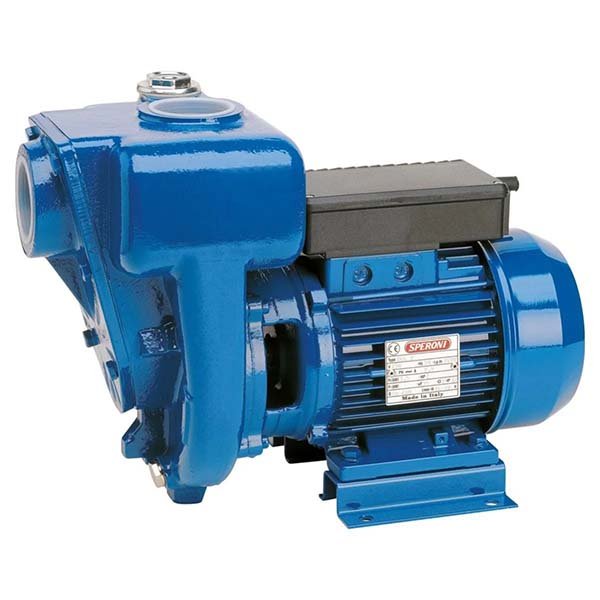

Self-priming Monoblock Trash Water Pump – 2HP – 9510 GPH – 2in. Ports – 3P – HG50-1.5
$935.99
Application:
Selfpriming monoblock water pumps with open impeller.
The check valve inside the suction outlet avoids the syphon effect when stopping and assures the automatic re-start each time. The pump selfprimes even if partially filled and if the suction hose is completely empty. Suitable to drain clean or slightly dirty water and in flood irrigation systems.
OPERATING CONDITIONS:
- – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- – Temperature max. liquid: 194°F (for other uses)
- – Ambient temperature up to 104°F
- – Total suction lift up to 23 ft.
MOTOR
- – Single-phase 220V-60Hz – 3 PHASE
- – Two-pole induction motor (n = 3450 min-1)
- – Insulation Class F
- – Protection IP 55
MATERIALS
-
- – Pump body: Cast Iron
- – Motor Support: Cast Iron
- – Impeller: Cast Iron
- – Shaft with rotor: Stainless Steel 304
- – Mechanical seal: Ceramic/Graphite/NBR
| Flow (GPH) |
9510 |
|---|---|
| HP |
2 |
| Discharge Port (in.) |
2 |
| Suction Port (in.) |
2 |
| Brand |
SPERONI |
| Model | HG50-1.5 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Cast Iron |
| Port Size (in.) | 2 |
| Flow (GPH) | 9510 |
| HP | 2 |
| Volts
AMP |
220V – 3 Phase
4.5 |
| Max. Total Head (ft.) | 62.3 |
| Max. Suction Lift (ft.) | 23 |
| Max. PSI | 27.5 |
| Suction Port (in.) | 2 |
| Discharge Port (in.) | 2 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 13.8 x 7 x 8.2 |
| Product Weight (lbs.) | 56.4 |
Estimated Delivery: 3-5 Business Days
If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $120 Liftgate service fee .
For all products over 100 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 100 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
Reviews
There are no reviews yet.
