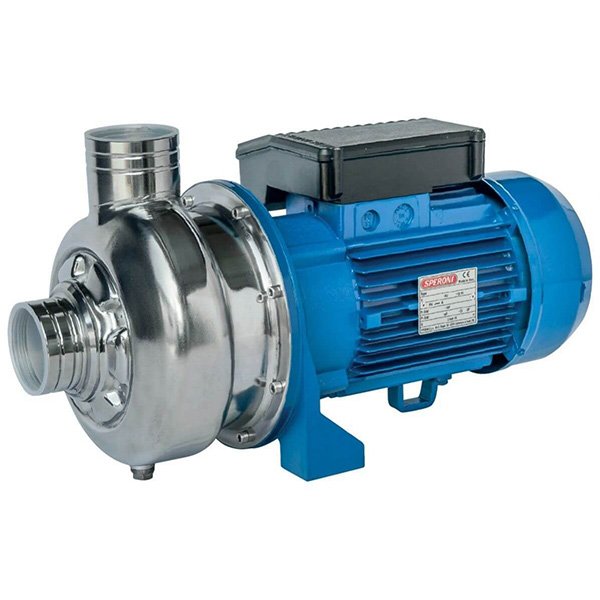

Speroni CMX 100/1.1 Single Impeller Centrifugal Water Pump – 1920 GPH – 1.5HP – 1P
$694.99
The Speroni CMX 100/1.1 is a single impeller, centrifugal pump with 1.5HP and 1920 GPH. This pump can be used for running sprinklers, flood irrigations systems, gardening and more.
- Great for small and large agricultural projects
- Stainless steel pump body
- Stainless steel impeller
| Flow (GPH) | 1920 |
|---|---|
| HP | 1.5 |
| Discharge Port (in.) | 1 |
| Suction Port (in.) | 1″ 1/4 |
| Brand | SPERONI |
Description
Operating Conditions
- Liquid temperature up to 95°F (for home use according to EN 60335-2-41) Temperature max. liquid: 194°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 23ft
Motor
- Single-phase 220V-60Hz
- Two-Pole induction motor (n = 3450 rpm)
- Insulation Class F
- Protection IP 55
Materials
- Pump body Stainless Steel AISI 304
- Motor Support Aluminum
- Open impeller Stainless Steel AISI 304
- Shaft with rotor Stainless Steel AISI 304
- Mechanical seal Silicon/Graphite/EPDM
Applications
The CMX 100/1.1 can be used to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.
Technical Specifications
| Model | CMX 100/1.1 |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year |
| Ship Weight | 38lbs |
| Port Size (in.) | 1″ – 1-1/4″ |
| Flow (GPH) | 1920 |
| HP | 1.5 |
| Voltage | 220V – Single Phase |
| Amps | 7.1 |
| Max. Total Head (ft.) | 118 |
| Max. Suction Lift (ft.) | 70 |
| Max. PSI | 81 |
| Suction Port (in.) | 1-1/4″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 15 x 9 x 13.5 |
| Product Weight (lbs.) | 35 |
