Gol Pumps 3″ Thin Submersible Well Pump – 296Ft – 1740 GPH – 3 Wire – 1.5HP
$423.99
This 3″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 296 feet of head and is a great fit for 3.5″ diameter wells.
- Water supply from wells and reservoirs
- Comes with overload and capacitor box
- Rewindable motor
Applications
- For water supply from wells or reservoirs
- For domestic use
- For civil and industrial applications
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to 95°F
- Maximum sand content : 0.25%
- Minimum well diameter : 3″
Motor and Pump
- Rewindable motor
- Single-phase:110V/60Hz or 220V/60Hz
- Equip with start control box
- Pumps are designed by casing stressed Curve tolerance according to ISO 9906
| Voltage |
110/115 volt ,220/230 volt |
|---|---|
| Brand |
GPT CO |
Description
Description

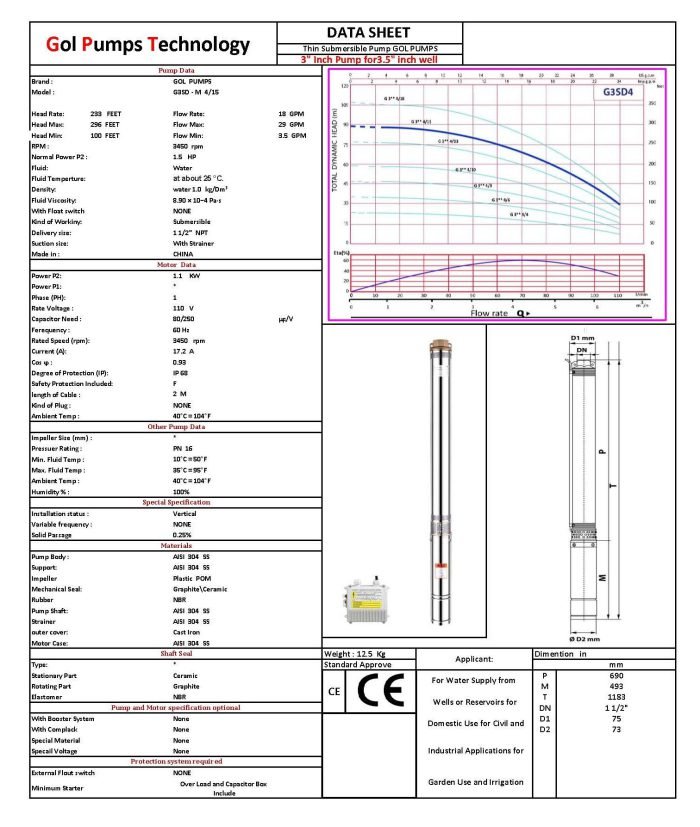

Technical Specifications
| Pump Type | Thin Submersible Pump |
| Pump Brand | GOL Pumps |
| Pump Model | 3SDM4/15 |
| Warranty | 1 Year |
| Maximum Head | 296ft |
| Minimum Head | 100ft |
| Maximum Flow | 1740 GPH |
| Minimum Fluid Temperature | 50°F |
| Maximum Fluid Temperature | 95°F |
| Maximum Ambient Temperature | 104°F |
| Discharge | 1.5″ NPT |
| Pump Material | Stainless Steel 304 |
| Pump Diameter | 3″ |
3″ GSD Total Dynamic Head
Performance Data
| MODEL | P2 | DELIVERY N = 3450 1/min | ||||||||||||||
| 1~
220V |
KW | HP | Q | m3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | 6.0 | 6.6 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | ||||
| 3SD M4/15 | 1.1 | 1.5 | H (m) | 89 | 88 | 88 | 87 | 85 | 81 | 77 | 70 | 62 | 53 | 43 | 29 | |
Dimension and Weight
| Model | DN | Dimension(inch) | Weight(lbs) | ||||||||
| 1~
110V/220V |
P | M(s) | M(t) | T(s) | T(t) | P | M(s) | M(t) | T(s) | T(t) | |
| 3SD M4/15 | 1″/1* 0.25″/1* 0.5″ | 27.1 | 19.4 | 17.6 | 46.5 | 45 | 5.5 | 22 | 19.2 | 27.5 | 25 |
| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 303 SS-ASTM 1045/5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
