Gol Pumps 3″ Thin Submersible Well Pump – 193 Ft – 942 GPH – 3 Wire – 1/2HP
$333.99

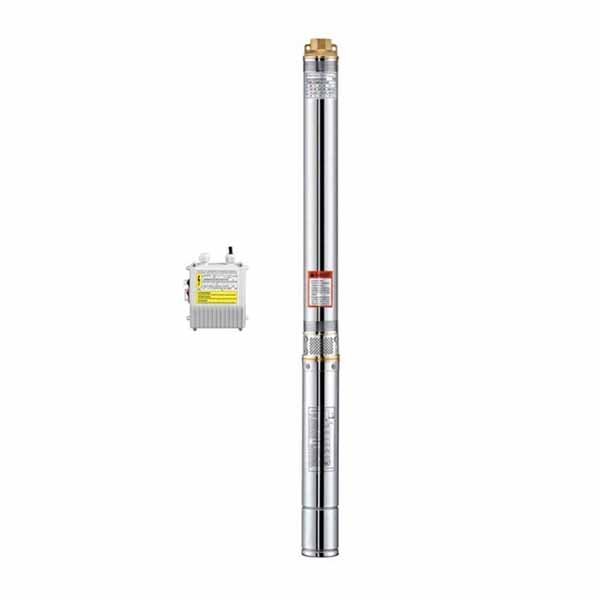

This 3″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 193 feet of head and is a great fit for 3.5″ diameter wells.
- Water supply from wells and reservoirs
- Comes with control box
- Rewindable motor
Applications
- For water supply from wells or reservoirs
- For domestic use
- For civil and industrial applications
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to 95°F
- Maximum sand content : 0.25%
- Minimum well diameter : 3″
Motor and Pump
- Rewindable motor
- Single-phase:110V/60Hz or 220V/60Hz
- Equip with start control box
- Pumps are designed by casing stressed Curve tolerance according to ISO 9906
| Voltage | 110/115 volt, 220/230 volt |
|---|---|
| Brand | GPT CO |
| HP | 0.5 |
| Pump Diameter | 3” |
Estimated delivery dates: July 31st - August 4th
Description
Description
Technical Specifications
| Pump Type | Thin Submersible Pump |
| Pump Brand | GOL Pumps |
| Pump Model | 3SDM 2/9 |
| Warranty | 1 Year |
| Maximum Head | 193ft |
| Minimum Head | 66ft |
| Maximum Flow | 942 GPH |
| Minimum Fluid Temperature | 50°F |
| Maximum Fluid Temperature | 95°F |
| Maximum Ambient Temperature | 104°F |
| Discharge | 1.25″ NPT |
| Pump Material | Stainless Steel 304 |
| Pump Diameter | 3″ |

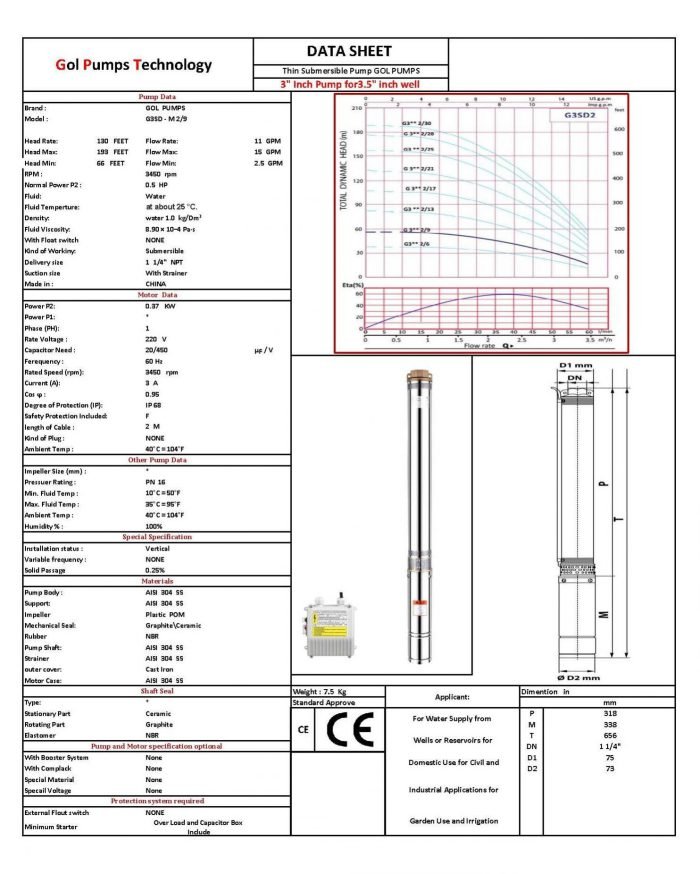

Performance Data
| MODEL | P2 | DELIVERY N = 3450 1/min | |||||||||||||||
| 1~ 220V | KW | HP | Q | m3/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||||
| 3SD M2/9 | 0.37 | 0.5 | H (m) | 56 | 56 | 56 | 55 | 54 | 52 | 49 | 46 | 41 | 36 | 30 | 24 | 16 | |
Dimension and Weight
| Model | DN | Dimension(inch) | Weight(lbs) | ||||||||
| 1~ 110V/220V | P | M(s) | M(t) | T(s) | T(t) | P | M(s) | M(t) | T(s) | T(t) | |
| 3SD M2/9 | 1″/1* 0.24″ | 12.5 | 13.3 | 12.1 | 26 | 25 | 4.2 | 12.3 | 10.6 | 16.5 | 15 |
| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 303 SS-ASTM 1045/5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
