1HP SUBMERSIBLE 460V – 3P MOTOR 29GPM DEEP WELL WATER PUMP – 4″ – 245ft Motor with Splice kit
$736.32
Pump Specifications
- Maximum Head: 245 ft
- Maximum Flow: 29 GPM
- Discharge Size: 1 1/4″
- Power: 1 HP
- Voltage: 460V, 3-Phase
- Pump Material: Noryl
- Pump Model: ST 18-08
| HP |
1 |
|---|---|
| Pump Diameter |
4” |
Description
| Model | Pump | GST 18-08 |
| Motor | 4CS3326 | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 0.75 |
| HP | 1 | |
| Service Factor | 1.4 | |
| Material | Pump | Noryl |
| Motor | Noryl | |
| Voltage – Phase | 460V – Three Phase | |
| Wire | – | |
| In | A | 3 |
| Imax | A | 3.2 |
| Istart | A | 19.1 |
| PF (%) | Allowable Load | 0.48 |
| Overload Factor | 0.58 | |
| Efficiency (%) | Allowable Load | 65.2 |
| Overload Factor | 70.5 | |
| R.P.M | 3450 | |
| Thrust | N | 3000 |
| Capacitor | UF | No |
| Cable | AWG | 14 |
| Length (ft.) | 3.9 | |
| Production Country | Taiwan | |

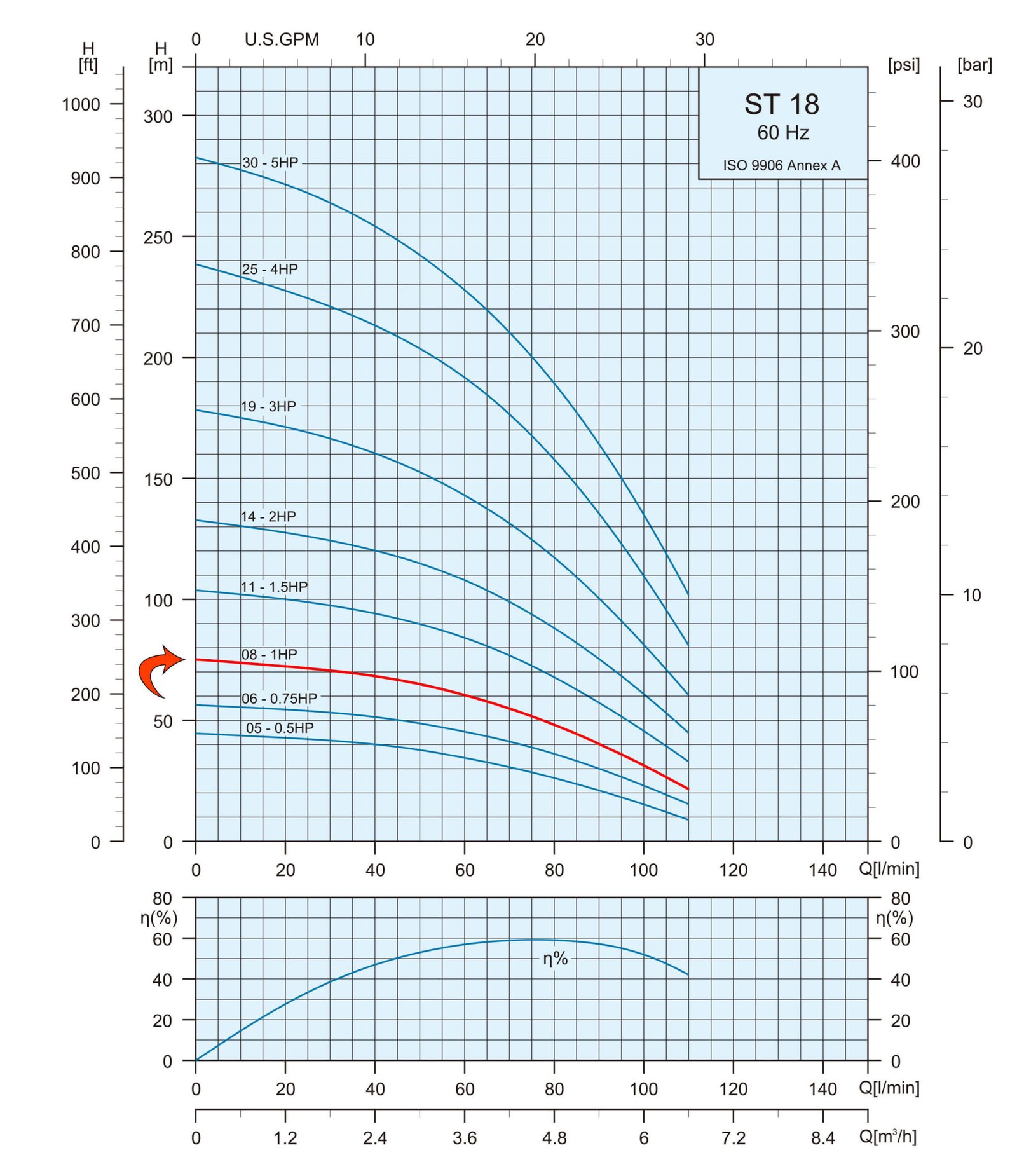

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | |||||||||||
| kW | HP | Gal/Min | 0 | 9.2 | 10.6 | 13.2 | 15.9 | 18.5 | 21.1 | 23.8 | 21.1 | 23.8 | |
| GST 18-08 | 0.75 | 1 | Head (ft.) | 246 | 230 | 223 | 213 | 200 | 180 | 161 | 135 | 105 | 72 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | |||||
| A | B | C | D | Pump | Motor | Pump + Motor | ||
| NPT 1 1/4″ | 4″ | 12.7 | 1 1/4 | 3.9 | 24.4 | 6.8 | 24.2 | 31 |

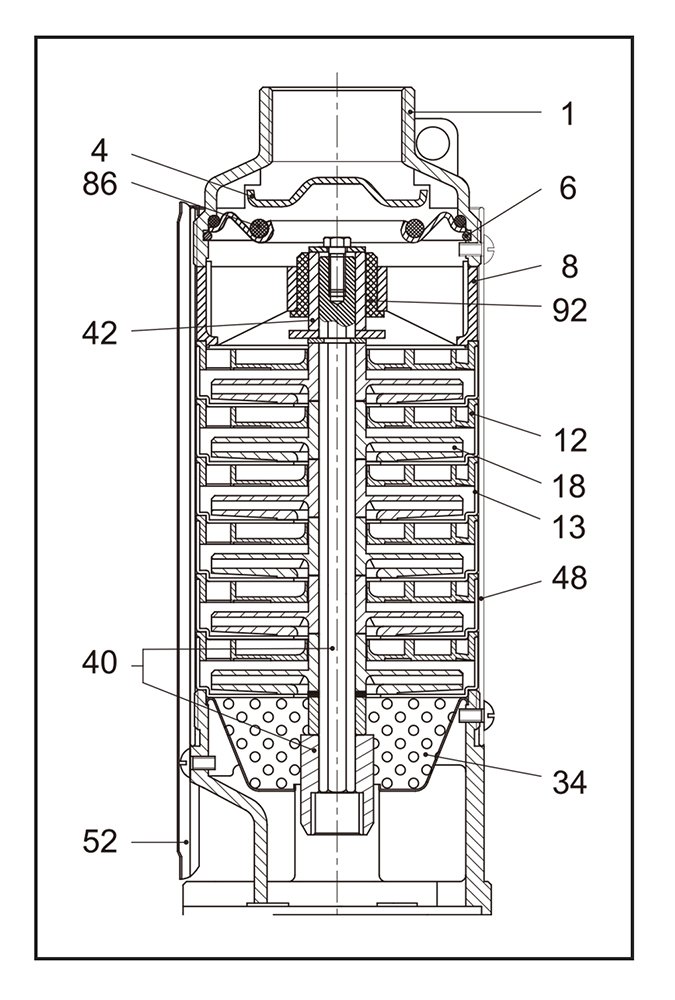

Part List and Materials
| No. | Part Name | Materials |
| 1 | Discharge Head | AISI 304 |
| 4 | Check Valve Cone | AISI 304 |
| 6 | Check Valve Retaining Ring | AISI 304 |
| 8 | Bearing Spider | Glass Filled Polycarbonate |
| 12 | Diffuser | Glass Filled Polycarbonate |
| 13 | Bowl | AISI 304 |
| 18 | Impeller | Noryl |
| 34 | Strainer | AISI 304 |
| 40 | Pump Shaft / Coupling | AISI 304 |
| 42 | Shaft Sleeve | AISI 304 or Noryl |
| 48 | Pump Casing | AISI 304 |
| 52 | Cable Guard | AISI 304 |
| 86 | O-Ring | NBR |
| 92 | Bearing | Polyacetal |
