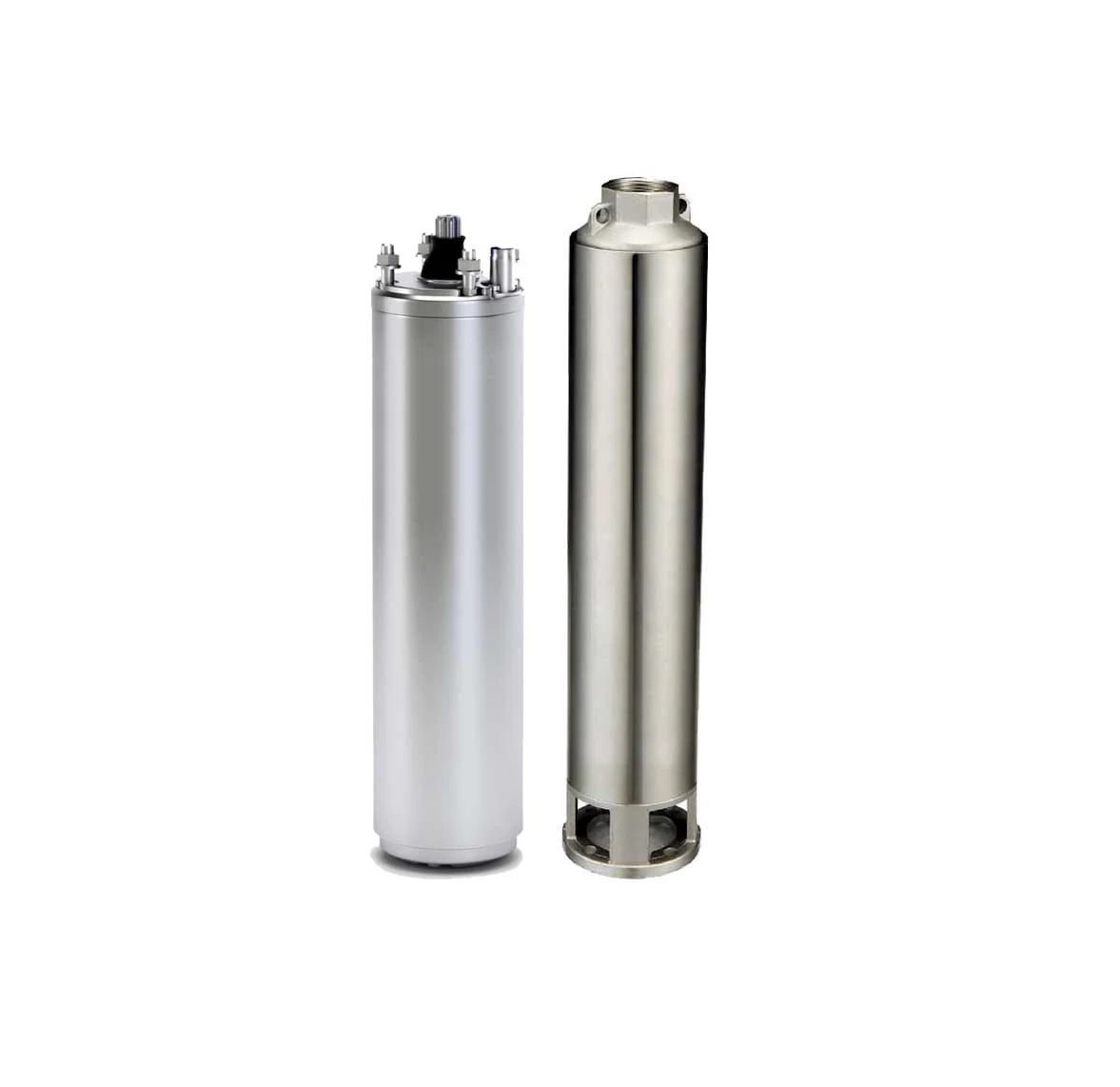

4 inch Submersible Pump and Motor pump supermarket water pump supplier in usa 2 1

0.5HP SUBMERSIBLE 230V – 3P MOTOR 13GPM DEEP WELL WATER PUMP – 4″ – 300ft Motor with Splice kit

$721.26

Pump Specifications

Maximum Head: 300 ft
Maximum Flow: 13 GPM
Discharge Size: 1 1/4″
Power: 0.5 HP
Voltage: 230V, 3-Phase
Pump Material: Noryl
Pump Model: GST 07-10

HP	0.5
Pump Diameter	4”

Estimated delivery dates: July 17th - July 21st

SKU: 7060168S Categories: Products, Submersible Pumps, Water Pumps

Description

Model	Pump	GST 07-10
Model	Motor	4CS2906
Brand		Gol Pumps
Manufacturer’s Warranty		1 years Limited Warranty
P2	kW	0.37
P2	HP	0.5
Service Factor		1.6
Material	Pump	Noryl
Material	Motor	Noryl
Voltage – Phase		230V – Three Phase
Wire		–
In	A	2.4
Imax	A	2.8
Istart	A	15
PF (%)	Allowable Load	0.57
PF (%)	Overload Factor	0.71
Efficiency (%)	Allowable Load	67.7
Efficiency (%)	Overload Factor	72.6
R.P.M		3450
Thrust	N	2000
Capacitor	UF	No
Cable	AWG	14
Cable	Length (ft.)	3.9
Production Country		Taiwan

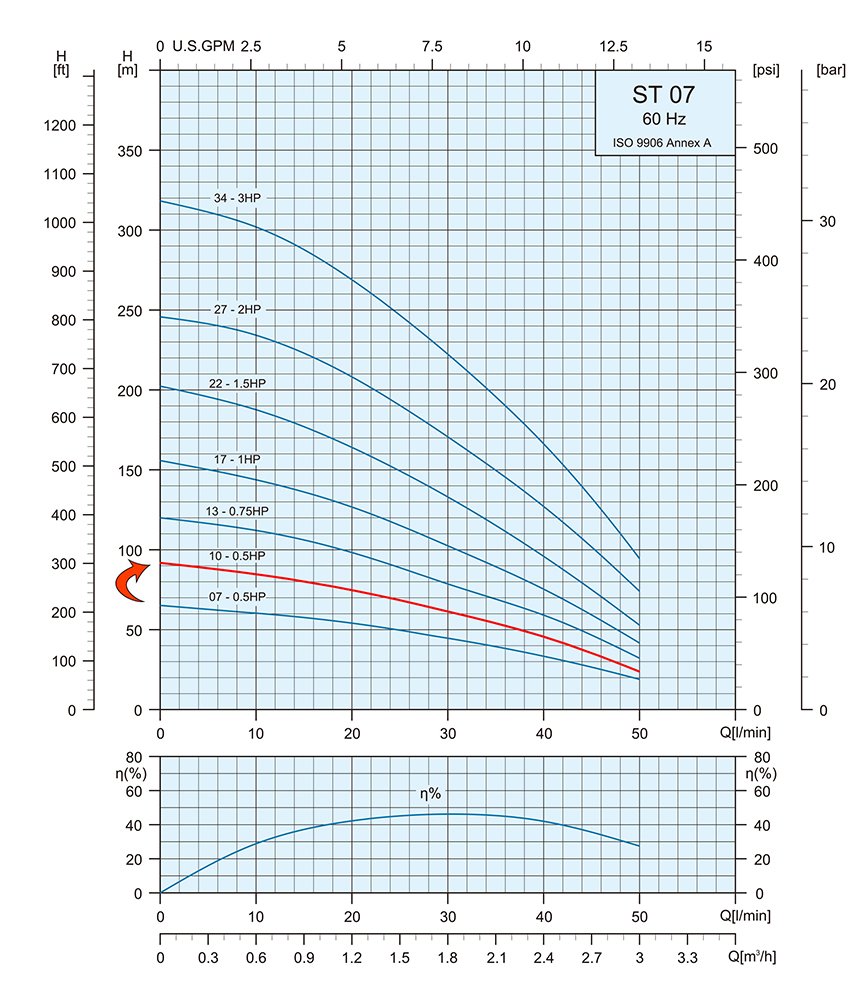

Performance Curves

ST 07 10

Pump Model	Motor		Q Capacity 3500RPM
	kW	HP	Gal/Min	0	4	5.3	6.6	7.9	9.2	10.6	13.2
GST 07-10	0.37	0.5	Head (ft.)	301.8	262.5	246.1	223.1	203.4	177.2	154.2	78.7

Dimensions and Weights

Dimensions Submersible Pumps ST5 7 10 13 18 25 35 40 55 60 80 135 1

Outlet	Motor Dia.	Dimensions (inch)				Weight (lb)
		A	B	C	D	Pump	Motor	Pump + Motor
NPT 1 1/4″	4″	13″	1 1/4″	3.9″	22.8″	7.3	19.4	26.7

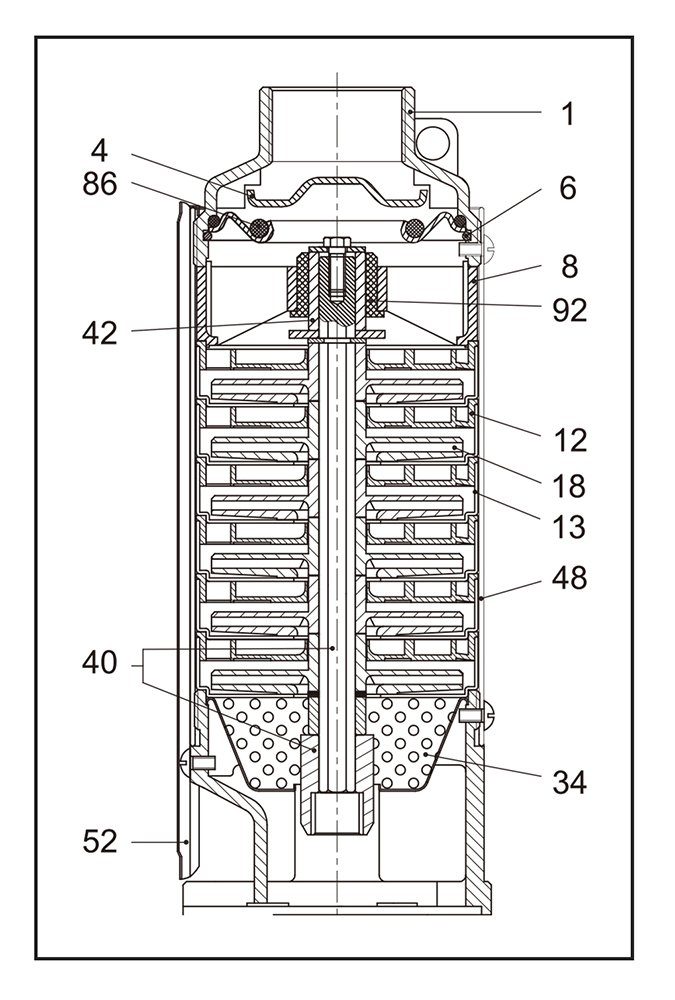

Part List and Materials

Parts List Submersible Pumps 4in 1

No.	Part Name	Materials
1	Discharge Head	AISI 304
4	Check Valve Cone	AISI 304
6	Check Valve Retaining Ring	AISI 304
8	Bearing Spider	Glass Filled Polycarbonate
12	Diffuser	Glass Filled Polycarbonate
13	Bowl	AISI 304
18	Impeller	Noryl
34	Strainer	AISI 304
40	Pump Shaft / Coupling	AISI 304
42	Shaft Sleeve	AISI 304 or Noryl
48	Pump Casing	AISI 304
52	Cable Guard	AISI 304
86	O-Ring	NBR
92	Bearing	Polyacetal
