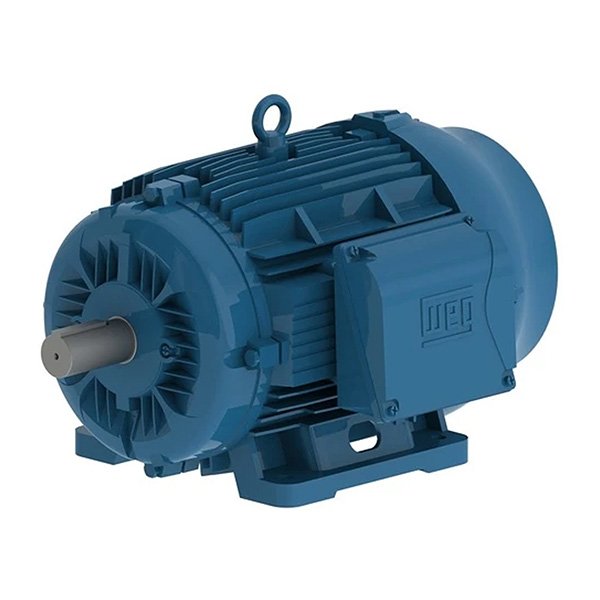

WEG W22 Tru-Metric IE3 – 460//380-415V, 25HP, 1200RPM, 3Ph, Model 01812ET3Y200L-W22
$5,324.99
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460//380-415 V |
| Number of poles | 6 |
| Degree of Protection | IP55 |
| Synchronous speed | 1200 rpm |
| Output rating | 25 HP |
| Mounting | Foot-mounted |
| Flange | Without |
| Mounting | B3L(E) |
| Terminal box¹ | Right position |
| Enclosure | IC411 – TEFC |
| Brand |
WEG |
|---|
Out of stock
Description
Technical Data
| Frame | 200L |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 979 rpm |
| Slip | 2.10 % |
| Rated voltage | 380 V |
| Rated current | 37.2 A |
| L. R. Amperes | 208 A |
| LRC | 5.6 |
| No load current | 14.6 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 240 % |
| Locked rotor time | 34s (cold) 19s (hot) |
| Moment of inertia (J) | 9.16 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 516 lb |
