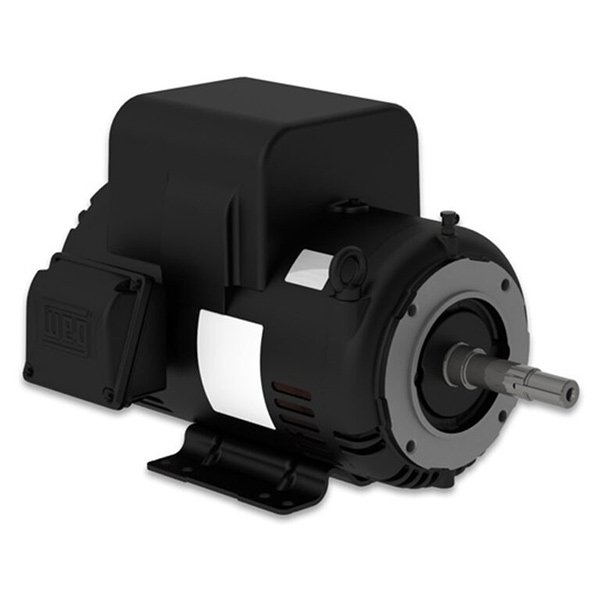

WEG Rolled Steel JM Pump , 5HP, 115/208-230V , 1Ph, 3600RPM, IC01 , ODP , Foot-mounted, Model 00536OS1B184JM-S
$1,165.99
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 V |
| Number of poles | 2 |
| Synchronous speed | 3600 rpm |
| Output rating | 5 HP |
| Mounting | Foot-mounted |
| Flange | C |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC01 – ODP |
| Brand |
WEG |
|---|---|
| HP |
5 |
Estimated delivery dates: July 22nd - July 24th
Description
Technical Data
| Frame | 182/4JM |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3500 rpm |
| Slip | 2.78 % |
| Rated voltage | 115/208-230 V |
| Rated current | 39.5/22.0-19.7 A |
| L. R. Amperes | 265/147-132 A |
| LRC | 6.7x(Code G) |
| No load current | 10.4/3.00-5.20 A |
| Rated torque | 7.50 ft.lb |
| Locked rotor torque | 175 % |
| Breakdown torque | 250 % |
| Locked rotor time | 16s (cold) 9s (hot) |
| Moment of inertia (J) | 0.1566 sq.ft.lb |
| Design | L |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 81.6 lb |
