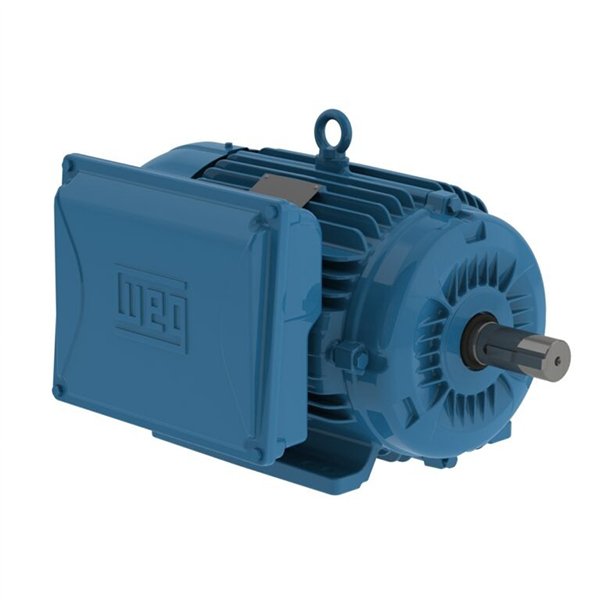

WEG Motor W22 , 14HP, 230V , 1Ph, 60 Hz, 1730RPM, TEFC, Foot-mounted, Model 01418ES1D215TZ-W22
$1,907.99
High starting torque.
Suitable for domestic and rural power supply conditions.
Adaptable design suitable for a variety of applications and needs.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 14 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC411 – TEFC |
| Brand |
WEG |
|---|---|
| HP |
14 |
Estimated delivery dates: July 22nd - July 24th
Description
Technical Data
| Brand | WEG |
|---|---|
| Frame | 215TZ |
| Output | 14 HP (10.3 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1730 rpm |
| Slip (%) | 3.89 |
| Rated Voltage (V) | 230 |
| Rated Current (A) | 60.7 |
| L. R. Amperes (A) | 443 |
| LRC (A) | 7.3x (Code J) |
| No load Current (A) | 28.0 |
| Rated Torque (ft.lb) | 42.5 |
| Locked Rotor Torque (%) | 240 |
| Breakdown Torque (%) | 250 |
| Locked Rotor Time | 10s (cold) 6s (hot) |
| Moment of Inertia (J) | 1.29 sq.ft.lb |
| Insulation Class | H |
| Service Factor | 1.07 |
| Temperature Rise | 125 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | – |
| Approx. Weight (lb) | 220 |
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 75.0 | 79.0 | 82.0 |
Power Factor
| 50% | 75% | 100% |
|---|---|---|
| 0.78 | 0.86 | 0.90 |
Features
| Frame Material | Aluminum |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 – C3) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
| Fan material | Plastic |
