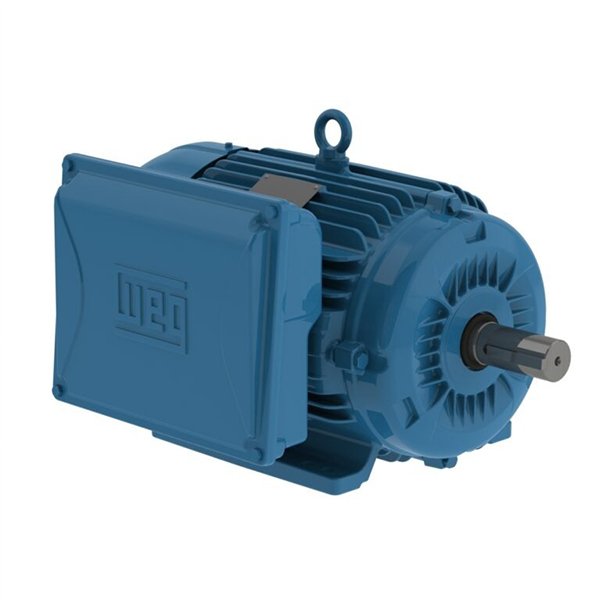

WEG Motor W22 , 5HP, 230V , 1Ph, 60 Hz, 1730RPM, TEFC, Foot-mounted, Model 00518ES1C184T-W22
$898.99
High starting torque.
Suitable for domestic and rural power supply conditions.
Adaptable design suitable for a variety of applications and needs.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 5 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC411 – TEFC |
| Brand |
WEG |
|---|---|
| HP |
5 |
Estimated delivery dates: July 22nd - July 24th
Description
Technical Data
| Brand | WEG |
|---|---|
| Frame | 182/4T |
| Output | 5 HP (3.7 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1730rpm |
| Slip (%) | 3.89 |
| Rated Voltage (V) | 208-230 |
| Rated Current (A) | 23.0-21.4 |
| L. R. Amperes (A) | 150-139 |
| LRC (A) | 6.5x (Code H) |
| No load Current (A) | 6.90-8.00 |
| Rated Torque (ft.lb) | 15.2 |
| Locked Rotor Torque (%) | 360 |
| Breakdown Torque (%) | 235 |
| Locked Rotor Time | 12s (cold) 7s (hot) |
| Moment of Inertia (J) | 0.4357 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 60.0 dB(A) |
| Approx. Weight (lb) | 119 |
Efficiency
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 70.8 | 72.5 | 78.5 | 80.0 |
Power Factor
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.59 | 0.89 | 0.93 | 0.94 |
Features
| Frame Material | Aluminum |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 – C3) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
| Fan material | Plastic |
