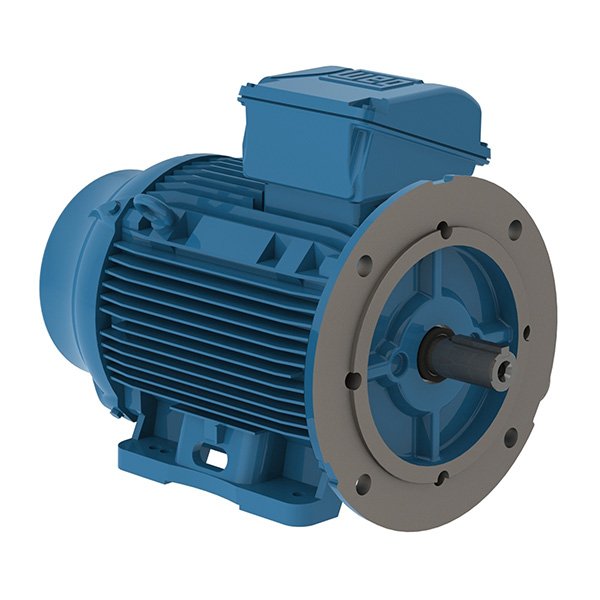

WEG Multimounting IEC Motor – 5.5HP, 230/460V – 3Ph, 3515RPM, Model Z00436ET3F123021
$796.99
Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3515 rpm |
| Output rating | 4 HP |
| Flange | FF |
| Mounting | B35L (E) |
| Terminal box | Top |
| Enclosure | IC411 – TEFC |
| Brand | WEG |
|---|---|
| Motor Power (HP) | 5.5 HP |
| Voltage (V) | 220/230V, 440/460/480V |
| Phase | Three Phase |
| Motor Speed (RPM) | 3600 RPM |
| Mounting | B35L(E) |
Technical Data
| Brand | WEG |
|---|---|
| Frame | 112M |
| Output | 5.5 HP (4 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3515 rpm |
| Slip (%) | 2.36 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 7.83/6.67 |
| L. R. Amperes (A) | 60.3/63.4 |
| LRC (A) | 9.5Code M |
| No load Current (A) | 2.80/2.90 |
| Rated Torque (ft.lb) | 8.22 Nm |
| Locked Rotor Torque (%) | 280 |
| Breakdown Torque (%) | 440 |
| Locked Rotor Time | 28s (cold) 0s (hot) |
| Moment of Inertia (J) | 0.1898 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service Factor | 1.25 |
| Temperature Rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | B35L(E) |
| Rotation | Both (CW and CCW) |
| Noise Level | 64.0 dB(A) |
| Approx. Weight (lb) | 86.3 lb |
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 88.0 | 88.2 | 88.2 |
Power Factor
| 50% | 75% | 100% |
|---|---|---|
| 0.73 | 0.83 | 0.88 |
Estimated Delivery: 3-5 Business Days
If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $120 Liftgate service fee .
For all products over 100 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 100 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
