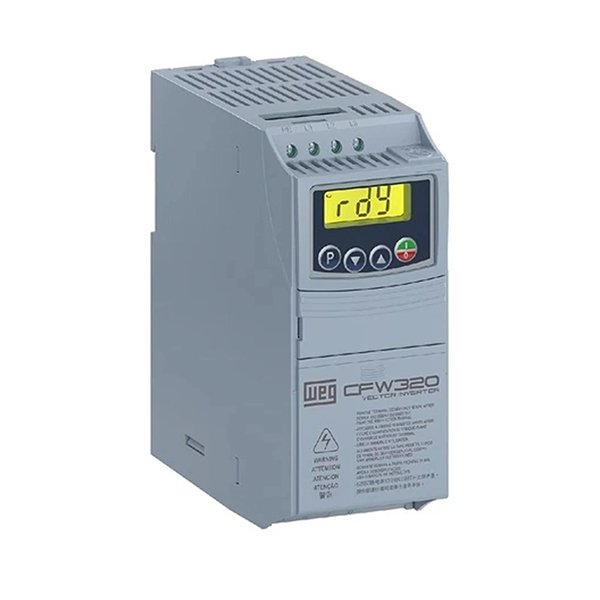

WEG DRIVE , 200-240V, 1Ph, IP20 Model CFW320A07P3S2NB20
$328.99
The CFW320 variable speed drive is a high-performance VSD for three-phase induction motors, ideal for applications on machines or equipment that require precise control and easy operation. It features compact size, contactor-style electrical installation, selectable WEG vector control (VVW) or scalar control (V/F), built-in operating interface (HMI), Soft PLC, free WPS programming software and plug-in accessories that may be added to provide extended functionalities, making it a flexible solution of excellent cost effectiveness.
| Brand |
WEG |
|---|
Product features
| Power supply | 200-240 V |
|---|---|
| Input phases | Single-phase |
| Rated current (HD) | 7.3 A |
| Enclosure | IP20 |
| Dynamic braking | Standard without braking |
Main Features
- Rated output current from 1.1 to 15.2 A, (0,25 HP / 0,18 kW to 10 HP / 7,5 kW) 100-127 V, 200-240 V, 380-480 V or 280 – 650 Vdc;
- 4 (PNP or NPN) digital inputs, 1 relay output 0.5 A / 250 V ac, 1 analog input 0-10 V dc / 4-20 mA;
- 3C2 coating class (IEC 60721-3-3) on the internal circuits;
- Easy installation;
- Flash Memory Module (accessory);
- Built-in operating interface (HMI);
- Vector (VVW) or scalar (V/F) control modes;
- Plug-in modules: RS485, RS232, CANopen, Profibus-DP, Ethernet, Potentiometer, USB, Encoder, Infrared, Expansion of inputs and outputs, RFI filter.
Applications
- Machines and Equipment
- Opening/Closing of Gates
- Single-Phase Power Supply
- Fans / Exhausters
- Centrifugal pumps
- Granulators / Conveyor
- Belts / Palletizers
- Stirrers / Mixers
- Process dosing pumps
- Stores or Homes
Data Sheet
| Control method – induction motor | V/f (escalar) and VVW |
|---|---|
| Rated efficiency | ≥ 97% |
| Link Inductor | No |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| Soft PLC | Yes, incorporated |
| Temperature | 0 °C – 50 °C |
| USB port | Yes, by CFW320-CUSB |
| Memory card | Not included in the product |
| I/O standard | 4 x DI; 1 relé NA/NF x DO; 1 x AI; Somonte com plug-in x AO. |
| Display | Numeric LCD |
