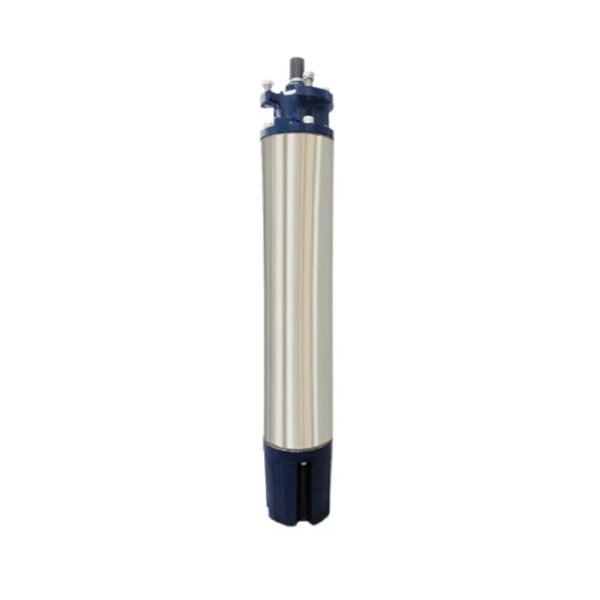

Gol Pumps 6″ Submersible Motor – 20HP, 230V-3PH, Cast Iron
$2,941.99
Gol Pumps Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.
Product Advantages
- Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
- High efficiency provides operation cost savings.
- Thrust Pad.
- Copper wiring.
- Pressure equalizing diaphragm.
- Removable lead connector.
- Standard NEMA mounting dimensions.
- Motor with carbon and ceramic Mechanical seal.
| Brand |
GPT CO |
|---|
Description
Description
Technical Specifications
- Max. Immersion depth: 984 Ft.
- Protection: IP68.
- Nos. of start per hour: max 20 at regular intervals.
- Insulation: Class F.
- Max temp. 30° with water cooling flow min. 0.16 m/s.
- Standard installation position: vertical and horizontal.
- Starting method: D.O.L.
Technical Data
| Brand | Gol Pumps | |
| Model | 6CF7146D | |
| Material | Cast Iron | |
| P2 | HP | 20 |
| KW | 15 | |
| S.F | 1.15 | |
| Voltage (V) | 230 – 3 Phase | |
| I n. (A) | 54 | |
| I max. (A) | 63.5 | |
| I start (A) | 213 | |
| PF (%) | Allowable load | 0.86 |
| Overload factor | 0.84 | |
| Efficiency (%) | Allowable load | 79.1 |
| Overload factor | 76.1 | |
| RPM | 3450 | |
| Thrust (N) | 15500 N | |
| Cable | Ft. | 13.1 |
| AWG | 8 | |
| Weight (Lb.) | 128.8 | |
