SPERONI CAM302 SHALLOW WELL JET PUMP – 3HP – SINGLE PHASE-3900 GPH
$1,004.87

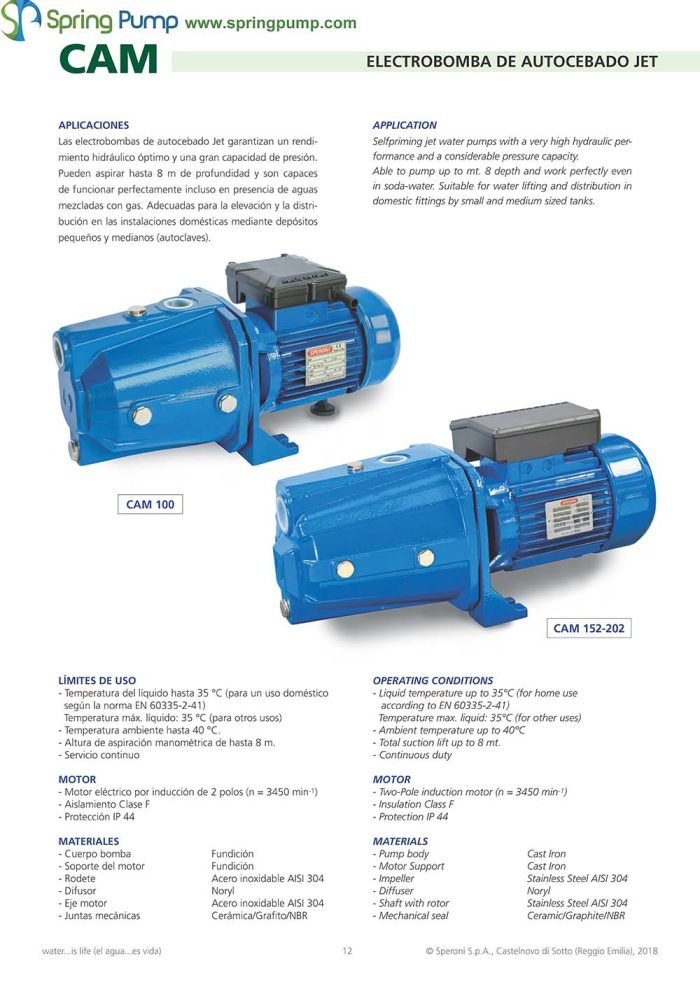

Selfpriming shallow well jet pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to 26 ft. depth and work perfectly even in soda water. Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Brand: SPERONI
OPERATING CONDITIONS:
- – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- – Temperature max. liquid: 95°F (for other uses)
- – Ambient temperature up to 104°F
- – Total suction lift up to 26.2 ft.
DESCRIPTION
Application:
Self-priming shallow well jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to 26 ft. depth and work perfectly even in soda water. Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Brand: SPERONI
MADE IN ITALY
OPERATING CONDITIONS:
- – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- – Temperature max. liquid: 95°F (for other uses)
- – Ambient temperature up to 104°F
- – Total suction lift up to 26.2 ft.
MOTOR
- – Single-phase 220V-60Hz
- – Insulation Class F
- – Protection IP 44
MATERIALS
- – Pump body: Cast Iron
- – Motor Support: Cast Iron
- – Impeller: Stainless Steel 304
- – Diffuser: Noryl
- – Shaft with rotor: Stainless Steel 304
- – Mechanical seal: Ceramic/Graphite/NBR
| Flow (GPH) |
3900 |
|---|---|
| HP |
3 |
| Discharge Port (in.) |
1″ 1/4 |
| Suction Port (in.) |
1″ 1/2 |
| Brand |
SPERONI |
Description
Technical Specifications
| Model | CAM302 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Stainless Steel 304 |
| Port Size (in.) | 1-1/2″ and 1-1/4″ |
| Flow (GPH) | 3900 |
| HP
Kw |
3
2.2 |
| Volts
AMP |
220V – 1 Phase
13.5 |
| Max. Total Head (ft.) | 200 |
| Max. Suction Lift (ft.) | 22 |
| Max. PSI | 68 |
| Suction Port (in.) | 1-1/2 |
| Discharge Port (in.) | 1-1/4 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 22.4 x 9.3 x 10.8 |
| Product Weight (lbs.) | 69.44 |
