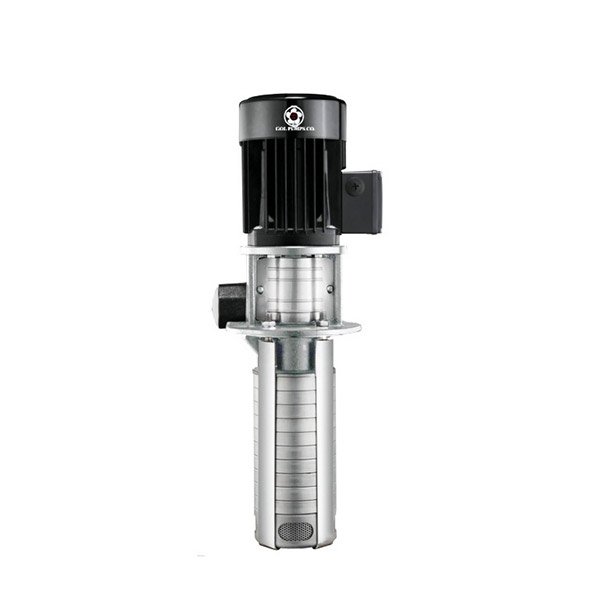

Immersible Coolant Vertical Multi-Stage Pump – 2700GPH, 3HP, 230/460V – 3PH, SBKI 5-8/8

SBKI pumps are vertical multistage centrifugal pumps especially designed for pumping of cooling lubricants for machine tools, and to be mounted on top of tanks with the pump stack immerged in the pumped liquid.

Applications

• Cooling units
• Grinding machines
• Machine centers
• Spark machine tools
• Filtering systems
• Milling machines
• Boring machines
• Drilling machines
• Filtering systems
• Swarf conveyors
• Industrial washing machines

Features

• Compact design
• High Efficiency Reliability
• Easy installation
• Flexible installation length
• Wide performance range
• Reliability
• Service-friendly

Motor

• SBK is fitted with totally enclosed fan-cooled, 2-pole standard motor
• Rated Speed: 3450rpm (60Hz)
• Enclosure Class: IP 55
• Insulation Class: F
• Max. Ambient Temperature: +122°F

Pumped Liquids

• Do not pump the explosive or aggressive liquids and the liquids should be free of fibers. The SBK pumps have the strainer in the suction chamber with inlet to prevent large particles from entering and damaging the pump.
• In order to avoid the larger particles block the filters, we suggest to filtrate elementarily before pumping the liquids with particles.

Mechanical Seals

• Standard Cartridge type mechanical seal made of Tungsten carbide / Tungsten carbide Viton.
• The cartridge type mechanical seal can be replaced in minutes without special tools and without dismantling the pump.
