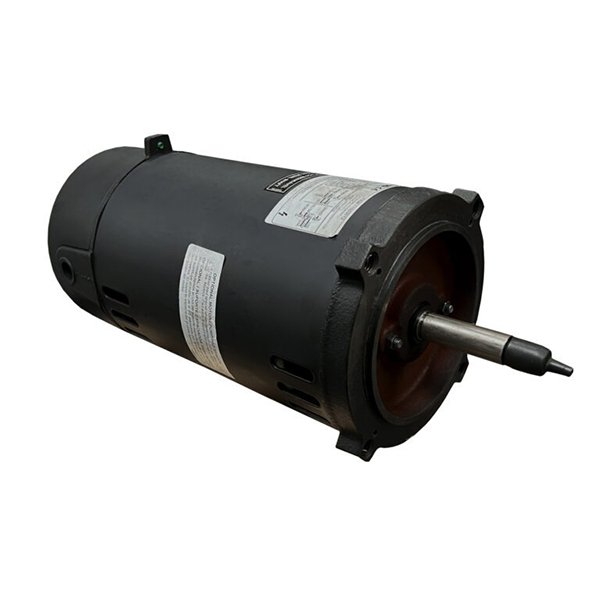

WEG Motor Pool Spa Pump Start Capacitor , 2HP, 230V , 1Ph, 60Hz, 3460RPM, IC01-ODP, Footless, Model: PCJ120
$370.99
The pool spa motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The ODP Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230V |
| Number of poles | 2 |
| Degree of Protection | IP21 |
| Synchronous speed | 3600 rpm |
| Output rating | 2 HP |
| Flange | FC 149 |
| Mounting | Footless |
| Terminal box | Without |
| Enclosure | IC01 – ODP |
| Brand |
WEG |
|---|---|
| HP |
2 |
Technical Data
| Brand | WEG |
|---|---|
| Frame | M56J |
| Output | 2 HP (1.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3460 rpm |
| Slip (%) | 3.89 |
| Rated Voltage (V) | 230 |
| Rated Current (A) | 9.30 |
| L. R. Amperes (A) | 54.9 |
| LRC (A) | 5.9x (Code H) |
| No load Current (A) | 3.90 |
| Rated Torque (ft.lb) | 3.04 |
| Locked Rotor Torque (%) | 130 |
| Breakdown Torque (%) | 229 |
| Locked Rotor Time | 10s (cold) 6s (hot) |
| Moment of Inertia (J) | 0.0403 sq.ft.lb |
| Insulation Class | B |
| Service Factor | 1.10 |
| Temperature Rise | 70 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +50°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | CCW |
| Noise Level | 58.0 dB(A) |
| Approx. Weight (lb) | 31.8 |
Efficiency
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 65.6 | 68.0 | 74.0 | 76.6 |
Power Factor
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.52 | 0.80 | 0.88 | 0.91 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | AISI 316 Stainless Steel |
| Painting | Munsell N 1 – Matte 207N (ISO 12944 -C2) |
| Grounding Lugs | Single |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Automatic |
