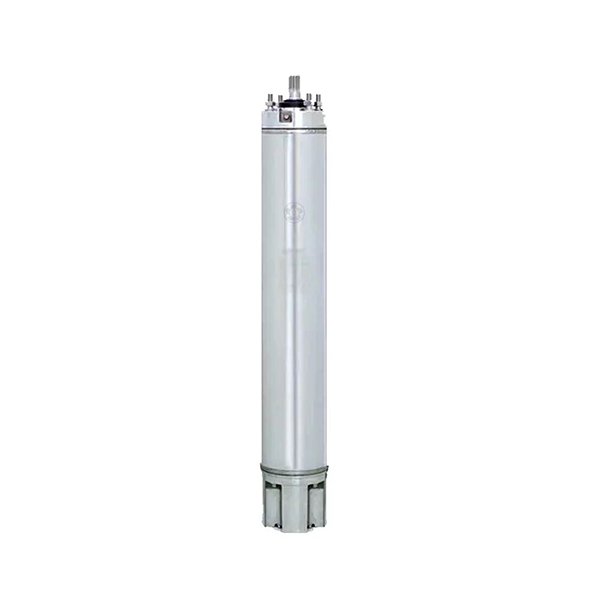

Gol Pumps 6″ Submersible Motor – 15HP, 460V-3PH, SS316
$4,184.60
Gol Pumps Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.
Product Advantages
- Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
- High efficiency provides operation cost savings.
- Thrust Pad.
- Copper wiring.
- Pressure equalizing diaphragm.
- Removable lead connector.
- Standard NEMA mounting dimensions.
- Motor with carbon and ceramic Mechanical seal.
| Brand |
GPT CO |
|---|
Description
Description
Technical Specifications
- Max. Immersion depth: 984 Ft.
- Protection: IP68.
- Nos. of start per hour: max 20 at regular intervals.
- Insulation: Class F.
- Max temp. 30° with water cooling flow min. 0.16 m/s.
- Standard installation position: vertical and horizontal.
- Starting method: D.O.L.
Technical Data
| Brand | Gol Pumps | |
| Model | 6CF7336D | |
| Material | Stainless Steel 316 | |
| P2 | HP | 15 |
| KW | 11 | |
| S.F | 1.15 | |
| Voltage (V) | 460 – 3 Phase | |
| I n. (A) | 21.2 | |
| I max. (A) | 23.9 | |
| I start (A) | 67.2 | |
| PF (%) | Allowable load | 0.8 |
| Overload factor | 0.82 | |
| Efficiency (%) | Allowable load | 81.2 |
| Overload factor | 80.8 | |
| RPM | 3450 | |
| Thrust (N) | 15500 N | |
| Cable | Ft. | 13.1 |
| AWG | 10 | |
| Weight (Lb.) | 117.6 | |
