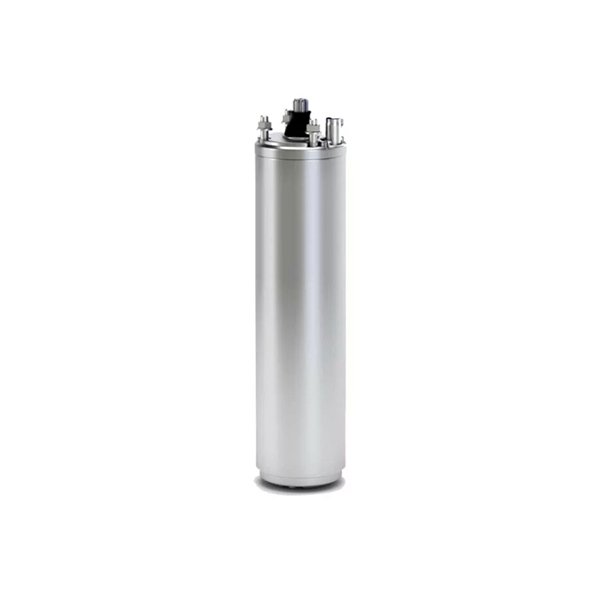

Gol Pumps 4″ Submersible Motor – 1HP, 230V-1PH, 2 Wire, SS304
$889.99
Gol Pumps Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.
Product Advantages
- Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
- High efficiency provides operation cost savings.
- Thrust pad.
- Copper wiring.
- Pressure equalizing diaphragm.
- Removable lead connector.
- Control boxes available for single phase motor.
- Standard NEMA mounting dimensions.
- Lightning arrester is available in option (Single phase).
| Brand |
GPT CO |
|---|
Description
Description
Technical Specifications
- Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
- Max. Immersion depth: 492 Ft.
- Protection: IP68.
- Nos. of start per hour: max 20 at regular intervals.
- Sand slinger and lip seal.
- Insulation: Class F.
- Rated ambient temperature: 30°C with min.
- Cooling flow 0.08 m/s of water flow speed.
- Standard installation position: vertical and horizontal.
Technical Data
| Brand | Gol Pumps | |
| Model | 4CF3526M | |
| Material | Stainless Steel 304 | |
| P2 | HP | 1 |
| KW | 0.75 | |
| S.F | 1.4 | |
| Voltage (V) | 230 – 1 Phase | |
| I n. (A) | 5.4 | |
| I max. (A) | 6.8 | |
| I start (A) | 24.2 | |
| PF (%) | Allowable load | 0.97 |
| Overload factor | 0.98 | |
| Efficiency (%) | Allowable load | 62.7 |
| Overload factor | 68.2 | |
| RPM | 3450 | |
| Thrust (N) | 3000 N | |
| Capacitor (UF) | 25UF 450V | |
| Cable | Ft. | 3.9 |
| AWG | 14 | |
| Weight (Lb.) | 25.4 | |
