Gol Pumps 2.5″ Thin Submersible Well Pump – 300Ft – 780 GPH – 3 Wire – 110/220V – 3/4HP
$484.99
This 2.5″ thin submersible well pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 300 feet of head and is a great fit for 3″ diameter wells.
- Water supply from wells and reservoirs

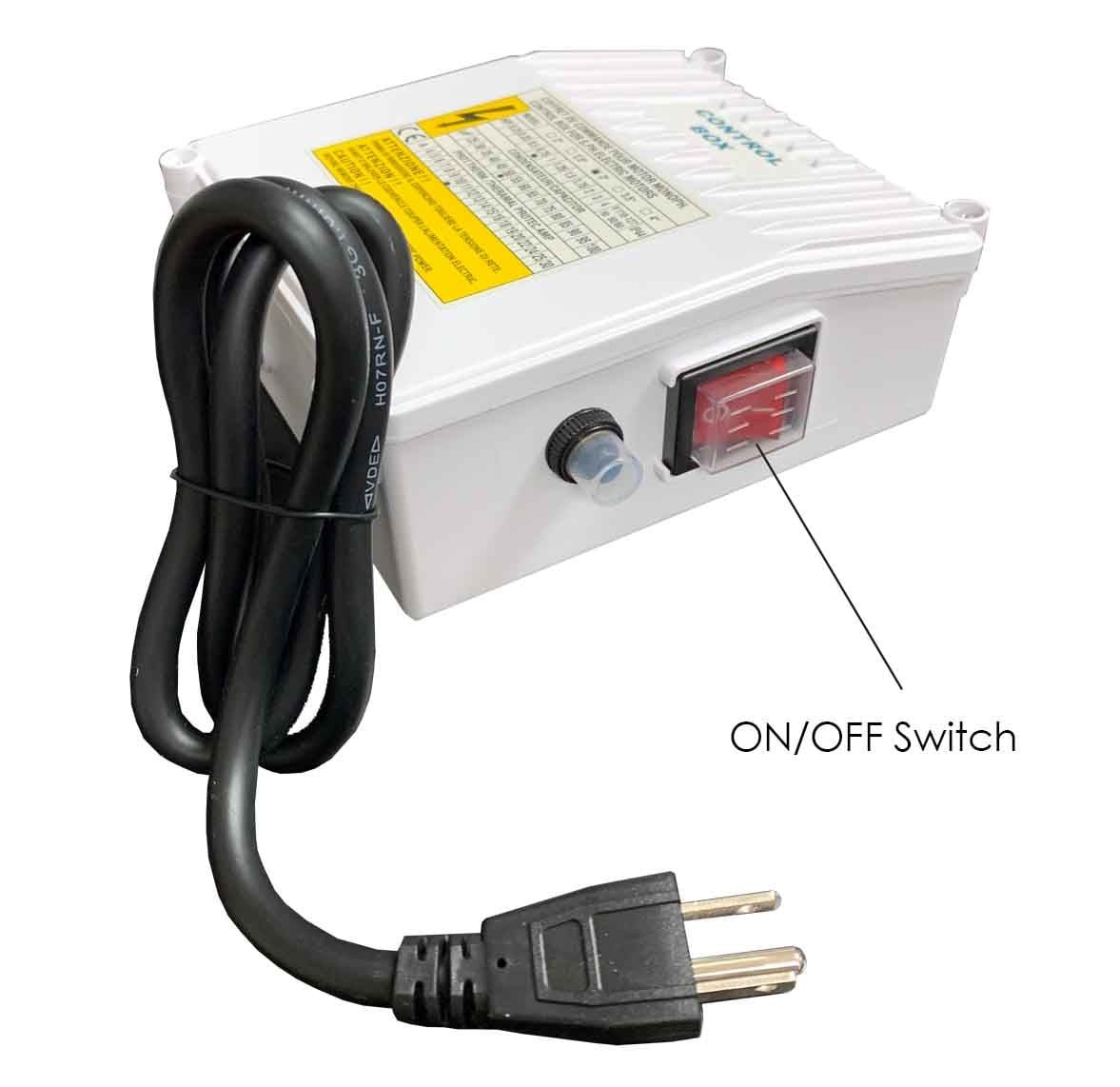

- Comes with control box
- Rewindable motor
Applications
- For water supply from wells or reservoirs
- For domestic use
- For civil and industrial applications
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to 95°F
- Maximum sand content : 0.25%
- Minimum well diameter : 2.5″
Motor and Pump
- Rewindable motor
- Single-phase:110V/60Hz or 220V/60Hz
- Equip with start control box
- Pumps are designed by casing stressed Curve tolerance according to ISO 9906
| Voltage |
110/115 volt ,220/230 volt |
|---|---|
| Brand |
GPT CO |
Description
Description
Technical Specifications
| Pump Type | Thin Submersible Pump |
| Pump Brand | GOL Pumps |
| Pump Model | 2.5SDM2/22 |
| Warranty | 1 Year |
| Maximum Head | 300ft |
| Minimum Head | 46ft |
| Maximum Flow | 780 GPH |
| Minimum Fluid Temperature | 50°F |
| Maximum Fluid Temperature | 95°F |
| Maximum Ambient Temperature | 104°F |
| Discharge | 1″ NPT |
| Pump Material | Stainless Steel 304 |
| Pump Diameter | 2.5″ |
G 2.5″ SD

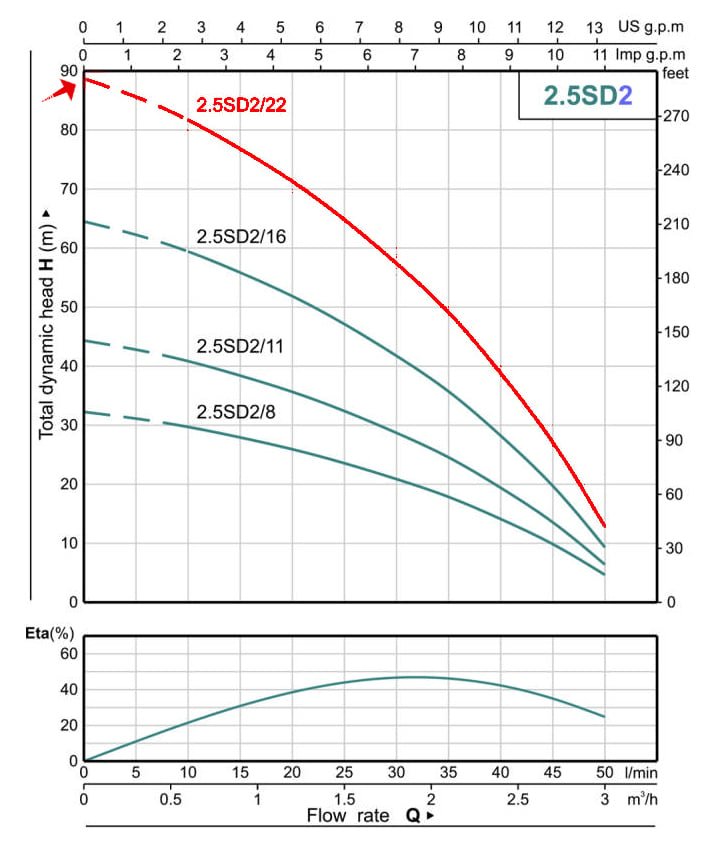

Performance Data
| MODEL | P2 | DELIVERY N = 3450 1/min | |||||||||||||
| 1~
110V/220V |
KW | HP | Q | m3/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | ||||
| G 2.5SDM2/11 | 0.25 | 0.33 | H (m) | 45 | 43 | 41 | 38 | 35 | 32 | 29 | 25 | 19 | 12 | 5 | |
Dimension and Weight
| MODEL | DN | DIMENSION(inch) | WEIGHT(lbs) | PUMP | |||||
| 1~
110V/220V |
P | M | T | P | M | T | D1 | D2 | |
| G 2.5SDM2/11 | 1″ | 18.2 | 22.7 | 41 | 7 | 17 | 23 | 66 | 65 |

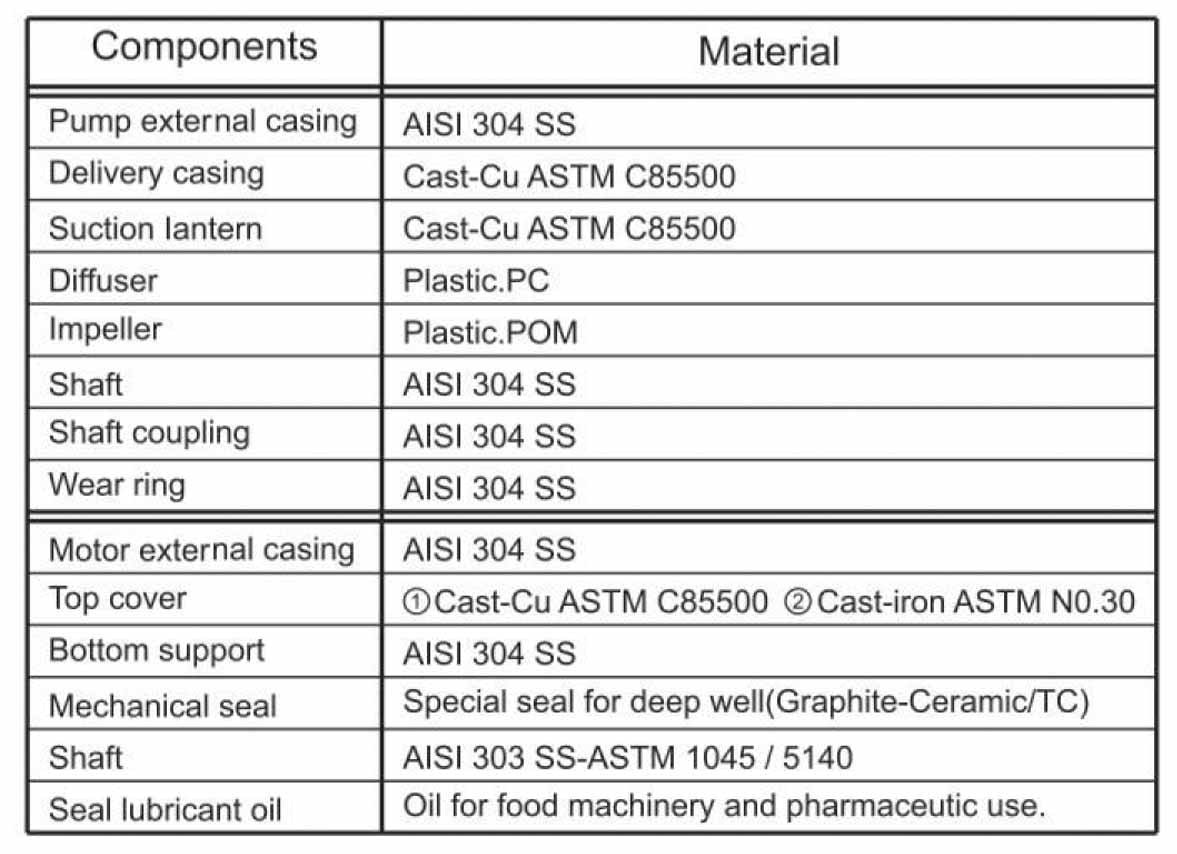

| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 303 SS-ASTM 1045/5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
