Magnetic Drive Pump For Acidic, Alkaline And Chemical Liquids – 115V – GMD1-20RZ
$187.68
Description

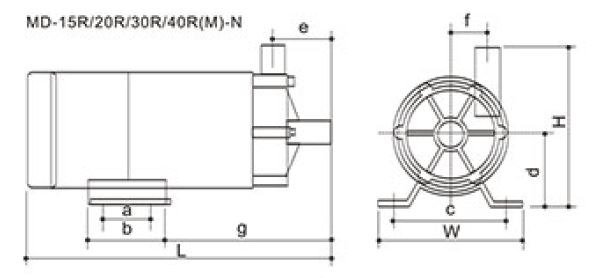

| Model | W | H | L | a | b | c | d | e | f | g |
| GMD-20RZ | 120 | 106 | 203 | 40 | 64 | 100 | 60 | 33 | 28.5 | 88 |
GMD1-20RZ
| Model | Tube Interface | Spiral Interface | Max. Capacity
gpm |
Max. head
ft |
Standard outlet
ft-gpm |
Temperature
°F |
Specific weight | Motor | ||||
| Inlet | Outlet | Outlet-Inlet | Tube | Input w | Outlet w | Phase | ||||||
| GMD-20RZ | 0.7 | 0.7 | G 3/4 | 0.5 | 2.6 | 16 | 13-1.6 | 0-176 | 1.1 | 2 | 40 | 1 |
