7.5HP SUBMERSIBLE 460V – 3P MOTOR 47GPM DEEP WELL WATER PUMP – 4″ – 1010ft Motor with Splice kit
$2,350.75
Pump Specifications
- Maximum Head: 1010 ft
- Maximum Flow: 48GPM
- Discharge Size: 2″
- Power: 7.5 HP
- Voltage: 460V, 3-Phase
- Pump Material: Noryl
- Pump Model: GST 35-34
| Pump Diameter | 4” |
|---|---|
| HP | 7.5 |
Estimated delivery dates: August 27th - August 31st
Description
| Model | Pump | GST 35-34 |
| Motor | 4CS6396 | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 5.5 |
| HP | 7.5 | |
| Service Factor | 1.15 | |
| Material | Pump | Noryl |
| Motor | Noryl | |
| Voltage – Phase | 460V – Three Phase | |
| Wire | – | |
| In | A | 10.9 |
| Imax | A | 12.1 |
| Istart | A | 78.3 |
| PF (%) | Allowable Load | 0.79 |
| Overload Factor | 0.83 | |
| Efficiency (%) | Allowable Load | 79.1 |
| Overload Factor | 78.7 | |
| R.P.M | 3450 | |
| Thrust | N | 6000 |
| Capacitor | UF | No |
| Cable | AWG | 14 |
| Length (ft.) | 8.2 | |
| Production Country | Taiwan | |

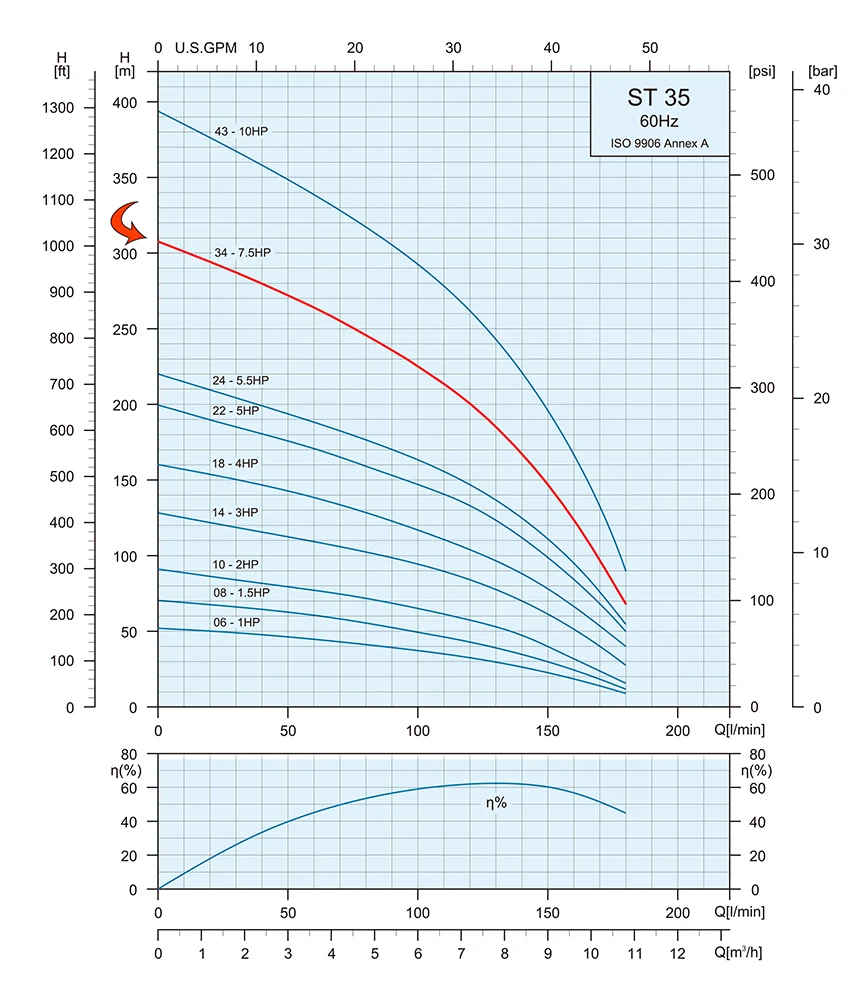

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | |||||||||||
| kW | HP | Gal/Min | 0 | 15.9 | 18.5 | 21.2 | 23.8 | 26.4 | 31.7 | 37 | 42.3 | 47.6 | |
| GST 35-34 | 5.5 | 7.5 | Head (ft.) | 1011 | 862.9 | 836.6 | 807.1 | 774.3 | 836.6 | 656.2 | 547.9 | 400.3 | 226.4 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | |||||
| A | B | C | D | Pump | Motor | Pump + Motor | ||
| NPT 2″ | 4″ | 52.2″ | 2″ | 3.9″ | 79.9″ | 27.7 | 64 | 91.7 |
Part List and Materials
| No. | Part Name | Materials |
| 1 | Discharge Head | AISI 304 |
| 4 | Check Valve Cone | AISI 304 |
| 6 | Check Valve Retaining Ring | AISI 304 |
| 8 | Bearing Spider | Glass Filled Polycarbonate |
| 12 | Diffuser | Glass Filled Polycarbonate |
| 13 | Bowl | AISI 304 |
| 18 | Impeller | Noryl |
| 34 | Strainer | AISI 304 |
| 40 | Pump Shaft / Coupling | AISI 304 |
| 42 | Shaft Sleeve | AISI 304 or Noryl |
| 48 | Pump Casing | AISI 304 |
| 52 | Cable Guard | AISI 304 |
| 86 | O-Ring | NBR |
| 92 | Bearing | Polyacetal |
