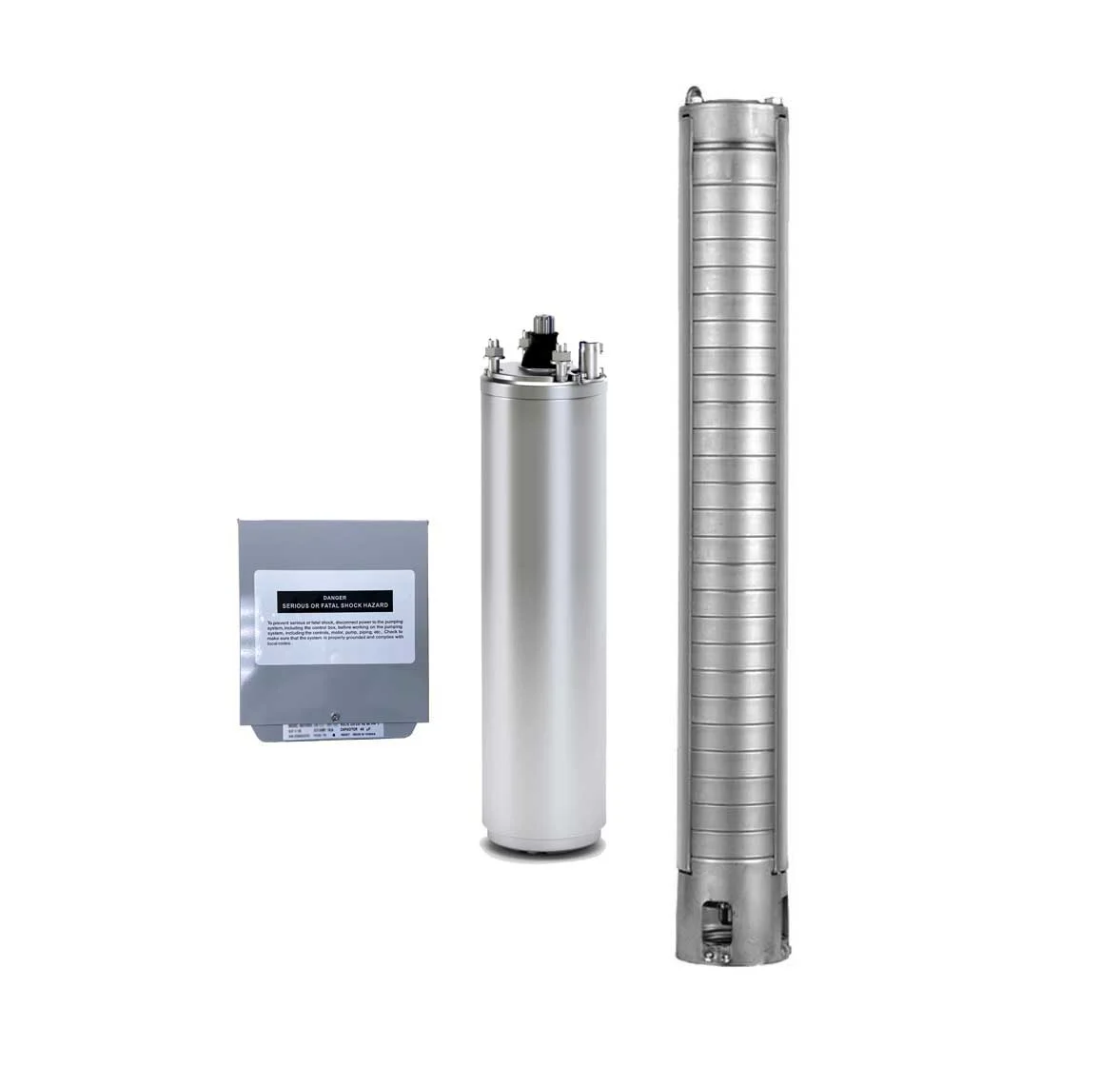

5 HP Submersible 3 Wire Motor 1920 GPH Deep Well Water Pump – 230V – 1P – SS316 – 4″ – 640ft Motor with Splice kit
$3,682.69
Pump Specifications
- Maximum Head: 640 ft
- Maximum Flow: 32 GPM
- Discharge Size: 1 ½” NPT
- Power: 5 HP
- Voltage: 230V, 3-Phase
- Pump Material: Stainless Steel 316
- Pump Model: GSP 25-21
| Pump Diameter | 4” |
|---|---|
| HP | 5 |
Estimated delivery dates: September 4th - September 8th
Description
| Model | Pump | GSP 25-21 |
| Motor | 4CN6566D | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 3.7 |
| HP | 5 | |
| Service Factor | 1.15 | |
| Material | Pump | Stainless Steel 316 |
| Motor | Stainless Steel 316 | |
| Voltage – Phase | 230V – Single Phase | |
| Wire | 3 | |
| In | A | 22.9 |
| Imax | A | 26.2 |
| Istart | A | 106.7 |
| PF (%) | Allowable Load | 0.99 |
| Overload Factor | 0.99 | |
| Efficiency (%) | Allowable Load | 69.9 |
| Overload Factor | 69.3 | |
| R.P.M | 3450 | |
| Thrust | N | 6000 |
| Capacitor | UF | No |
| Cable | AWG | 14 |
| Length (ft.) | 3.9 | |
| Production Country | Taiwan | |

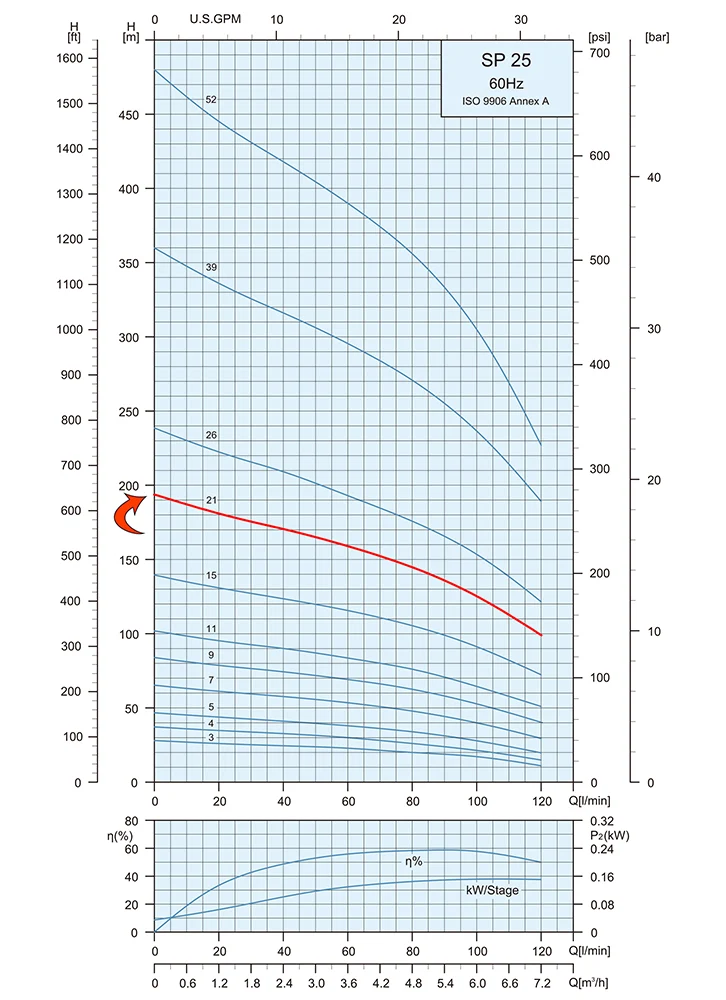

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | ||||||||
| kW | HP | Gal/Min | 0 | 15.9 | 18.5 | 21.1 | 23.8 | 26.4 | 31.7 | |
| GSP 25-21 | 3.7 | 5 | Head (ft.) | 636.5 | 849.7 | 498.7 | 475.7 | 446.2 | 410.1 | 324.8 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | ||||
| A | B | C | Pump | Motor | Pump + Motor | ||
| NPT 1 1/2″ | 4″ | 23.9″ | 40.6″ | 3.9″ | 11.7 | 29.7 | 41.4 |

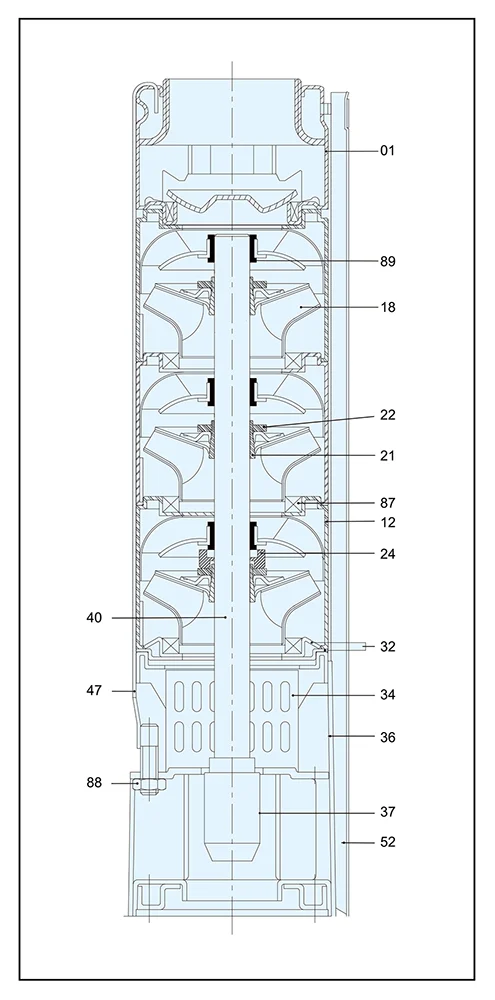

Part List and Materials
| No. | Part Name | Materials |
| 01 | Discharge | AISI 316 |
| 12 | Diffuser | AISI 316 |
| 18 | Impeller | AISI 316 |
| 21 | Split Cone | AISI 316 |
| 22 | Split Cone Nut | AISI 316 |
| 24 | Stop Ring | Carbon + Graphite + PTFE |
| 32 | Neck Ring Retainer | AISI 316 |
| 34 | Strainer | AISI 316 |
| 36 | Suction Interconnector | AISI 316 |
| 37 | Coupling | AISI 316 |
| 40 | Pump Shaft | AISI 316 |
| 47 | Strap | AISI 316 |
| 52 | Cable Guard | AISI 316 |
| 87 | Neck Ring | AISI 316 + HNBR |
| 88 | Nut | AISI 316 |
| 89 | Bearing | HNBR |
