3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit

$1,103.95

Pump Specifications

Maximum Head: 420 ft
Maximum Flow: 47 GPM
Discharge Size: 2″
Power: 3 HP
Voltage: 230V, 3-Phase
Pump Material: Noryl
Pump Model: GST 35-14

HP	3
Pump Diameter	4”

Estimated delivery dates: July 22nd - July 24th

SKU: 7060116S Categories: Products, Submersible Pumps, Water Pumps

Description

Model	Pump	GST 35-14
Model	Motor	4CS4956
Brand		Gol Pumps
Manufacturer’s Warranty		1 years Limited Warranty
P2	kW	2.2
P2	HP	3
Service Factor		1.15
Material	Pump	Noryl
Material	Motor	Noryl
Voltage – Phase		230V – Three Phase
Wire		–
In	A	9.8
Imax	A	10.6
Istart	A	56
PF (%)	Allowable Load	0.73
PF (%)	Overload Factor	0.77
Efficiency (%)	Allowable Load	77.1
Efficiency (%)	Overload Factor	77.2
R.P.M		3450
Thrust	N	4000
Capacitor	UF	No
Cable	AWG	14
Cable	Length (ft.)	8.2
Production Country		Taiwan

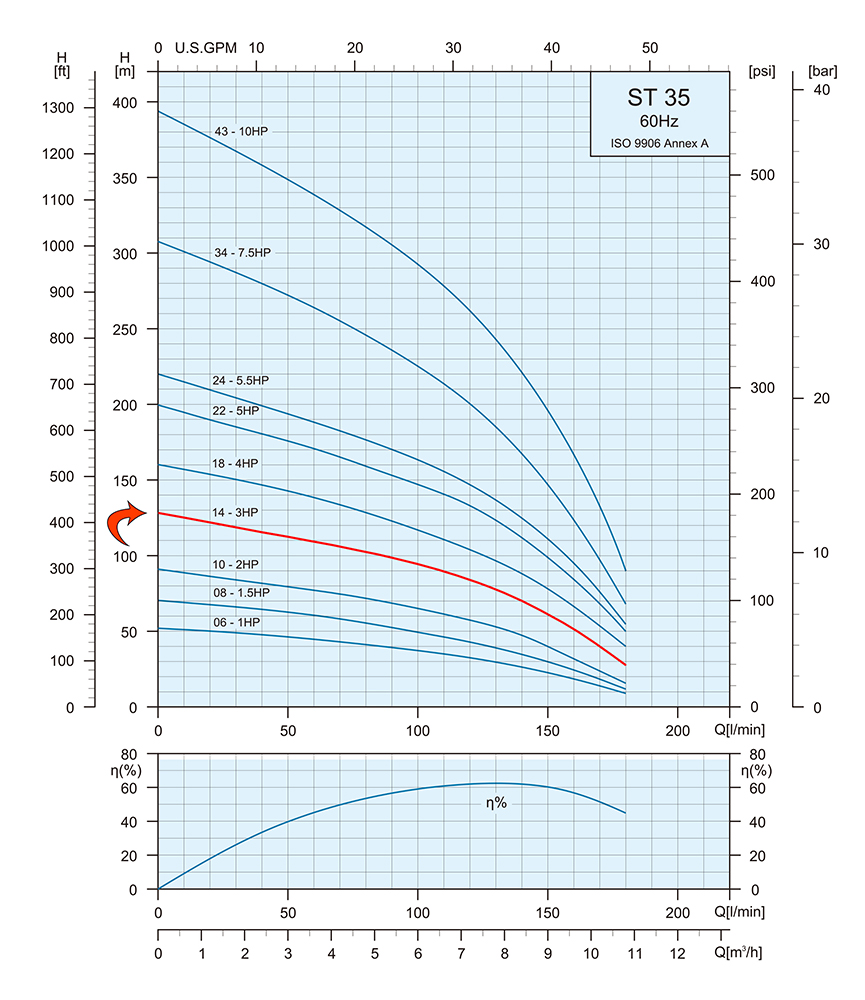

Performance Curves

ST 35 14

Pump Model	Motor		Q Capacity 3500RPM
Pump Model	kW	HP	Gal/Min	0	15.9	18.5	21.2	23.8	26.4	31.7	37	42.3	47.6
GST 35-14	2.2	3	Head (ft.)	420	357.6	347.8	334.6	324.8	308.4	272.3	229.7	167.3	95.1

Dimensions and Weights

Dimensions Submersible Pumps ST5 7 10 13 18 25 35 40 55 60 80 135 6 3

Outlet	Motor Dia.	Dimensions (inch)				Weight (lb)
		A	B	C	D	Pump	Motor	Pump + Motor
NPT 2″	4″	23.9″	2″	3.9″	39.5″	12.5	33.2	45.7

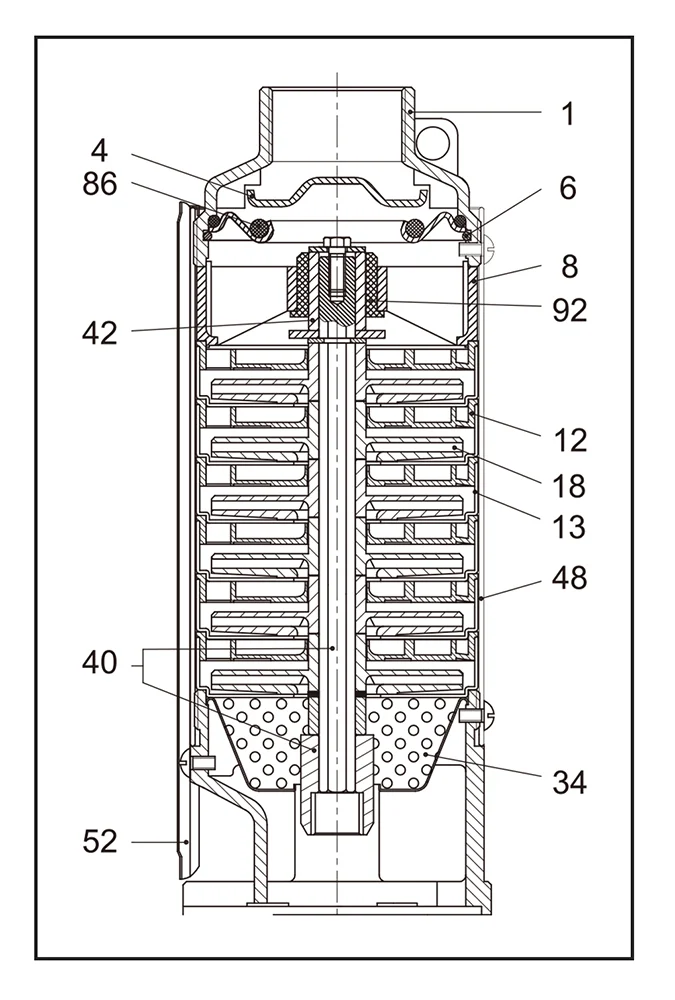

Part List and Materials

No.	Part Name	Materials
1	Discharge Head	AISI 304
4	Check Valve Cone	AISI 304
6	Check Valve Retaining Ring	AISI 304
8	Bearing Spider	Glass Filled Polycarbonate
12	Diffuser	Glass Filled Polycarbonate
13	Bowl	AISI 304
18	Impeller	Noryl
34	Strainer	AISI 304
40	Pump Shaft / Coupling	AISI 304
42	Shaft Sleeve	AISI 304 or Noryl
48	Pump Casing	AISI 304
52	Cable Guard	AISI 304
86	O-Ring	NBR
92	Bearing	Polyacetal
