1.5HP Submersible Motor 20GPM Deep Well Water Pump -230V – 1P – Noryl – 4″ – 520ft Motor with Splice kit
$930.00
Pump Specifications
- Maximum Head: 520 ft
- Maximum Flow: 20 GPM
- Discharge Size: 1 1/4“
- Power: 1.5 HP
- Voltage: 230V, 1-Phase
- Pump Material: Noryl
- Pump Model: ST 1017
| HP |
1.5 |
|---|---|
| Pump Diameter |
4” |
Estimated delivery dates: July 23rd - July 27th
Description
| Model | Pump | ST 1017 |
| Motor | 4CF3536M | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 1.1 |
| HP | 1.5 | |
| Service Factor | 1.3 | |
| Material | Pump | Noryl |
| Motor | Noryl | |
| Voltage – Phase | 230V – Single Phase | |
| Wire | 2 | |
| In | A | 7.7 |
| Imax | A | 9.4 |
| Istart | A | 31.8 |
| PF (%) | Allowable Load | 0.95 |
| Overload Factor | 0.96 | |
| Efficiency (%) | Allowable Load | 64.8 |
| Overload Factor | 68.2 | |
| R.P.M | 3450 | |
| Thrust | N | 3000 |
| Capacitor | UF | 30UF 450V |
| Cable | AWG | 14 |
| Length (ft.) | 3.9 | |
| Production Country | Taiwan | |

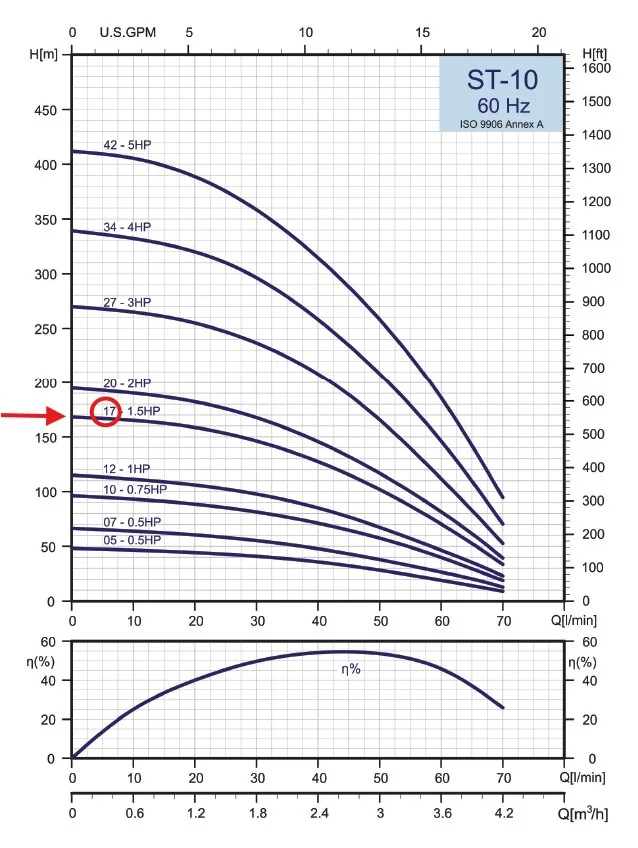

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | |||||||||
| kW | HP | l/Min | 0 | 15 | 20 | 25 | 30 | 40 | 60 | 70 | |
| ST 10-17 | 1.1 | 1.5 | Head (m.) | 168 | – | 159 | 152 | 147 | 128 | 70 | 35 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (mm) | Weight (kg) | |||||
| A | B | C | D | Pump | Motor | Pump + Motor | ||
| NPT 1 1/4″ | 4″ | 447 | 1 1/4″ | 98 | — | 11.9 | 29.7 | 41.6 |

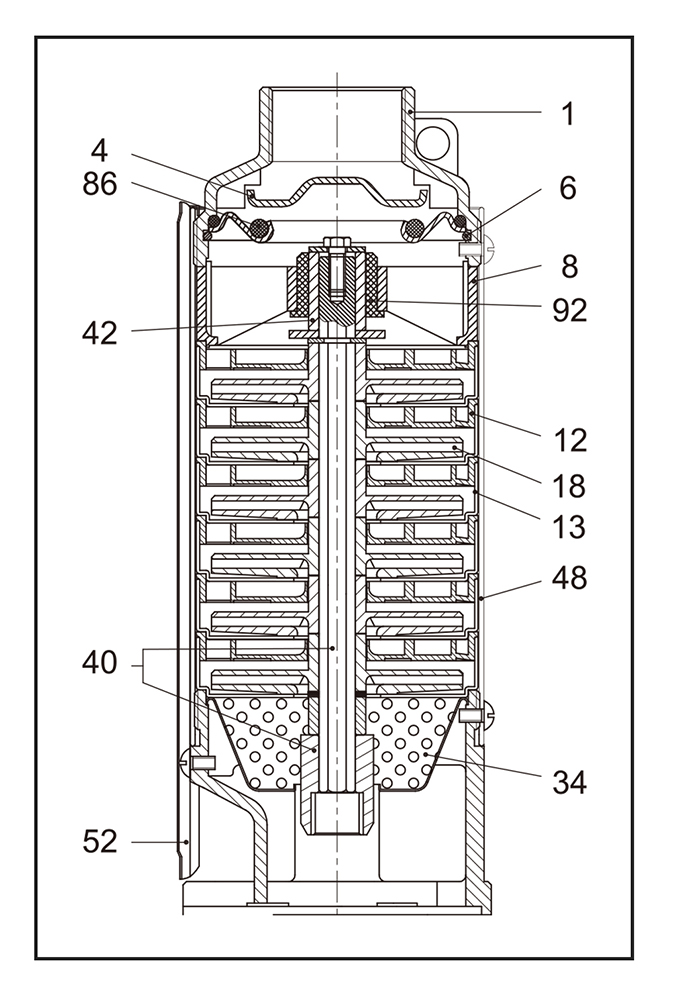

Part List and Materials
| No. | Part Name | Materials |
| 1 | Discharge Head | AISI 304 |
| 4 | Check Valve Cone | AISI 304 |
| 6 | Check Valve Retaining Ring | AISI 304 |
| 8 | Bearing Spider | Glass Filled Polycarbonate |
| 12 | Diffuser | Glass Filled Polycarbonate |
| 13 | Bowl | AISI 304 |
| 18 | Impeller | Noryl |
| 34 | Strainer | AISI 304 |
| 40 | Pump Shaft / Coupling | AISI 304 |
| 42 | Shaft Sleeve | AISI 304 or Norly |
| 48 | Pump Casing | AISI 304 |
| 52 | Cable Guard | AISI 304 |
| 86 | O-Ring | NBR |
| 92 | Bearing | Polyacetal |
