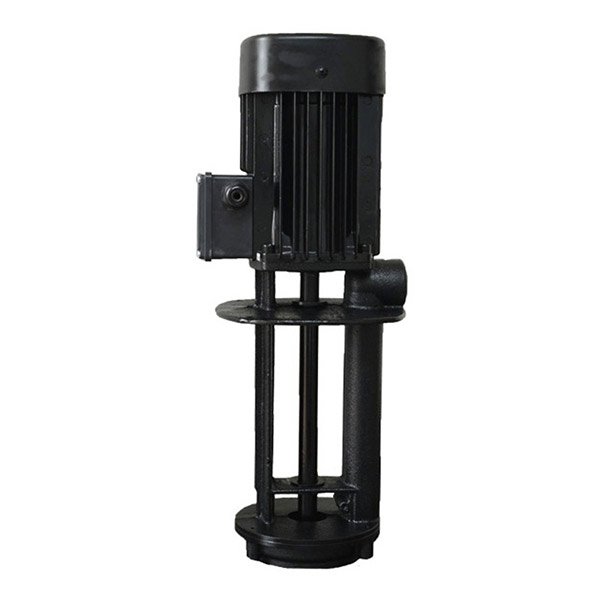

Immersible Coolant Pump SPC 8-18 – 1.6HP, 230V – 3PH, 4596GPH
$594.99
The SPC coolant pump is co-axial pump/motor design to processing-material cooling device such as milling, drilling, cutting, grinding, CNC machines and these widely machine tools, it is suitable to deliver coolant, light oil and all kind non-aggressive liquids.
Pump Construction
The pump is one-chamber vertical centrifugal pump, co-axial pump/ motor design, impellers mounted on extended motor shaft.
Motor
- Frequency: 60 Hz
- Insulation Class: F
- Enclosure Protection Class: IP 54
- Nominal Speed: 3500 RPM
Operation Conditions
- Liquid Temperature Range: +32°F ~ +194°F
- Max. Ambient Temperature: +104°F
- Max. Operating Pressure: 142 PSI
- Liquid viscosity: 1~32 cSt
| HP |
1.6 |
|---|---|
| Flow (GPH) |
4596 |
| Discharge Port (in.) |
RP 1 |
| Brand |
GPT CO |
Technical Data
| Model | SPC 8-18 |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| HP | 1.6 |
| Voltage – Phase | 230V – Three Phase |
| Amps | 3.4 |
| Flow (GPH) | 4596 |
| Max. Total Head (ft.) | 54.1 |
| Max. PSI | 142 |
| Discharge Port (in.) | RP 1 |
| Dimensions L x W x H (in.) | 17.7 x 8.2 x 7.5 |
| Product Weight (lb.) | 30.8 |
Performance Curve
Dimensions (inch)
| Outlet | A | B | C | D | E | F | G | H | I | J | K | L |
| RP 1 | 10.6 | 17.7 | 7.1 | 4.5 | 3.7 | RP 1 | 1.2 | 5.1 | 7.5 | 5.9 | 4-Ø0.3 | PCD 7.3 |
Parts and Materials
| No | Component | Material |
| 1 | Motor | ADC 12 |
| 2 | Pump | FC 20 |
| 3 | Pump Cover | FC 20 |
| 4 | Impeller | Nylon |
| 5 | Wiring Box | ABS |
Installation
Estimated Delivery: 3-5 Business Days
If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $120 Liftgate service fee .
For all products over 100 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 100 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
