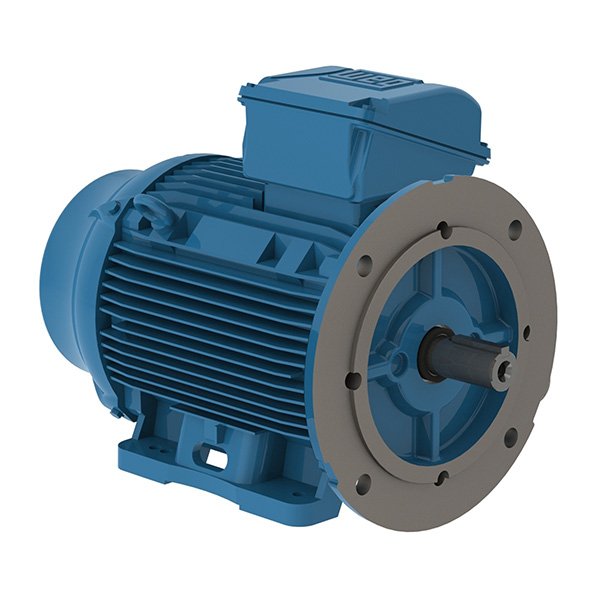

WEG Multimounting IEC Motor – 230/460V, 2HP, 1755RPM, 3P, Model 00158ET3FAL90SF3-W22
$491.99
Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 2 HP |
| Flange | FF |
| Mounting | B35T |
| Terminal box | Top |
| Enclosure | IC411 – TEFC |
| Brand |
WEG |
|---|---|
| HP |
2 |
Technical Data
| Brand | WEG |
|---|---|
| Frame | 90 S/L |
| Output | 2 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1755 rpm |
| Slip (%) | 2.50 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 5.66/2.83 |
| L. R. Amperes (A) | 47.0/23.5 |
| LRC (A) | 8.3 Code L |
| No load Current (A) | 3.10/1.55 |
| Rated Torque (ft.lb) | 8.11 Nm |
| Locked Rotor Torque (%) | 300 |
| Breakdown Torque (%) | 350 |
| Locked Rotor Time | 25s (cold) 14s (hot) |
| Moment of Inertia (J) | 0.1566 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service Factor | 1.25 |
| Temperature Rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 3280 ft |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | B35T |
| Rotation | Both (CW and CCW) |
| Noise Level | 49.0 dB(A) |
| Approx. Weight (lb) | 43 |
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 82.5 | 85.5 | 86.5 |
Power Factor
| 50% | 75% | 100% |
|---|---|---|
| 0.55 | 0.68 | 0.77 |
Features
| Frame Material | Aluminum |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 2xM25x1,5 |
| Terminal Block | BMC – 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207N (ISO 12944 – C2) |
| Grounding Lugs | Single |
| Fan Cover Material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Connection Cables Quantity | 9 |
| Fan Material | Plastic |
Estimated Delivery: 3-5 Business Days
If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $120 Liftgate service fee .
For all products over 100 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 100 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
