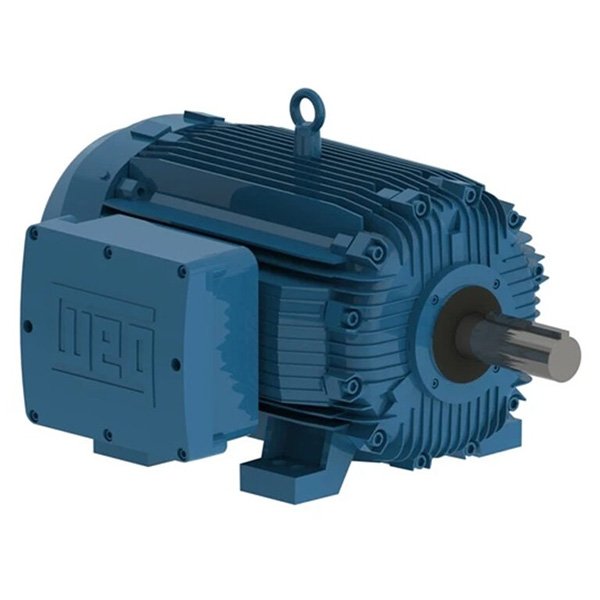

WEG W21 Explosion-proof Motor NEMA ? 10HP, 230/460//380V ? 3Ph, 3600RPM, IC411 ? TEFC ? Foot-mounted, Model 01036XT3E215T
$1,590.92
The Explosion Proof Motor is the WEG Solution designed for hazardous location in accordance with the hardest standard criteria assuring safety, energy saving and low operational costs.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 10 HP |
| Mounting | Foot-mounted |
| Flange | Without |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |
| Brand |
WEG |
|---|
Description
Technical Data
| Frame | 213/5T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3525 rpm |
| Slip | 2.08 % |
| Rated voltage | 230/460 V |
| Rated current | 23.5/11.7 A |
| L. R. Amperes | 162/80.9 A |
| LRC | 6.9x(Code H) |
| No load current | 7.20/3.60 A |
| Rated torque | 14.9 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 280 % |
| Locked rotor time | 52s (cold) 29s (hot) |
| Moment of inertia (J) | 0.5512 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 72.0 dB(A) |
| Approx. weight³ | 200 lb |
