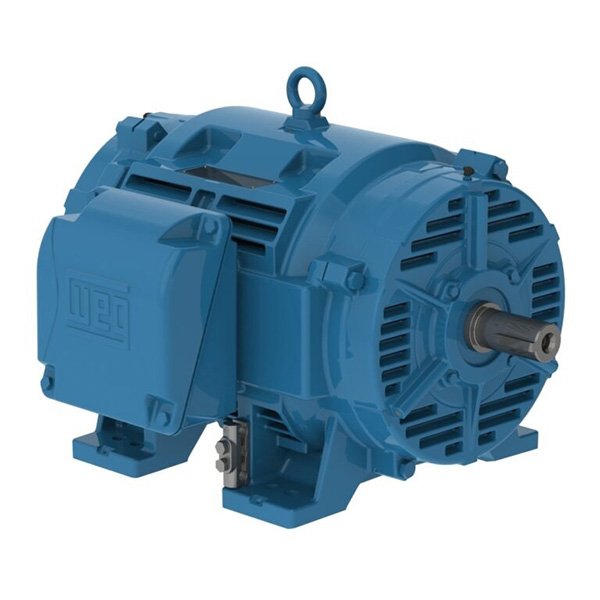

WEG Motor W40 ? 60HP, 230/460V ? 3Ph, 60 Hz, 1780RPM, ODP, Foot-mounted, Model 06018OT3E364T-W40
$3,714.99
The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 4 |
| Degree of Protection | IP23 |
| Synchronous speed | 1800 rpm |
| Output rating | 60 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC01 – ODP |
| Brand |
WEG |
|---|
Description
Technical Data
| Brand | WEG |
|---|---|
| Frame | 364/5T |
| Output | 60 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1780 rpm |
| Slip (%) | 1.11 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 140/69.9 |
| L. R. Amperes (A) | 909/454 |
| LRC | 6.5x (Code G) |
| No load Current (A) | 49.4/24.7 |
| Rated Torque (ft.lb) | 177 |
| Locked Rotor Torque (%) | 200 |
| Breakdown Torque (%) | 240 |
| Locked Rotor Time | 34s (cold) 19s (hot) |
| Moment of Inertia (J) | 15.6 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.25 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 69.0 dB(A) |
| Approx. Weight (lb) | 746 |
Efficiency
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 94.4 | 94.5 | 95.0 | 95.0 |
Power Factor
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.48 | 0.73 | 0.82 | 0.85 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Main terminal box hole | NPT 3″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 – C3) |
| Grounding Lugs | Double |
| Fan Cover Material | Without |
| Tropicalized Painting | Without |
| Bearing Cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
