VERTICAL MULTISTAGE PUMP – 3HP – 230V – 1PHASE – Model SBI 5-9
$1,689.99
The SBI pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBI pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.
| Flow (GPH) |
5100 |
|---|---|
| HP |
3 |
| Discharge Port (in.) |
1.25 |
| Suction Port (in.) |
1.25 |
| Brand |
GPT CO |
Applications
WATER SUPPLY AND PRESSURE BOOSTING
- Pressure boosting in buildings, hotels, residential complexes
- Pressure booster stations, supply of water networks
- Pressure boosting for industrial water supply
IRRIGATION AND AGRICULTURE
- Greenhouses
- Sprinkler irrigation
- Field irrigation (flooding)
LIGHT INDUSTRY
- Washing and cleaning systems
- Car washing facilities
- Fire fighting systems
- Process water systems
- Machine tools (cooling lubricants)
WATER TREATMENT
- Water softeners and de-mineralization Reverse Osmosis systems
- Distillation systems
- Filtration
- Ultra-filtration systems
HEATING, VENTILATION AND AIR-CONDITIONING
- Boilers
- Induction heating
- Heat exchangers
- Refrigerators
- Cooling towers and systems
- Temperature control systems
Technical Data
User-Manual
Full-catalog
More Details
| Model | SBI 5-9 |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Material | Stainless Steel 304 |
| Port Size (in.) | 1.25 |
| Flow (GPH) | 5100 |
| HP | 3 |
| Volts | 230V – Single phase – 60Hz |
| Amps[A] | 13.8 |
| Max. Total Head (ft.) | 282 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 124 |
| Suction Port (in.) | 1.25 |
| Discharge Port (in.) | 1.25 |
| Centrifugal | Yes |
| Dimensions L x W x H (in.) | 9.8 x 8 x 33 |
| Product Weight (lbs.) | 86.2 |

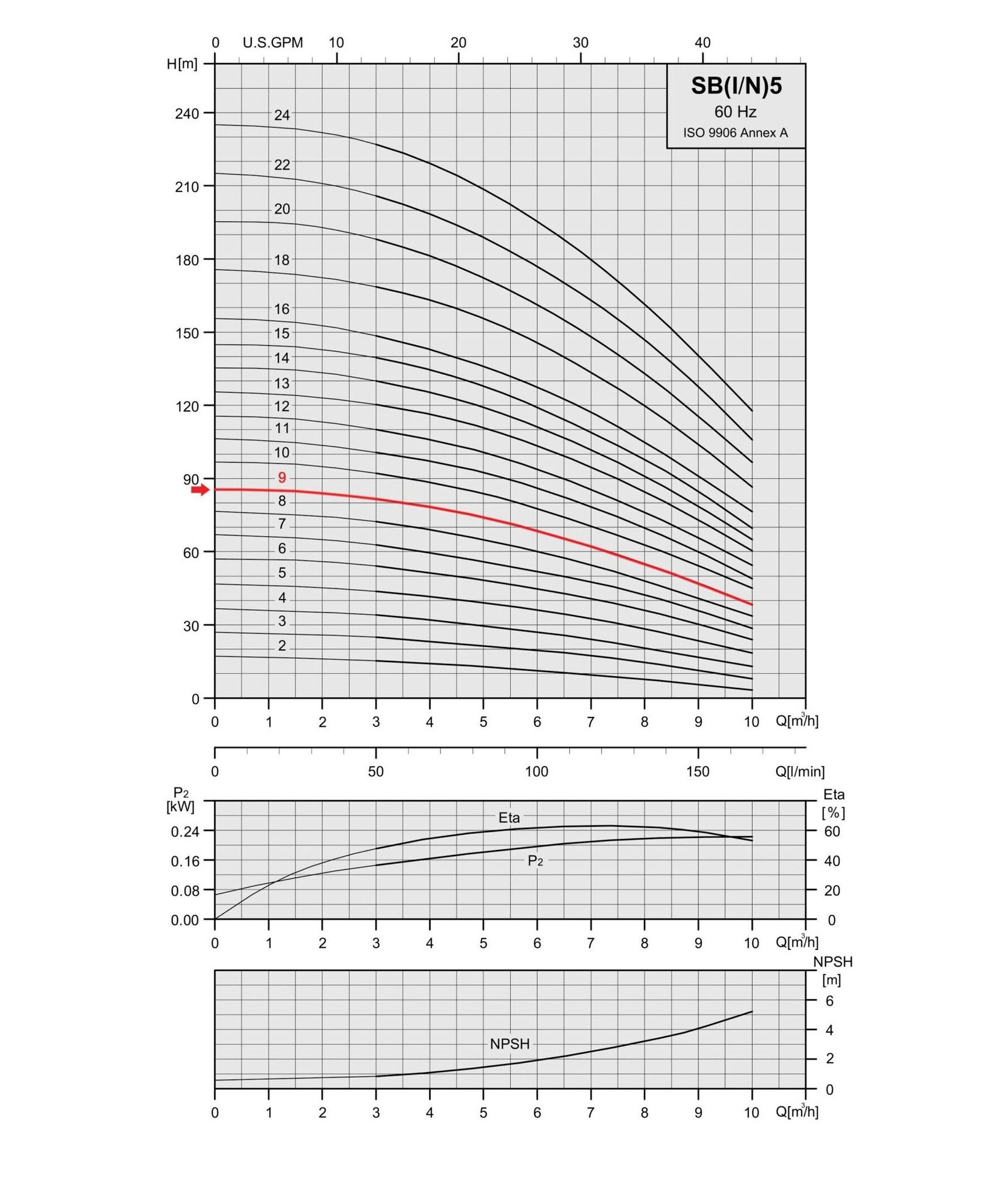

Performance Curve

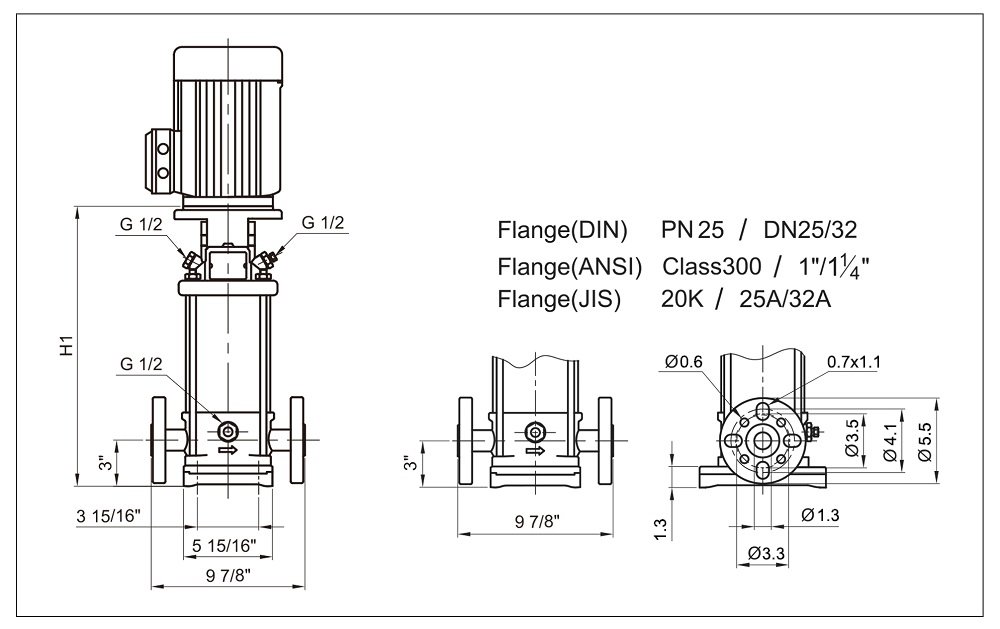

Dimensions
| 60Hz | Motor P2 | Nominal current (A) | Dimension [mm] | Net weight [kg] | ||||||
| Single phase | DIN flange | Port Size | D1 | D2 | DIN flange | |||||
| Pump type | [KW] | [HP] | 230V | H1 | H2 | DNA | DNM | |||
| SBI 5-9 | 2.2 | 3 | 13.8 | 493 | 788 | 1 1/4″ | 1 1/4″ | 177 | 141 | 39.2 |

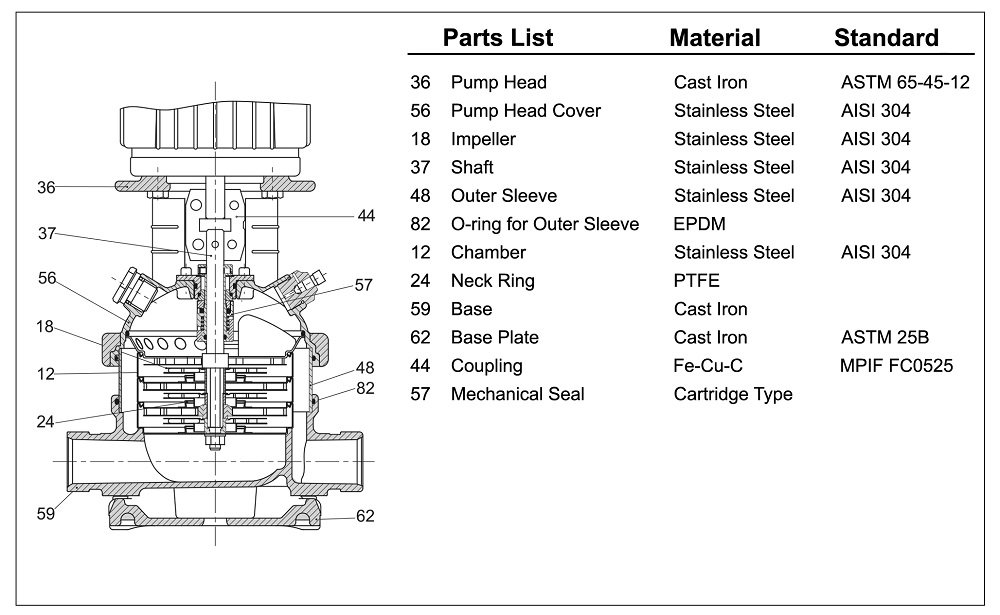

Parts List and Materials
Estimated Delivery: 3-5 Business Days
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply.
