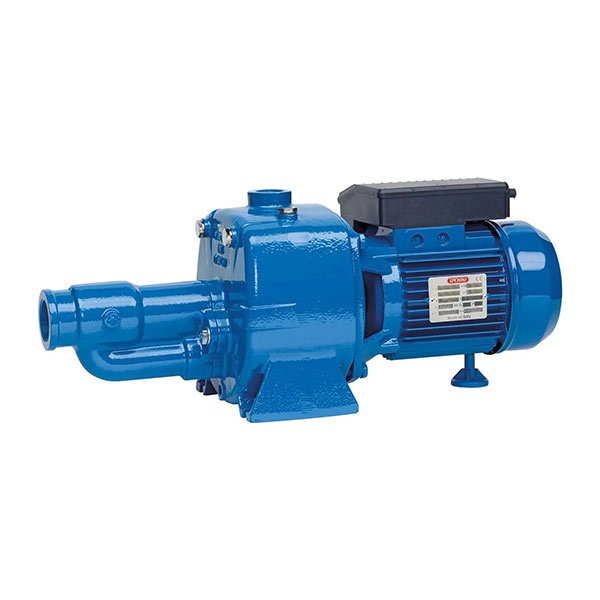

SPERONI Self Priming Shallow Well Jet Pump CAM 150 – 1320GPH, 1.5HP, 230V
$892.99
Self priming twin-impeller water pumps with ejector for suction up to 29 ft. A suction up to 114 ft. depth can be allowed by taking the ejector down and connecting it to the pump by means of a double hose and a foot valve. Suitable for civil and industrial purposes and to drain clean and soda water and non-aggressive liquids.
Description
Operating Conditions
- Liquid temperature up to 95°F (for home use according to EN 60335-2-41).
- Temperature max. liquid: 95°F (for other uses).
- Ambient temperature up to 104°F.
- Total suction lift up to 29 ft.
Motor
- Single-phase 230V-60Hz.
- Two-Pole induction motor (n=3450 min-1).
- Insulation Class F.
- Protection IP 55.
Materials
- Pump Body: Cast Iron.
- Motor Support: Cast Iron.
- Impellers: Norly.
- Diffuser: Norly.
- Ejector: Cast Iron.
- Shaft with rotor: Stainless Steel AISI 304.
- Mechanical seal: Ceramic/Graphite/NBR
| Brand |
SPERONI |
|---|
Technical Specifications
| Type | Motor | Pump | |||||||||||||||
| Nominal Power (P1) | Input Power (P2) | Volt | Phase | Ampere | Q = Capacity | ||||||||||||
| HP | KW | KW | V | PH | A | Gal/Min | 2.6 | 5.3 | 7.9 | 10.6 | 13.2 | 15.9 | 18.5 | 21.1 | 23.8 | 26.4 | |
| CAM-150 | 1.5 | 1.1 | 1.5 | 230V | 1 | 7 | Ft. | 190.3 | 180.4 | 170.6 | 160.8 | 147.6 | 131.2 | 98.4 | 32.8 | – | – |
Dimensions
| Size (inch) | Weight (lbs.) | ||||||||||
| A | B | C | D | E | F | G | H | H1 | DNA | DNM | |
| 4.1 | 10.4 | 23.8 | 8.7 | 6.8 | 0.4 | 8.3 | 9.4 | 4.5 | 1.5 | 1 | 65.6 |
Performance Curve
Estimated Delivery: 3-5 Business Days
If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $120 Liftgate service fee .
For all products over 100 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 100 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
