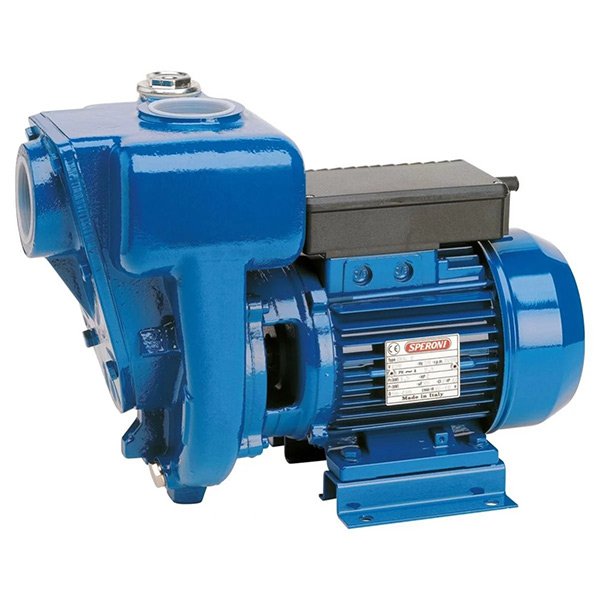

Speroni HG 80-5.5 Trash Water Pump – 25360 GPH – 3″ – 7.5HP – 3P
$2,727.99
- Cast iron pump body
- Cast iron impeller
- Stainless Steel 304 shaft and rotor
| Flow (GPH) |
7920 GPH |
|---|---|
| HP |
7.5 |
| Discharge Port (in.) |
2 |
| Suction Port (in.) |
2 |
| Brand |
SPERONI |
Description
The HG 80-5.5 Trash Water Pump is a self-priming, 7.5Hp, monoblock, trash water pump made by Speroni.
Made in Italy.
Features
Operating Conditions
- Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 194°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 23 ft.
Motor
- Three-phase 220V-60Hz
- Two-pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 55
Materials
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Cast Iron
- Shaft with rotor: Stainless Steel 304
- Mechanical seal: Ceramic/Graphite/NBR
Applications
The HG 80-5.5 is a self-priming monoblock water pump with an open impeller.
The check valve inside the suction outlet avoids the syphon effect when stopping and assures the automatic re-start each time.
The pump self-primes even if partially filled and if the suction hose is completely empty.
Suitable to drain clean or slightly dirty water and in flood irrigation systems.
Technical Specifications
| Model | HG 80-5.5 |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Cast Iron |
| Port Size (in.) | 3″ |
| Flow (GPH) | 7920 GPH |
| HP | 7.5Hp |
| Volts | 220V – Three Phase |
| Max. Total Head (ft.) | 87 |
| Max. Suction Lift (ft.) | 23 |
| Max. PSI | 38.4 |
| Suction Port (in.) | 2″ |
| Discharge Port (in.) | 2″ |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 26″ x 8″ x 17″ |
| Product Weight (lbs.) | 199 |
