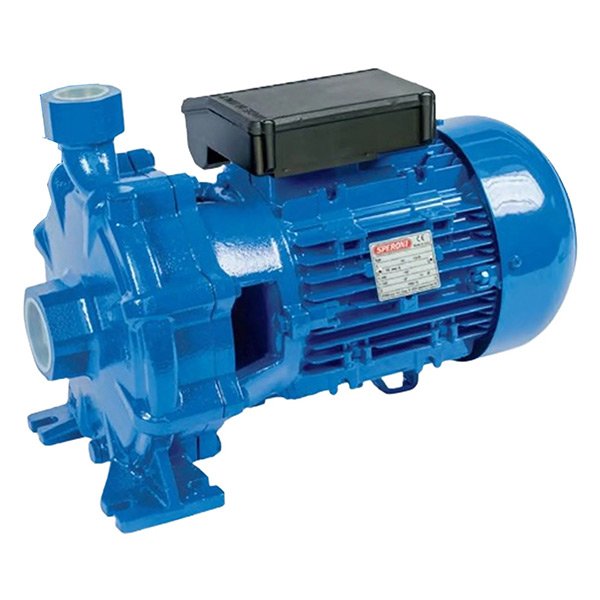

Speroni CM 53-3HP Single Impeller Centrifugal Pump – 2280GPH – 220V – 1PH
$1,089.99
- Can handle small, medium, and large capacity requests
- Great for sprinklers, irrigation systems, gardening
- Cast iron pump body
| HP |
3 |
|---|---|
| Discharge Port (in.) |
1 |
| Suction Port (in.) |
1″ 1/4 |
| Brand |
SPERONI |
Description
The Speroni CM 53 is a single impeller, centrifugal pump that is great for small and large scale, domestic, agricultural and industrial purposes.
Made in Italy.
Features
Operating Conditions
- Liquid temperature up to 35°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 90°F (for other uses)
- Ambient temperature up to 40°F
- Total suction lift up to 7 mt.
Motor
- Two-Pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 55
Materials
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
Applications
Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.
Technical Specifications
| Model | CM 53 |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Port Size (in.) | 1.25″ |
| Maximum Flow (GPH) | 2280 GPH |
| Maximum Head (ft) | 100ft |
| HP | 3HP |
| Volts | 220V |
| Suction Port (in.) | 1″ 1/4 |
| Discharge Port (in.) | 1″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 17″ x 9.9″ x 14″ |
| Product Weight (lbs.) | 68lbs |
Dimensions
| Type | Dimensions | Dimensions | Weight | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | H1 | N | DNA | DNM | P | L | H | lb | |
| CM 53 | 3″ | 2″ | 16″ | 9″ | 6″ | 0.5″ | 9″ | 12″ | 5″ | 2″ | 1” 1/4″ | 1″ | 10″ | 17″ | 14″ | 68 |
Performance Table
| Type | Nominal Power | Input Power | Amperage | Capacity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220V-60Hz | HP | kW | kW | 1 x 110V/220V | GPM | 2.6 | 5.3 | 11.9 | 15.9 | 23.8 | 26.4 | 33 |
| CM 53 | 3 | 2.2 | 3.3 | 5.5 | lt/1′ | 10 | 20 | 45 | 60 | 90 | 100 | 125 |
| Head(ft) | 177 | 174 | 167 | 154 | 148 | 125 | 95 | |||||
