JMS Centrifugal Electric Pump — 1584 GPH, 1.5 HP, 220V, JRB-P 150M
$595.99
Applications
- For domestic systems and small irrigation system pressurization.
- Handling of non aggressive civil and industrial liquids.
- For washing systems and for insertion into complex.
- Industrial machinery and lines.
Design Engineering
- Stator made with low-loss laminated electric sheet steel.
- Insulation Class F.
- IP 44 protection level.
- Thermal protection for single-phase models.
- The user is responsible for supplying protection for the three-phase models.
Customized voltage and frequency rating available on demand.
| Brand |
JMS |
|---|
Description
Description

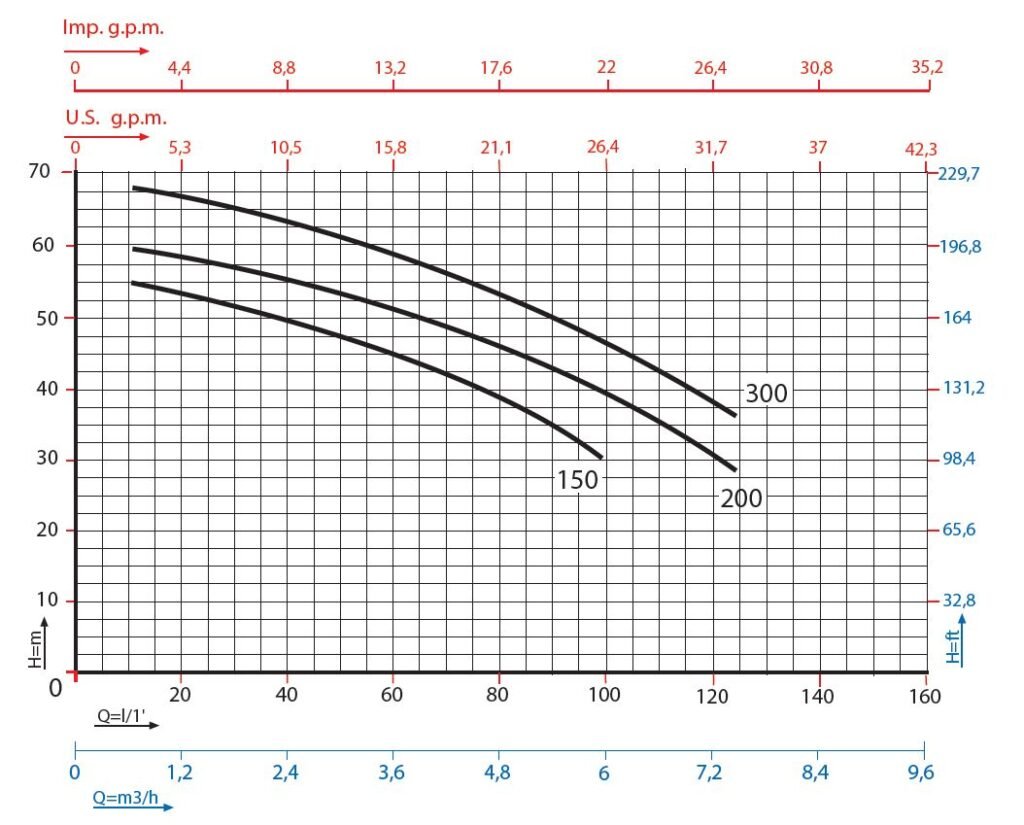

Performances
- at 3450 rpm 60Hz
- The performances data holds true for liquids:
- p= 1,0 kg/dm3 density and a v=1 mm2/s viscosity.
Technical Data
| Brand | JMS | |||||||
| Model | P2 nom | Ampere | Capacity | |||||
| 1~220V-60hz | HP | KW | 1~1X220V 60Hz | Gpm | 6.6 | 13.2 | 20 | 26.4 |
| Total head in meters w.c | ||||||||
| JRB-P 150M | 1.5 | 1.1 | 8.5 | 179 | 174 | 161 | 128 | 102 |
Dimensions
| Model | DNA Aspir | Outlet |  Dimensions Box |
Peso Weight (KG) | ||
| P | L | H | ||||
| JRB-P 150M | 1″ 1/4 | 1″ | 9.4 | 16.1 | 11.4 | – |
