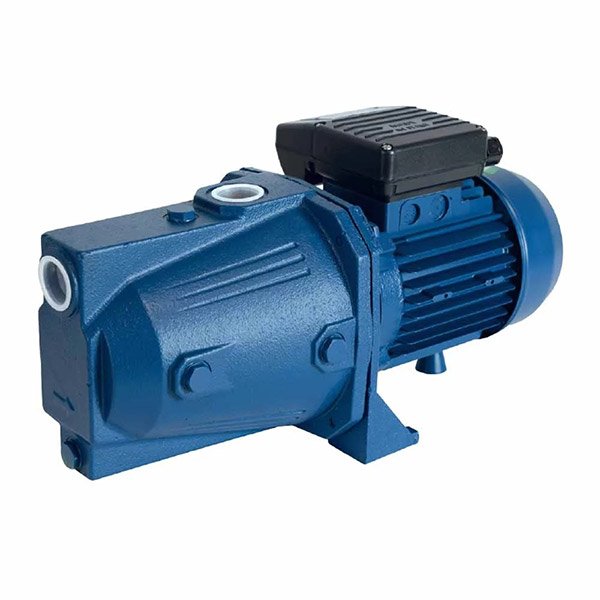

JMS, High Pressure Shallow Well Jet Pump JET-P 100M – 948 GPH, 1HP, 115/220V
$313.99
Applications
- For domestic systems and small irrigation system pressurization.
- Handling of non aggressive civil and industrial liquids.
- For washing systems and for insertion into complex industrial machinery and lines.
- For any application requiring a self priming system.
Design Engineering
- 2 pole electric induction motor for continuous operations.
- Stator made with low-loss laminated electric sheet steel.
- Insulation Class F.
- IP 44 protection level.
- Thermal protection for single-phase models, the user is responsible for supplying protection for the three-phase models.
Customized voltage and frequency rating available on demand.
Available with UL list motors.
Performances
at 3450 rpm 60Hz
The performances data holds true for liquids:
p= 1,0 kg/dm3 density and a v=1 mm2/s viscosity
| Brand |
JMS |
|---|
Description
Data Sheet
Components/Materials
Products Curve
More Details
| MODEL | VOLTAGE | P2 nom. | AMPERE | ||
| 60Hz | HP | KW | 1 x 115V 60Hz | 1 x 220V 60Hz | |
| JET-P 100M | 1 x 115-220V | 1 | 0.75 | 11.6 | 5.8 |
| HYDRAULIC | |||||||||
| GPM | 2.64 | 5.3 | 8 | 10.6 | 13 | 16 | 32 | 37 | 40 |
| FT | 154 | 138 | 121 | 105 | 88 | 33 | – | – | – |
Dimensions
| Model | DNA ASPIR | Outlet |  Dimensions Box |
PESO WEIGHT
(KG) |
||
| L | M | 2 | ||||
| JET-P 100M | 1″ | 1″ | 8 | 18 | 9.4 | – |
