JMS Centrifugal Electric Pump — 1663 GPH, 1.5 HP, 220V, JR-P 150M
$489.99
Applications
- For domestic systems and small irrigation system pressurization.
- Handling of non aggressive civil and industrial liquids.
- For washing systems and for insertion into complex industrial machinery and lines
Design Engineering
- 2 pole electric induction motor for continuous operations.
- Stator made with low-loss laminated electric sheet steel.
- Insulation Class F.
- IP 44 protection level.
- Thermal protection for single-phase models, the user is responsible for supplying protection for the three-phase models.
Customized voltage and frequency rating available on demand.
Available with UL list motors.
| Brand |
JMS |
|---|
Description
Description

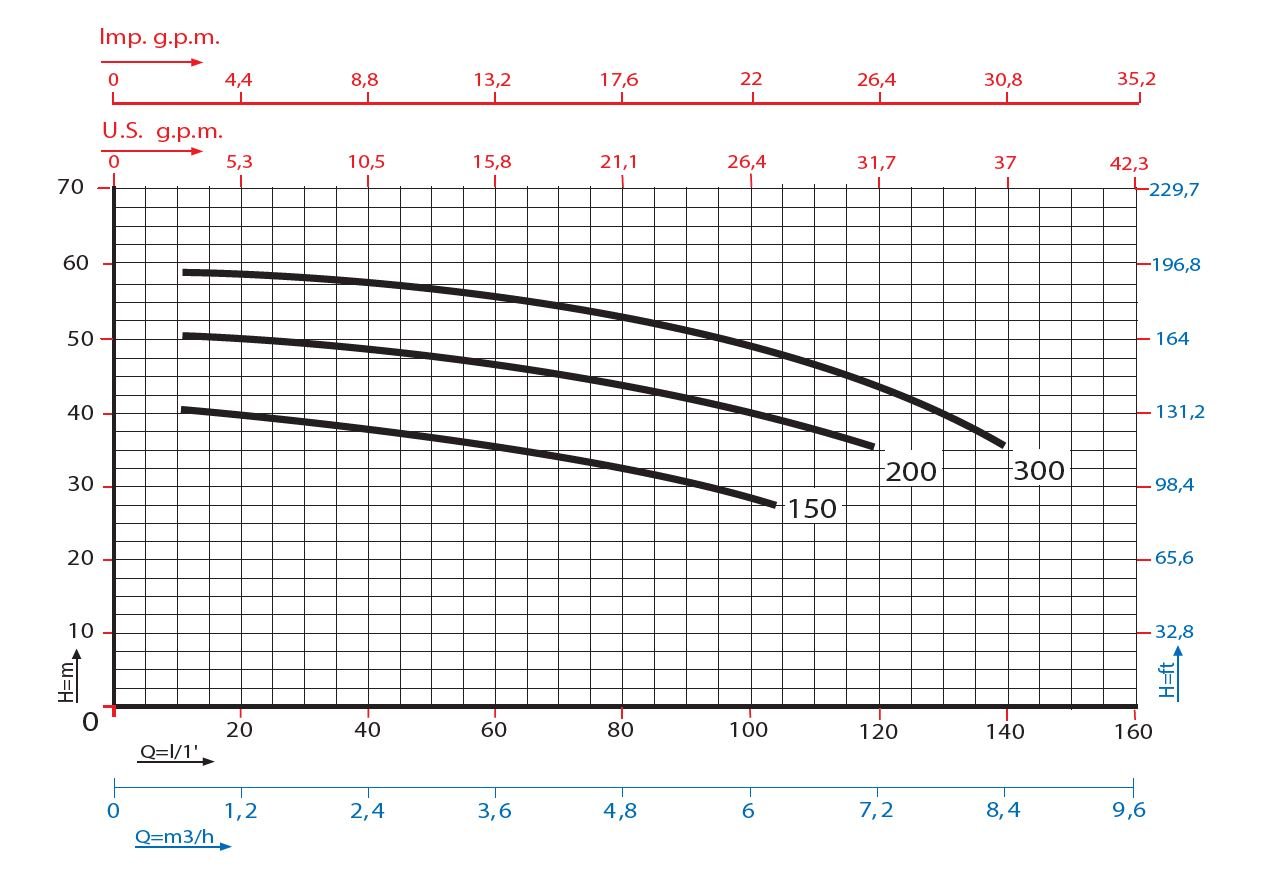

Performances
at 3450 rpm 60Hz
The performances data holds true for liquids:
p= 1,0 kg/dm3 density and a v=1 mm2/s viscosity.
Technical Data
| Brand | JMS | ||||||||||
| Model | P2 nom. | Ampere | Capacity | ||||||||
| 1~220V-60hz | HP | KW | 1~1 x 220V 60Hz | ||||||||
| Gpm | 0.53 | 8 | 12 | 16 | 20 | 24 | 28 | ||||
| Total head in meters w.c | |||||||||||
| JR-P 150M | 1.5 | 1.1 | 9 | 133 | 131 | 128 | 125 | 121 | 113 | 102 | 90.2 |
Dimensions
| Model | DNA Aspir | Outlet |  Dimensions Box |
Peso Weight (KG) | ||
| P | L | H | ||||
| JR-P 105M | 1″ | 1″ | 9.4 | 14 | 12.4 | – |
