Magnetic Drive Pump For Acidic, Alkaline And Chemical Liquids – 115V – GMD1-30RZ
$222.87
Description

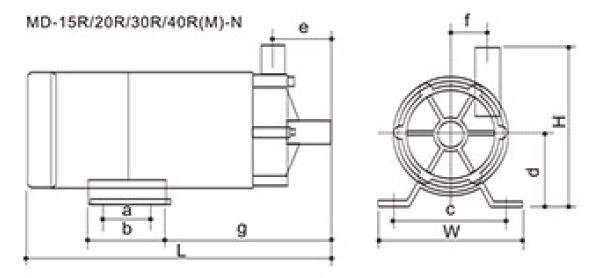

| Model | W | H | L | a | b | c | d | e | f | g |
| GMD-30RZ | 120 | 130 | 248 | 40 | 64 | 100 | 60 | 48 | 31 | 137 |
GMD1-30RZ
| Model | Tube Interface | Spiral Interface | Max. Capacity
gpm |
Max. head
ft |
Standard outlet
ft-gpm |
Temperature
°F |
Specific weight | Motor | ||||
| Inlet | Outlet | Outlet-Inlet | Tube | Input w | Outlet w | Phase | ||||||
| GMD-30RZ | 0.7 | 0.7 | G 3/4 | 0.5 | 3.9 | 26 | 20-2.6 | 0-176 | 1.0 | 45 | 70 | 1 |
