CBT 12-10 Multi-Stage Horizontal Water Pump — 4200 GPH, 1 HP, 220/460 Volts, 1-1/2in. Ports, 60 Hz, 3PH
$480.60
The CBT series are non-self priming horizontal multistage centrifugal pumps. Pump is coupled with motor at the same shaft and mounted on a base-plate. The friendly design makes the pump suitable for installation in the small domestic or industrial water supply systems. The pump is fitted with a mechanical seal and through-going pump-motor shaft.
The discharge and suction chamber are made of cast iron. The other parts of pump in contact with the liquid are made of stainless steel. EPDM or Viton O-rings are available as standard.
Applications
- Domestic
- Liquid transfer and circulation of liquids within light industry and farming
- Pressure boosting
- Air-conditioning systems
- Cooling systems or cooling machine
- Specialized OEM equipment
Motor
- The pump is fitted with a totally enclosed, fan-cooled, squirrel-cage motor. Three-phase motors have built-in thermal overload protection.
- Rated speed: 3450rpm (60Hz)
- Enclosure class: IP 54
- Insulation class: F
Operating Conditions
- Liquid temperature range: 32°F ~+194°F
- Maximum ambient temperature: +104°F
- Maximum operating pressure: 142 PSI
- Maximum inlet pressure is limited by maximum operating pressure.
- Liquid: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibers.
| Brand |
GPT CO |
|---|
Description
More Details
| Model | CBT 12-10 | |
| Material | Cast Iron | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 year Limited Warranty | |
| Ports (in.) | Suction | 1 1/2″ |
| Discharge | 1 1/2″ | |
| Flow (GPH) | 4200 | |
| Horsepower | 1 | |
| Voltage – Phase | 220/460 – 3Ph | |
| Amps | 3.5/2.1 | |
| Max. Total Head (ft.) | 52 | |
| Self-Priming | No | |
| Dimensions L x W x H (in.) | 14.2 x 7.1 x 8.8 | |
| Product Weight (lbs.) | 35.6 | |

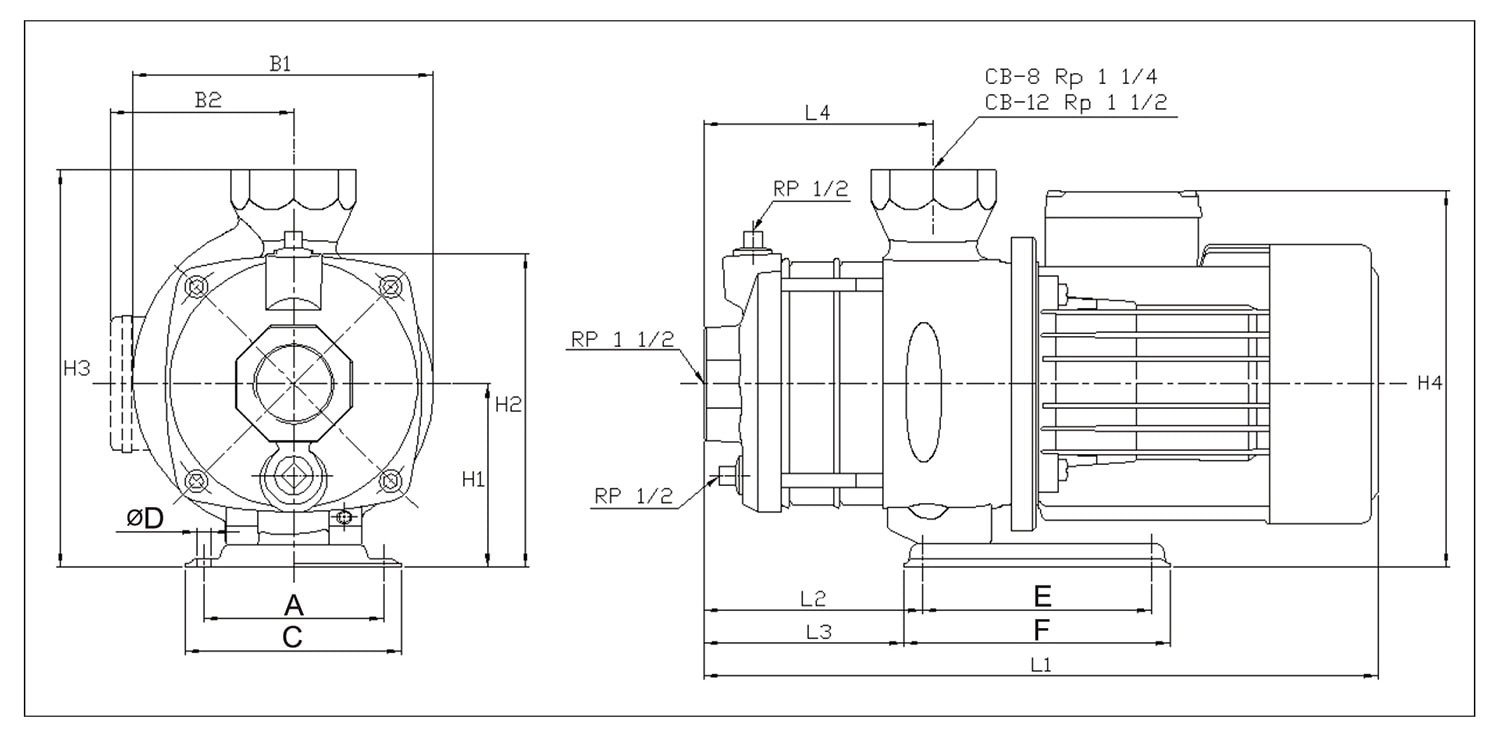

| Inlet | Outlet | A | B1 | B2 | C | ØD | H1 | H2 | H3 | E | F | L1 | L2 | L3 | L4 | H4 |
| 1 1/2 | 1 1/2 | 4.3 | 7.1 | 4.5 | 5.1 | 0.3 | 4.3 | 7.4 | 9.4 | 5.4 | 6.3 | 14.2 | 2.1 | 1.6 | 3 | 8.8 |
