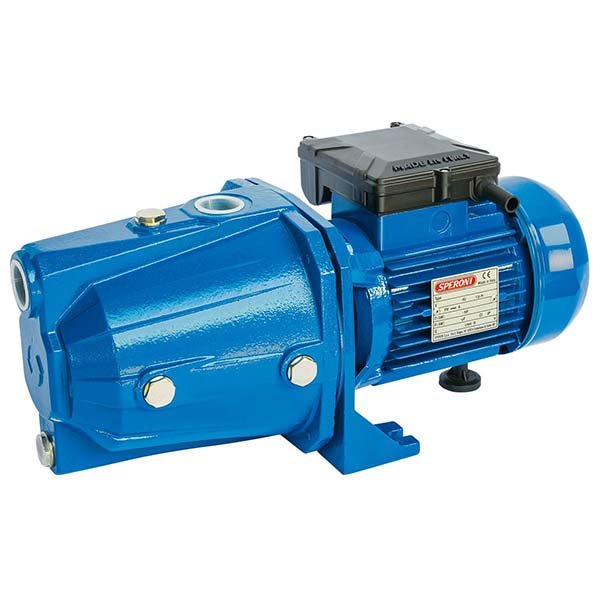

SPERONI CAM152 SHALLOW WELL JET PUMP – 1.5HP – SINGLE PHASE
$629.99
DESCRIPTION

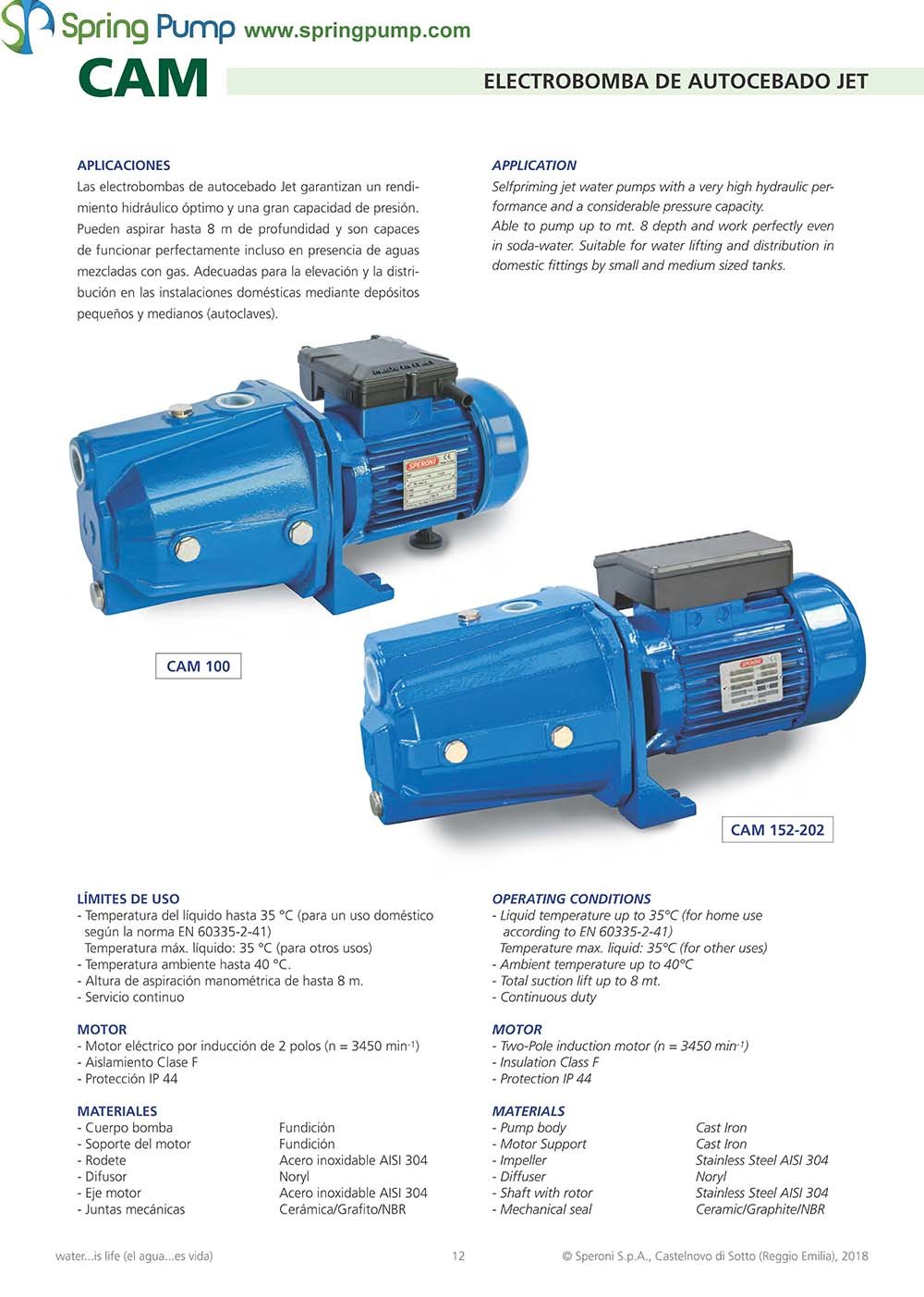

Applications
Self Priming shallow well jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to 26 ft. depth and work perfectly even in soda water. Suitable for water lifting and distribution in domestic fittings by small and medium-sized tanks.
Features
Operating Conditions
- Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 95°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft.
- Continuous duty
Motor
- Single-phase 220V-60Hz
- Insulation Class F
- Protection IP 44
Materials
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Stainless Steel 304
- Diffuser: Noryl
- Shaft with rotor: Stainless Steel 304
- Mechanical seal: Ceramic/Graphite/NBR
| Flow (GPH) |
2376 |
|---|---|
| HP |
1.5 |
| Discharge Port (in.) |
1 |
| Suction Port (in.) |
1.25 |
| Brand |
SPERONI |
Description

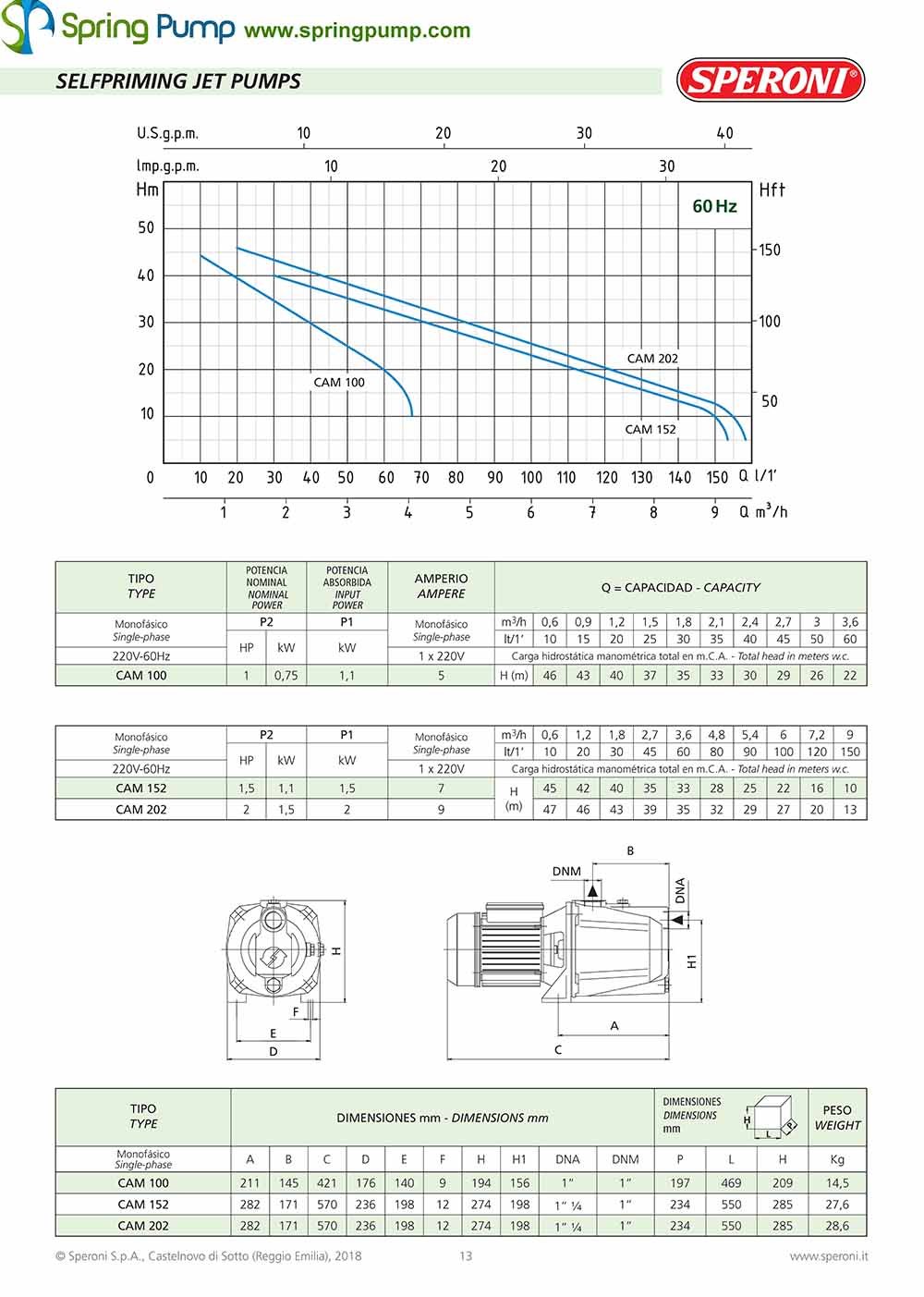

Technical Specifications
| Model | CAM152 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Impeller Material | Stainless Steel 304 |
| Port Size (in.) | 1″ and 1-1/4″ |
| Flow (GPH) | 2376 |
| HP | 1.5 |
| Volts | 220V – Single Phase |
| AMP | 7A |
| Max. Total Head (ft.) | 148ft |
| Max. Suction Lift (ft.) | 26.2ft |
| Max. PSI | 65psi |
| Suction Port (in.) | 1.25″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 22.4″ x 9.3″ x 10.8″ |
| Product Weight (lbs.) | 60.8lbs |
