2HP SUBMERSIBLE 230V – 3P MOTOR 65GPM DEEP WELL WATER PUMP – 4″ – 180ft Motor with Splice kit
$909.27
Pump Specifications
- Maximum Head: 180 ft
- Maximum Flow: 65 GPM
- Discharge Size: 2″
- Power: 2HP
- Voltage: 230V, 3-Phase
- Pump Material: Noryl
- Pump Model: GST 40-06
| HP |
2 |
|---|---|
| Pump Diameter |
4” |
Description
| Model | Pump | GST 40-06 |
| Motor | 4CS3946 | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 1.5 |
| HP | 2 | |
| Service Factor | 1.25 | |
| Material | Pump | Noryl |
| Motor | Noryl | |
| Voltage – Phase | 230V – Three Phase | |
| Wire | – | |
| In | A | 6.5 |
| Imax | A | 7.5 |
| Istart | A | 34.1 |
| PF (%) | Allowable Load | 0.76 |
| Overload Factor | 0.81 | |
| Efficiency (%) | Allowable Load | 76.3 |
| Overload Factor | 76.2 | |
| R.P.M | 3450 | |
| Thrust | N | 3000 |
| Capacitor | UF | No |
| Cable | AWG | 14 |
| Length (ft.) | 3.9 | |
| Production Country | Taiwan | |

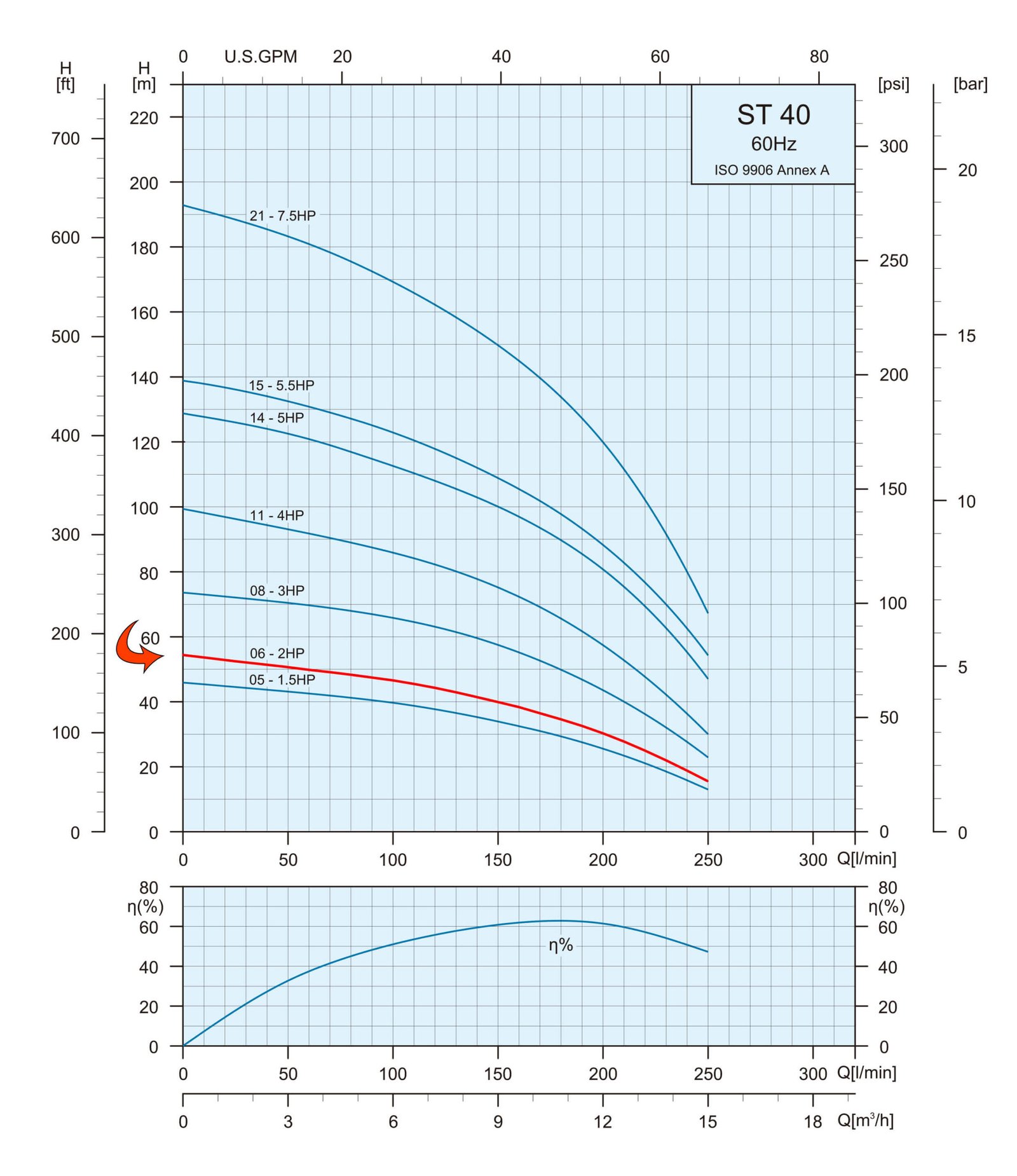

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | ||||||||||||
| kW | HP | Gal/Min | 0 | 18.5 | 21.1 | 23.8 | 26.4 | 31.7 | 37 | 42.3 | 47.6 | 52.8 | 66 | |
| GST 40-06 | 1.5 | 2 | Head (ft.) | 180 | 161 | 157 | 154 | 151 | 148 | 138 | 125 | 115 | 98 | 56 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | |||||
| A | B | C | D | Pump | Motor | Pump + Motor | ||
| NPT 2″ | 4″ | 14 | 2 | 3.9 | 27.9 | 7.5 | 29.2 | 36.7 |

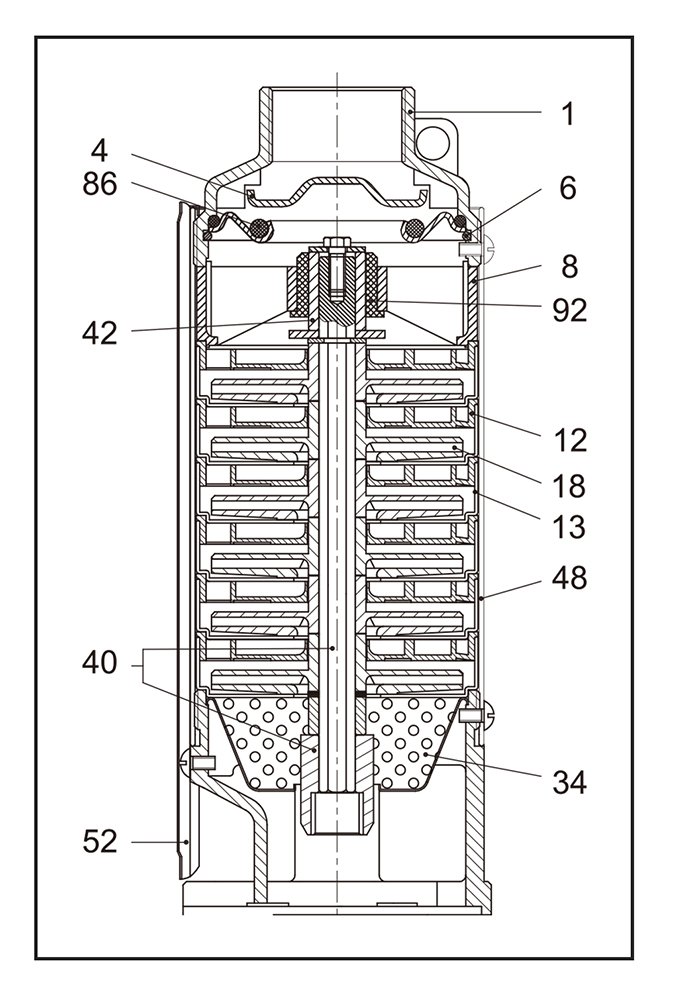

Part List and Materials
| No. | Part Name | Materials |
| 1 | Discharge Head | AISI 304 |
| 4 | Check Valve Cone | AISI 304 |
| 6 | Check Valve Retaining Ring | AISI 304 |
| 8 | Bearing Spider | Glass Filled Polycarbonate |
| 12 | Diffuser | Glass Filled Polycarbonate |
| 13 | Bowl | AISI 304 |
| 18 | Impeller | Noryl |
| 34 | Strainer | AISI 304 |
| 40 | Pump Shaft / Coupling | AISI 304 |
| 42 | Shaft Sleeve | AISI 304 or Noryl |
| 48 | Pump Casing | AISI 304 |
| 52 | Cable Guard | AISI 304 |
| 86 | O-Ring | NBR |
| 92 | Bearing | Polyacetal |
