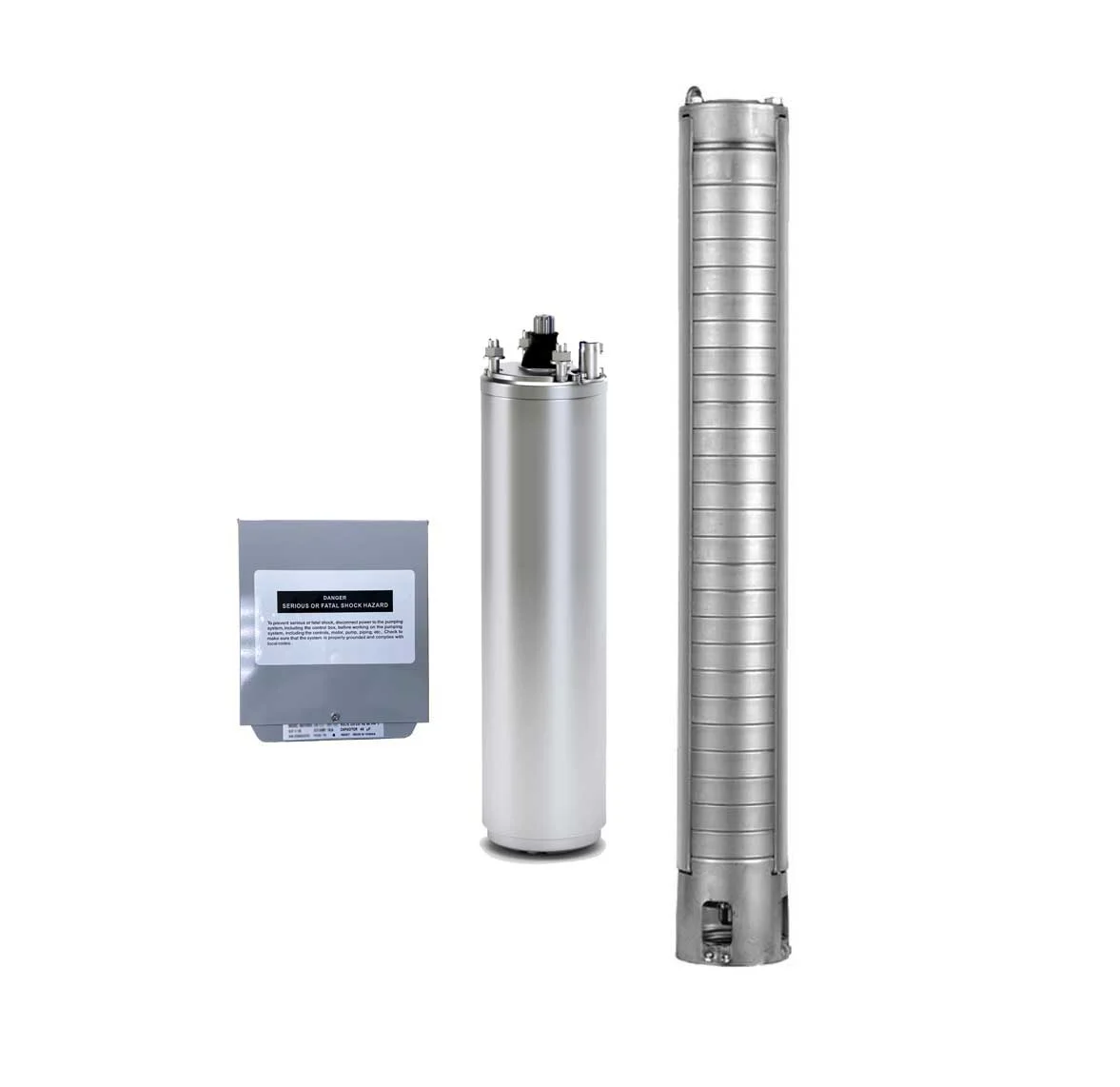

2 HP Submersible 3 Wire Motor 3360 GPH Deep Well Water Pump – 230V – 1P – SS316 – 4″ – 197ft Motor with Splice kit
$2,176.30
Pump Specifications
- Maximum Head: 193 ft
- Maximum Flow: 53GPM
- Discharge Size: 2″
- Power: 2 HP
- Voltage: 230V, 1-Phase
- Pump Material: Stainless Steel 316
- Pump Model: GSP 40-7
| Pump Diameter | 4” |
|---|---|
| HP | 2 |
Estimated delivery dates: August 27th - August 31st
Description
| Model | Pump | GSP 40-7 |
| Motor | 4CN3546D | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 1.5 |
| HP | 2 | |
| Service Factor | 1.25 | |
| Material | Pump | Stainless Steel 316 |
| Motor | Stainless Steel 316 | |
| Voltage – Phase | 230V – Single Phase | |
| Wire | 3 | |
| In | A | 11.4 |
| Imax | A | 13.5 |
| Istart | A | 52.6 |
| PF (%) | Allowable Load | 0.86 |
| Overload Factor | 0.89 | |
| Efficiency (%) | Allowable Load | 66.2 |
| Overload Factor | 66.8 | |
| R.P.M | 3450 | |
| Thrust | N | 3000 |
| Capacitor | UF | – |
| Cable | AWG | 14 |
| Length (ft.) | 3.9 | |
| Production Country | Taiwan | |

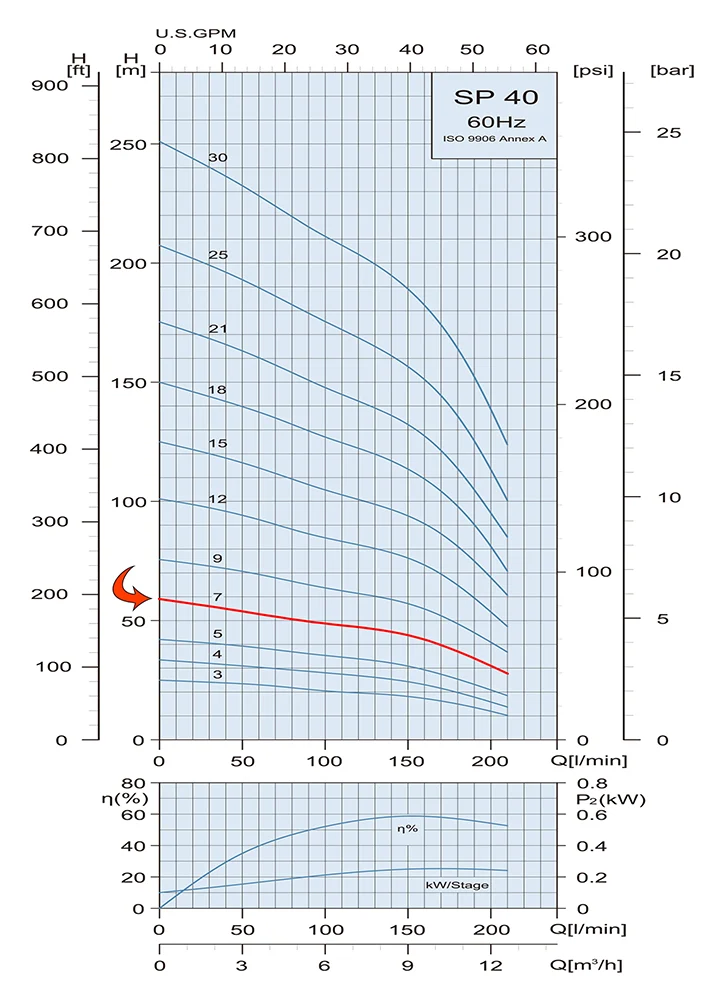

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | ||||||||||
| kW | HP | Gal/Min | 0 | 21.1 | 23.8 | 26.4 | 31.7 | 37 | 42.3 | 47.6 | 52.8 | |
| GSP 40-7 | 1.5 | 2 | Head (ft.) | 193.6 | 167.3 | 164 | 160.8 | 154.2 | 147.6 | 137.8 | 121.4 | 101.7 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | ||||
| A | B | C | Pump | Motor | Pump + Motor | ||
| NPT 2″ | 4″ | 19.5″ | 34.8″ | 3.9″ | 11.7 | 31.9 | 43.6 |

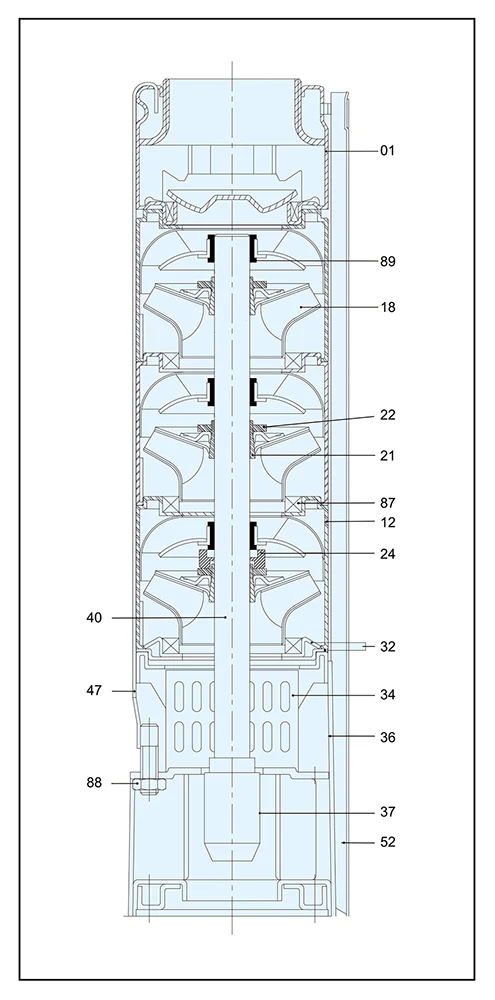

Part List and Materials
| No. | Part Name | Materials |
| 01 | Discharge | AISI 316 |
| 12 | Diffuser | AISI 316 |
| 18 | Impeller | AISI 316 |
| 21 | Split Cone | AISI 316 |
| 22 | Split Cone Nut | AISI 316 |
| 24 | Stop Ring | Carbon + Graphite + PTFE |
| 32 | Neck Ring Retainer | AISI 316 |
| 34 | Strainer | AISI 316 |
| 36 | Suction Interconnector | AISI 316 |
| 37 | Coupling | AISI 316 |
| 40 | Pump Shaft | AISI 316 |
| 47 | Strap | AISI 316 |
| 52 | Cable Guard | AISI 316 |
| 87 | Neck Ring | AISI 316 + HNBR |
| 88 | Nut | AISI 316 |
| 89 | Bearing | HNBR |
