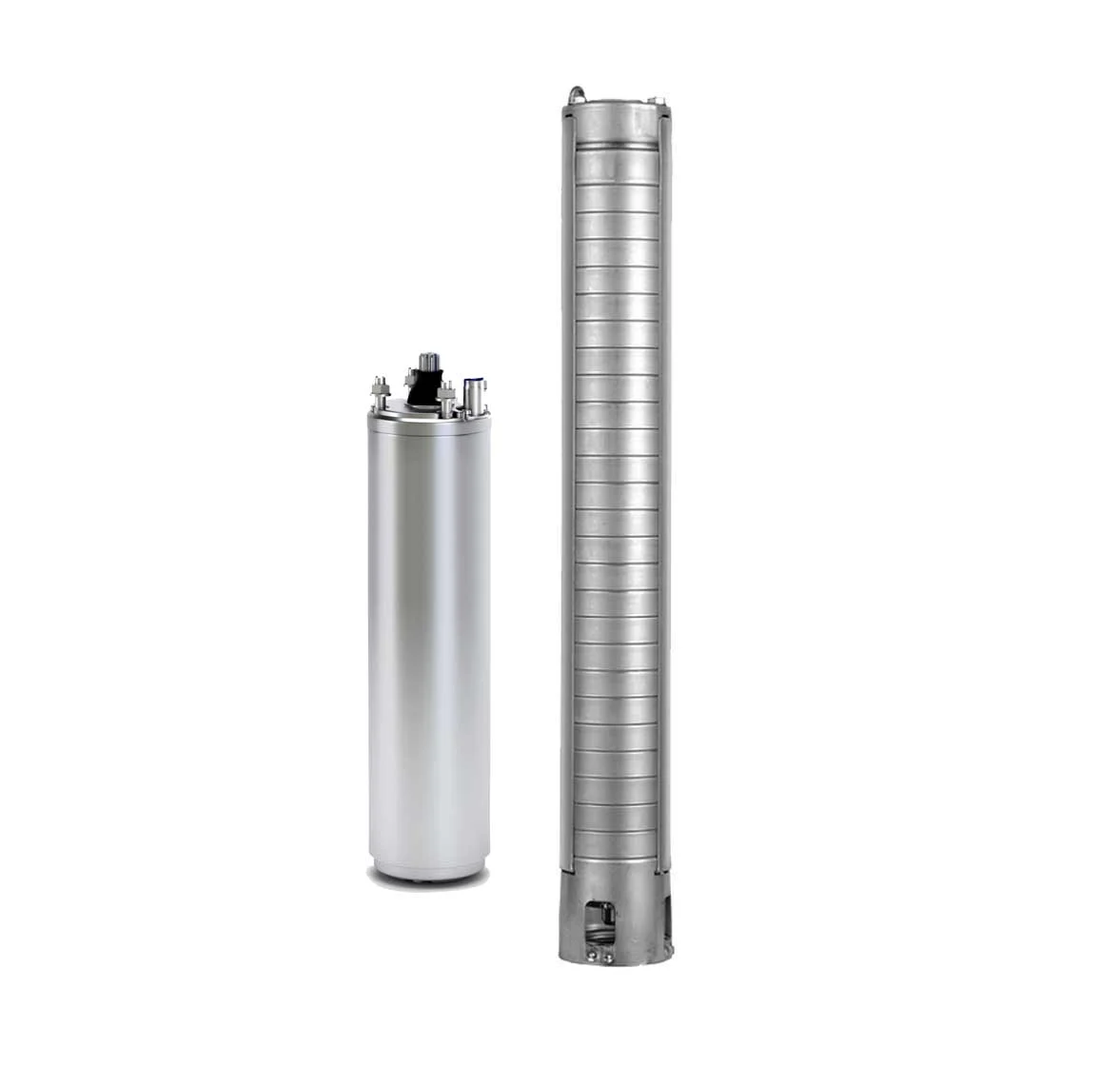

0.5HP Submersible 2 Wire Motor 14 GPM Deep Well Water Pump – 115V – 1P – SS316 – 4″- 246ft Motor with Splice kit
$1,245.82
Pump Specifications
- Maximum Head: 246 ft
- Maximum Flow: 14 GPM
- Discharge Size: 1 ¼” NPT
- Power: 0.5HP
- Voltage: 115V, 1-Phase
- Pump Material: Stainless Steel 316
- Pump Model: GSP 10-9
| HP | 0.5 |
|---|---|
| Pump Diameter | 4” |
Estimated delivery dates: July 31st - August 4th
Description
| Model | Pump | GSP 10-9 |
| Motor | 4CN2606M | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 0.37 |
| HP | 0.5 | |
| Service Factor | 1.6 | |
| Material | Pump | Stainless Steel 316 |
| Motor | Stainless Steel 316 | |
| Voltage – Phase | 115V – Single Phase | |
| Wire | 2 | |
| In | A | 7.1 |
| Imax | A | 9.3 |
| Istart | A | 26.9 |
| PF (%) | Allowable Load | 0.94 |
| Overload Factor | 0.97 | |
| Efficiency (%) | Allowable Load | 50.8 |
| Overload Factor | 58.8 | |
| R.P.M | 3450 | |
| Thrust | N | 2000 |
| Capacitor | UF | 45UF 250V |
| Cable | AWG | 14 |
| Length (ft.) | 3.9 | |
| Production Country | Taiwan | |

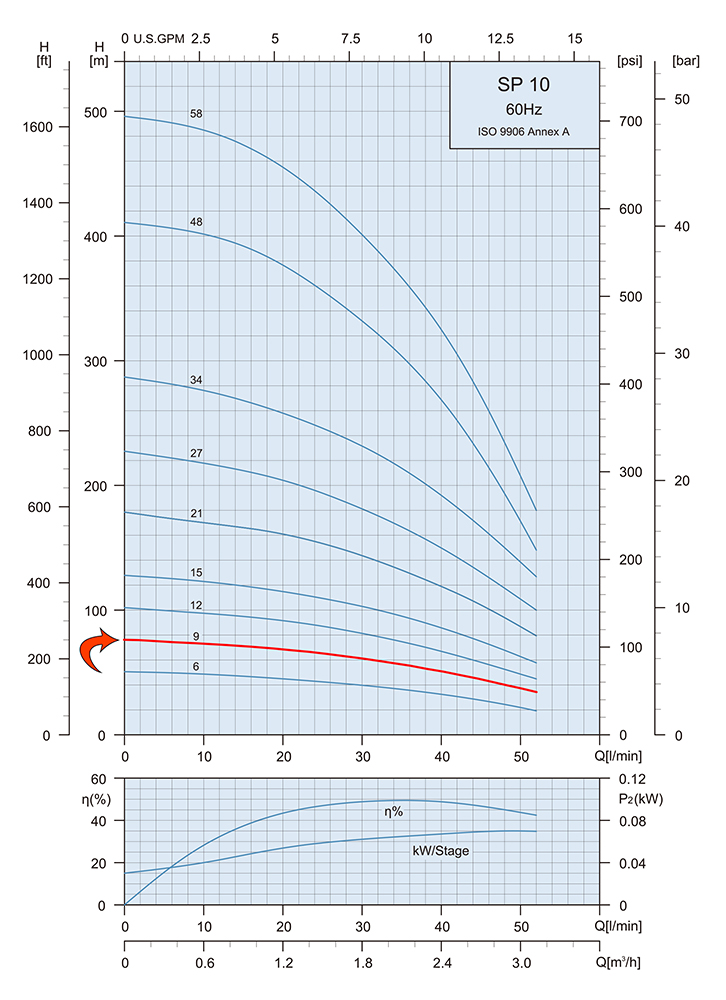

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | ||||||||
| kW | HP | Gal/Min | 0 | 5.3 | 6.6 | 7.9 | 9.2 | 10.6 | 13.2 | |
| GSP 10-9 | 0.37 | 0.5 | Head (ft.) | 252.6 | 226.4 | 213.3 | 200.1 | 183.7 | 167.3 | 121.4 |

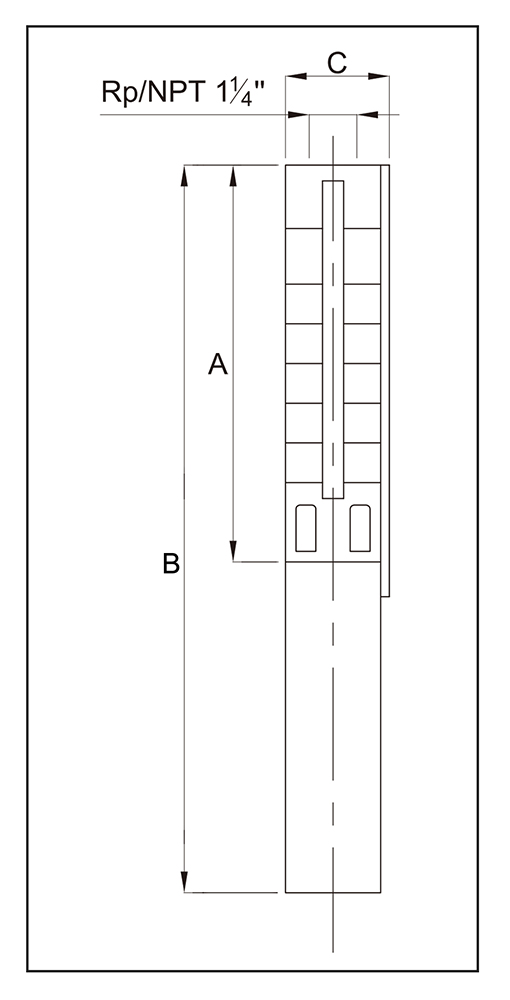

Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | ||||
| A | B | C | Pump | Motor | Pump + Motor | ||
| NPT 1 1/4″ | 4″ | 14″ | 26.1″ | 3.9″ | 6.6 | 20.5 | 27.1 |

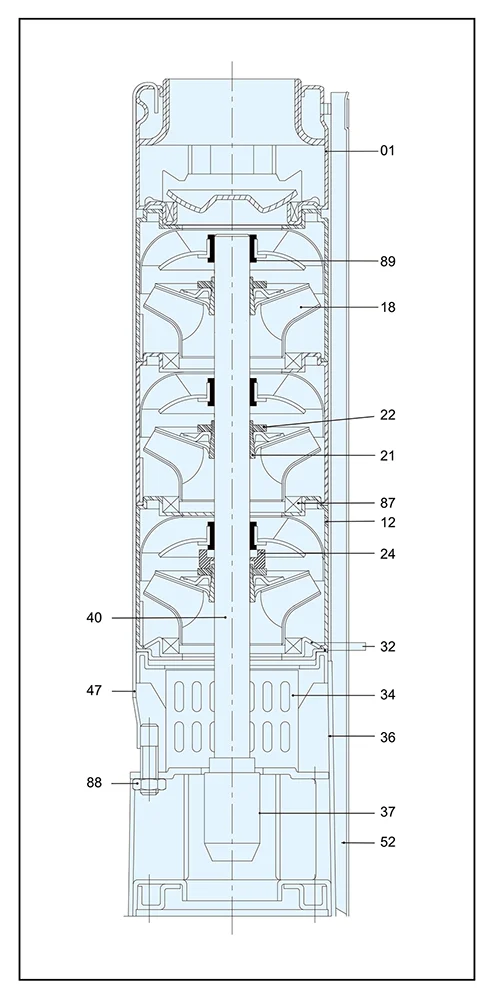

Part List and Materials
| No. | Part Name | Materials |
| 01 | Discharge | AISI 316 |
| 12 | Diffuser | AISI 316 |
| 18 | Impeller | AISI 316 |
| 21 | Split Cone | AISI 316 |
| 22 | Split Cone Nut | AISI 316 |
| 24 | Stop Ring | Carbon + Graphite + PTFE |
| 32 | Neck Ring Retainer | AISI 316 |
| 34 | Strainer | AISI 316 |
| 36 | Suction Interconnector | AISI 316 |
| 37 | Coupling | AISI 316 |
| 40 | Pump Shaft | AISI 316 |
| 47 | Strap | AISI 316 |
| 52 | Cable Guard | AISI 316 |
| 87 | Neck Ring | AISI 316 + HNBR |
| 88 | Nut | AISI 316 |
| 89 | Bearing | HNBR |
