1.5HP SUBMERSIBLE 230V – 3P MOTOR 7.5GPM DEEP WELL WATER PUMP – 4″ – 836ft Motor with Splice kit
$989.85
Pump Specifications
- Maximum Head: 836 ft
- Maximum Flow: 7.5 GPM
- Discharge Size: 1 1/4″
- Power: 1.5 HP
- Voltage: 230V, 3-Phase
- Pump Material: Noryl
- Pump Model: GST 05-26
| HP |
1.5 |
|---|---|
| Pump Diameter |
4” |
Estimated delivery dates: July 22nd - July 24th
Description
| Model | Pump | GST 05-26 |
| Motor | 4CS3936 | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 1.1 |
| HP | 1.5 | |
| Service Factor | 1.3 | |
| Material | Pump | Noryl |
| Motor | Noryl | |
| Voltage – Phase | 230V – Three Phase | |
| Wire | – | |
| In | A | 4.8 |
| Imax | A | 6.4 |
| Istart | A | 34.8 |
| PF (%) | Allowable Load | 0.73 |
| Overload Factor | 0.82 | |
| Efficiency (%) | Allowable Load | 76.7 |
| Overload Factor | 75.7 | |
| R.P.M | 3450 | |
| Thrust | N | 3000 |
| Capacitor | UF | No |
| Cable | AWG | 14 |
| Length (ft.) | 3.9 | |
| Production Country | Taiwan | |

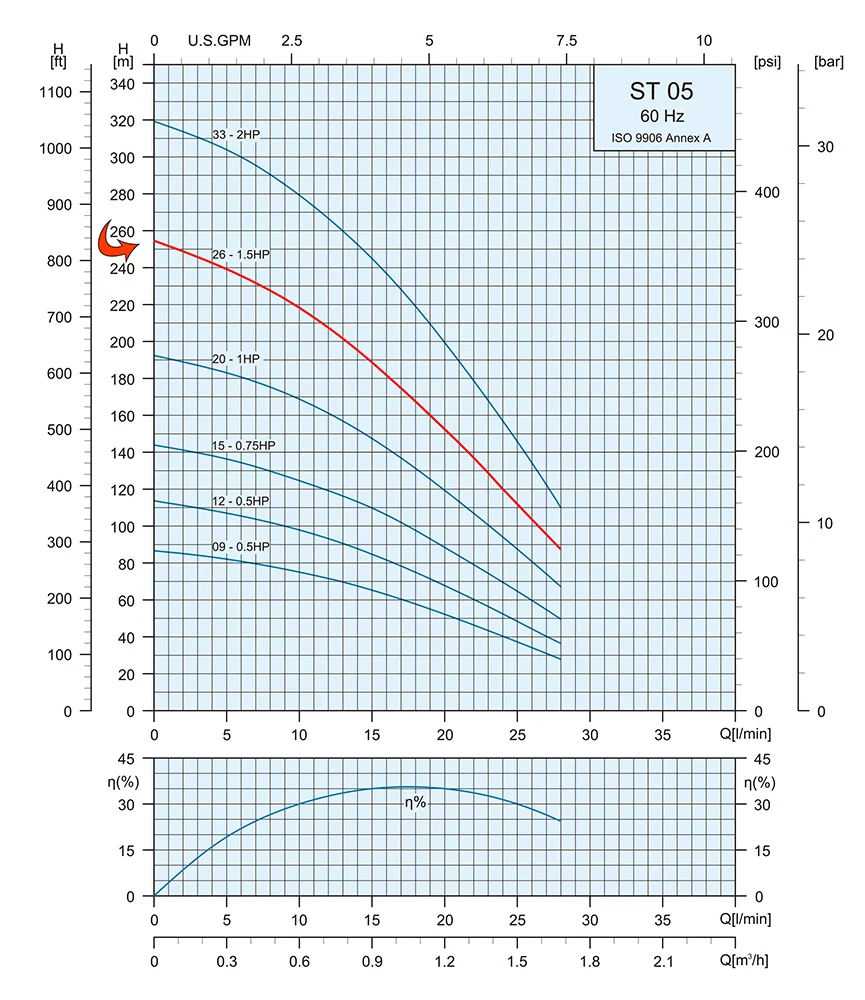

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | |||||||
| kW | HP | Gal/Min | 0 | 2.6 | 4 | 5.3 | 6.6 | 7.9 | |
| GST 05-26 | 1.1 | 1.5 | Head (ft.) | 836.6 | 718.5 | 587.3 | 498.7 | 367.5 | 223.1 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | |||||
| A | B | C | D | Pump | Motor | Pump + Motor | ||
| NPT 1 1/4″ | 4″ | 25.3″ | 1 1/4″ | 3.9″ | 37″ | 12.8 | 24 | 36.8 |

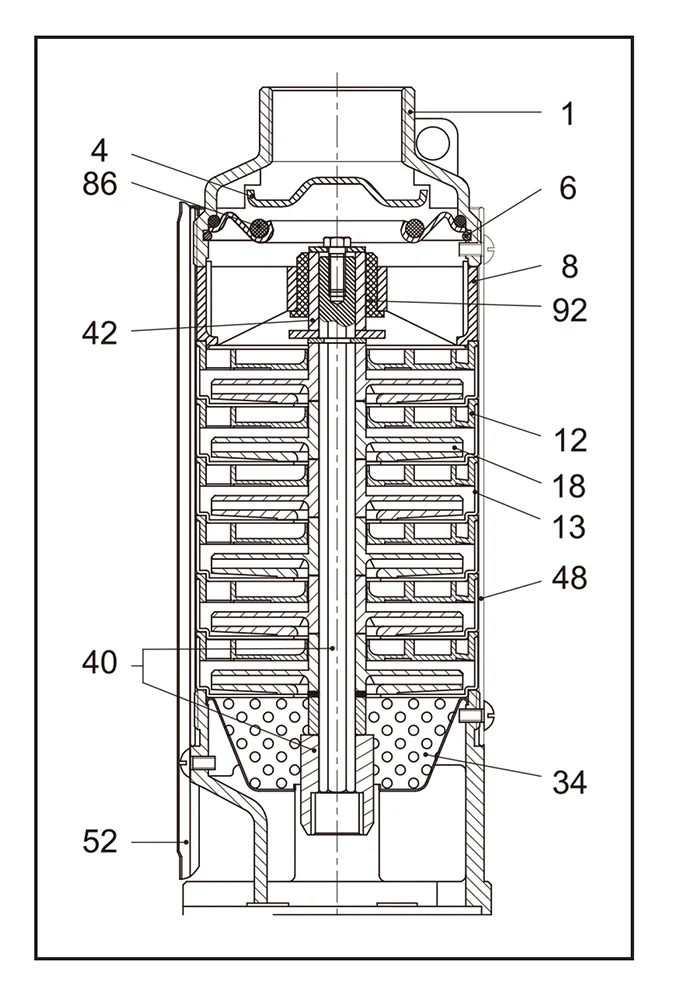

Part List and Materials
| No. | Part Name | Materials |
| 1 | Discharge Head | AISI 304 |
| 4 | Check Valve Cone | AISI 304 |
| 6 | Check Valve Retaining Ring | AISI 304 |
| 8 | Bearing Spider | Glass Filled Polycarbonate |
| 12 | Diffuser | Glass Filled Polycarbonate |
| 13 | Bowl | AISI 304 |
| 18 | Impeller | Noryl |
| 34 | Strainer | AISI 304 |
| 40 | Pump Shaft / Coupling | AISI 304 |
| 42 | Shaft Sleeve | AISI 304 or Noryl |
| 48 | Pump Casing | AISI 304 |
| 52 | Cable Guard | AISI 304 |
| 86 | O-Ring | NBR |
| 92 | Bearing | Polyacetal |
