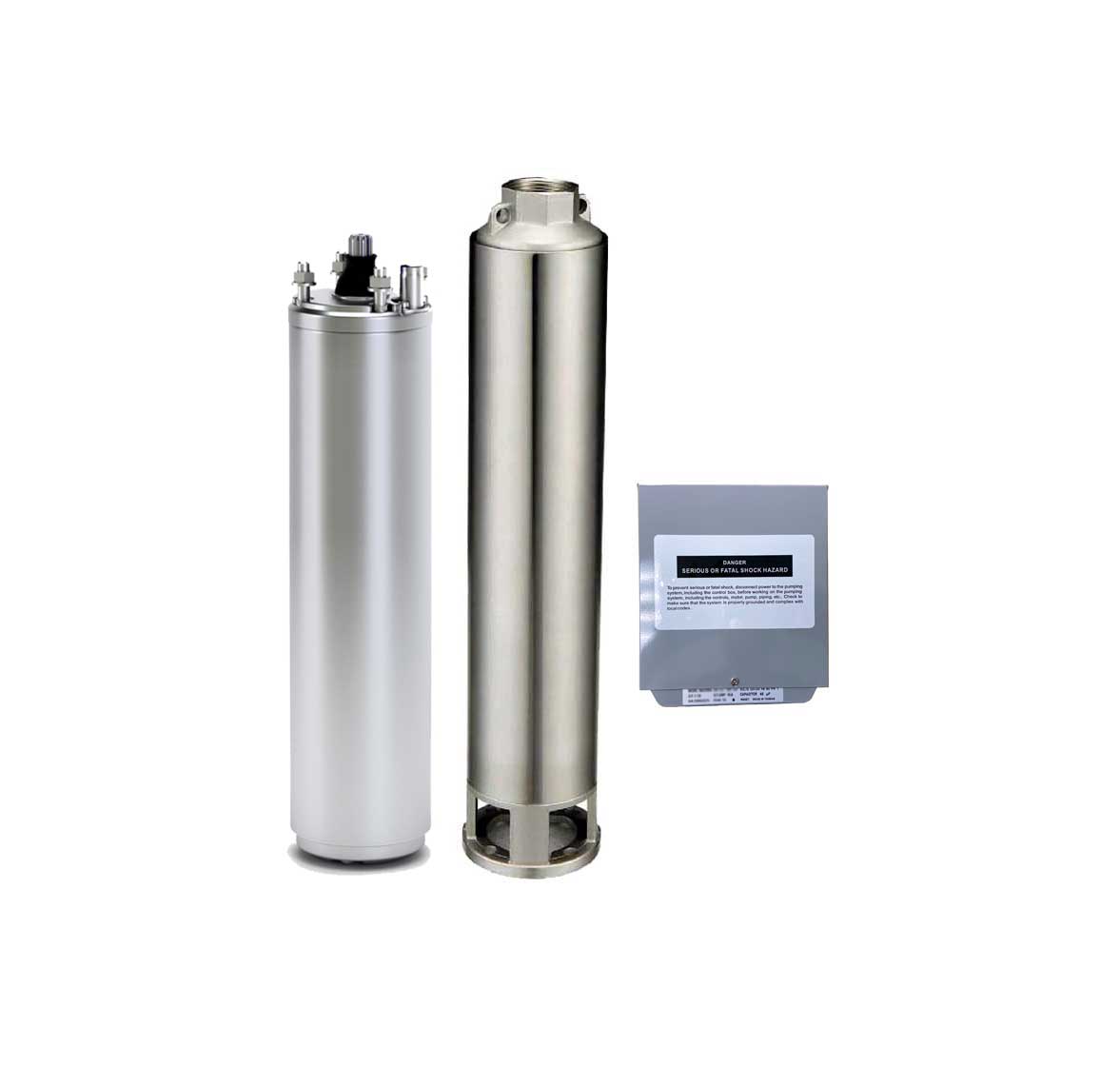

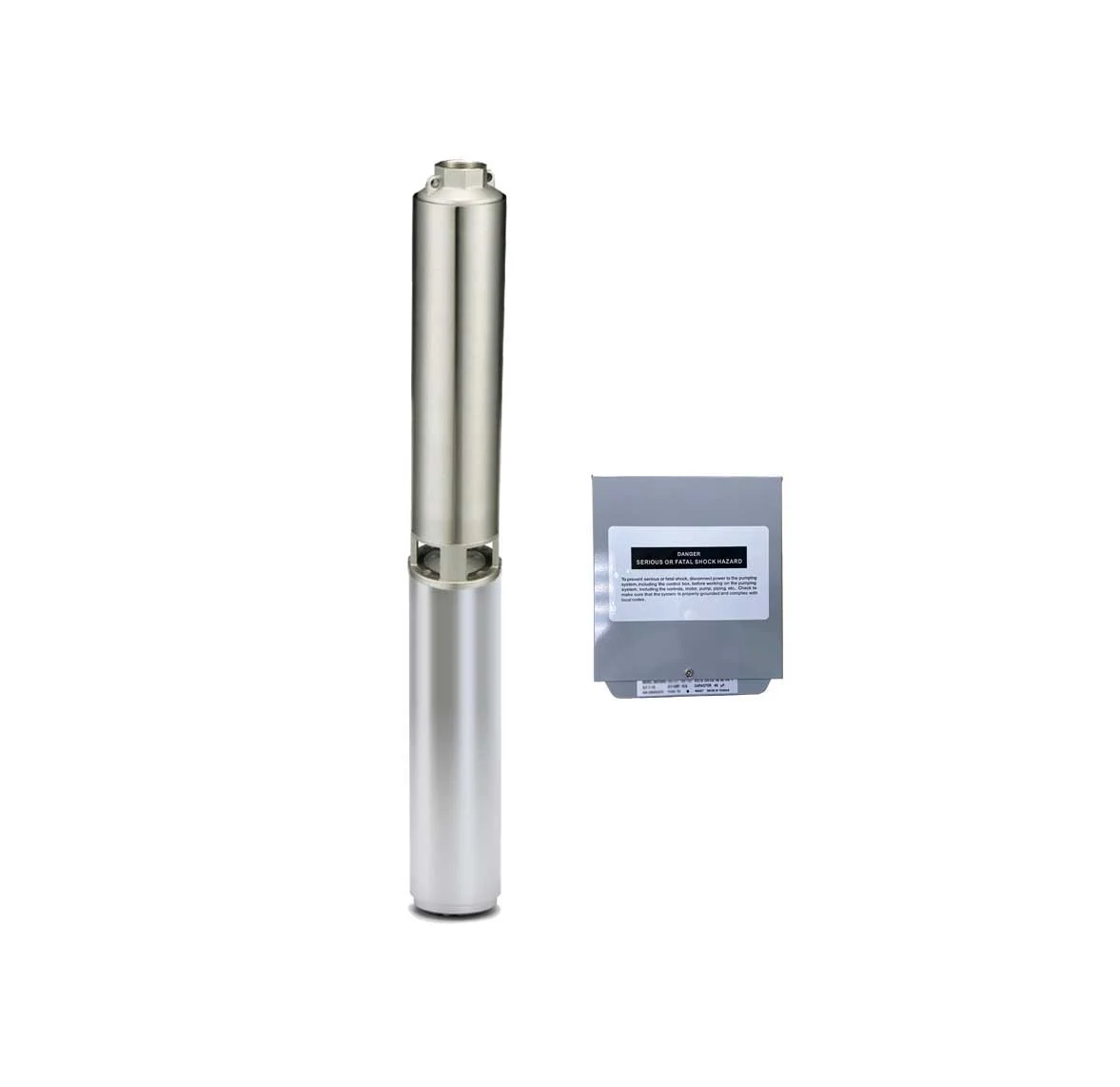

2HP Submersible 3-Wire Motor 14 GPM Deep Well Water Pump – 230V – 1P – 4″ – 850ft Motor with Splice kit
$1,560.00
- Maximum Head: 850 ft
- Maximum Flow: 14 GPM
- Discharge Size: 1 1/4“
- Power: 2 HP
- Voltage: 230V, 1-Phase
- Pump Material: Noryl
- Pump Model: ST 0727
| HP | 2 |
|---|---|
| Pump Diameter | 2” |
Description
| Model | 5329153 |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 years Limited Warranty |
| Service Factor | 1.25 |
| Motor Material Pump Material | Stainless Steel 304 Noryl |
| Volts | 230 – Single Phase |
| In(A) Imax Istart | 13.9 15.8 74 |
| HP | 2 |
| KW | 1.5 |
| R.P.M | 3450 |
| PF Allowable load % PF Overload Factor % | 0.97 0.97 |
| Efficiency(Allowable load%) Efficiency(Overload Factor%) | 70.6 70.7 |
| Need Capacitor Box Need Starter | YES Optional |
| Cable section (AWG) | 14 |
| Cable length (ft.) | 4 |
| Dimensions L x W x H (in.) | 3.8 x 3.8 x 41.5 |
| Product Weight (lbs.) | |
| Production Country | Taiwan |
Gol Pumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

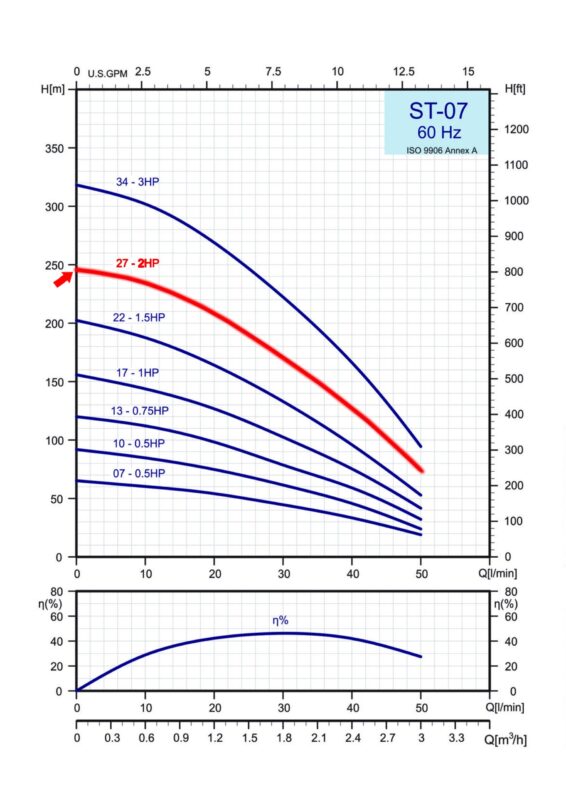

Performance Curves:
Selection Chart:
| PUMP TYPE | STAGES | MOTOR | Q=DELIVERY | |||||||||
| GPM | 2.6 | 4 | 5.3 | 6.6 | 8 | 9.2 | 11 | 13.2 | ||||
| KW | HP | H=TOTAL HEAD IN FEET | ||||||||||
| ST-0727 | 27 | 1.5 | 2 | 807 | 732 | 682 | 623 | 561 | 492 | 417 | 243 | |

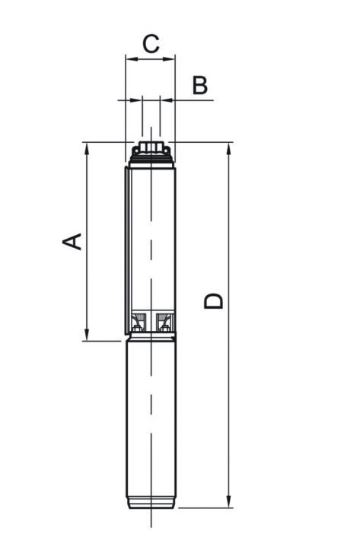

Dimensions and weights:
| Single Phase Motor Dimensions and Weights | ||||||
| Pump Type | Dimensions (mm) | Weight (lb) | ||||
| A | B | C | 14.5 | |||
| ST-0727 | 675 | RP/NPT 1-1/4″ | 98 | |||
MOTOR Materials:
- -Upper/Lower Bracket: AISI 304 Over Iron
- -Stator Shell: AISI 304
- -Shaft: AISI 420
- -Seal Cover: Nylon
- -Lip Seal: NBR
- -Diaphragm: NBR
- -Sand Slinger: NBR
- -Lead Wire (Cable): XLPE
- -Bolts and Screws: AISI 304
- -Lead Potting: Epoxy
- -Kingsbury Thrust Bearing: 402J2
PUMP SPEC:
- Max Head(ft): 850
- Max Flow(Gpm): 14
- Discharge: 1 1/4″
- HP: 2
- Pump Material: Noryl
- Pump Model: ST 0727
Product advantages
- Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
- High efficiency provides operation cost savings Thrust pad
- Copper wiring
- Pressure equalizing diaphragm
- Removable lead connector
- Control boxes available for single phase motor Standard NEMA mounting dimensions
Technical specifications
- Upper bracket: Cataphoretic treated cast iron plus SS304 cover cap.
- Max. Immersion depth: 985 ft.
- Protection: IP68
- Nos. of start per hour: max 20 at regular intervals.
- Sand slinger and lip seal.
- Insulation: Class F
- Rated ambient temperature: 86°F with min.
- Cooling flow 0.08 m/s of water flow speed
- Standard installation position: vertical and horizontal
Estimated Delivery: 3-5 Business Days
If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $120 Liftgate service fee .
For all products over 100 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 100 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
