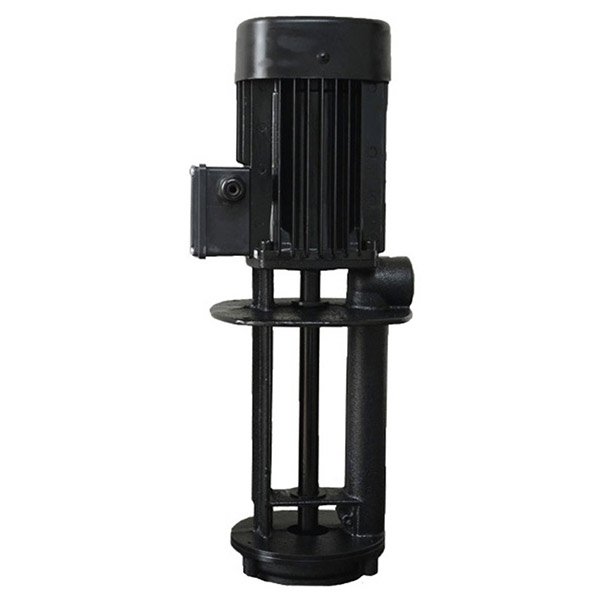

Immersible Coolant Pump SPC 8-18 – 1.6HP, 460V – 3PH, 4596GPH
$508.99
The SPC coolant pump is co-axial pump/motor design to processing-material cooling device such as milling, drilling, cutting, grinding, CNC machines and these widely machine tools, it is suitable to deliver coolant, light oil and all kind non-aggressive liquids.
Pump Construction
The pump is one-chamber vertical centrifugal pump, co-axial pump/ motor design, impellers mounted on extended motor shaft.
Motor
- Frequency: 60 Hz
- Insulation Class: F
- Enclosure Protection Class: IP 54
- Nominal Speed: 3500 RPM
Operation Conditions
- Liquid Temperature Range: +32°F ~ +194°F
- Max. Ambient Temperature: +104°F
- Max. Operating Pressure: 142 PSI
- Liquid viscosity: 1~32 cSt
| HP |
1.6 |
|---|---|
| Flow (GPH) |
4596 |
| Discharge Port (in.) |
RP 1 |
| Brand |
GPT CO |
Technical Data
Model | SPC 8-18 |
Brand | Gol Pumps |
Manufacturer’s Warranty | 1 year Limited Warranty |
HP | 1.6 |
Voltage – Phase | 460V – Three Phase |
Amps | 2.1 |
Flow (GPH) | 4596 |
Max. Total Head (ft.) | 54.1 |
Max. PSI | 142 |
Discharge Port (in.) | RP 1 |
Dimensions L x W x H (in.) | 17.7 x 8.2 x 7.5 |
Product Weight (lb.) | 30.8 |
Performance Curve
Dimensions (inch)
Outlet | A | B | C | D | E | F | G | H | I | J | K | L |
RP 1 | 10.6 | 17.7 | 7.1 | 4.5 | 3.7 | RP 1 | 1.2 | 5.1 | 7.5 | 5.9 | 4-Ø0.3 | PCD 7.3 |
Parts and Materials
No | Component | Material |
1 | Motor | ADC 12 |
2 | Pump | FC 20 |
3 | Pump Cover | FC 20 |
4 | Impeller | Nylon |
5 | Wiring Box | ABS |
Installation
Estimated Delivery: 3-5 Business Days
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply.
