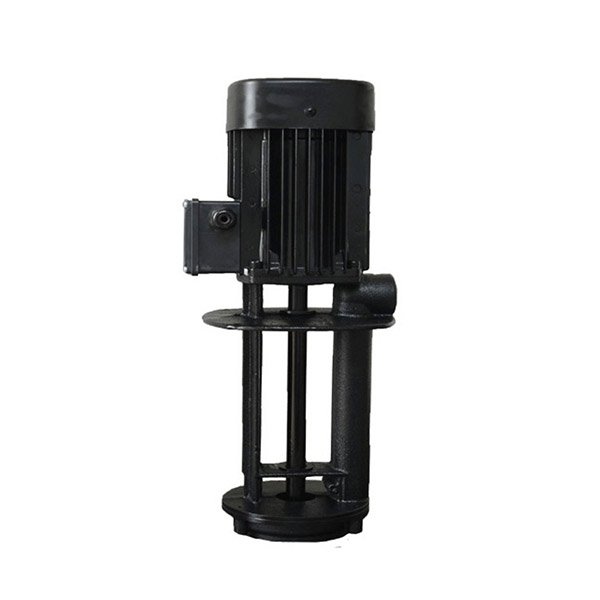

Immersible Coolant Pump SPC 4-18 – 0.9HP, 460V – 3PH, 3012GPH
$412.99
The SPC coolant pump is co-axial pump/motor design to processing-material cooling device such as milling, drilling, cutting, grinding, CNC machines and these widely machine tools, it is suitable to deliver coolant, light oil and all kind non-aggressive liquids.
Pump Construction
The pump is one-chamber vertical centrifugal pump, co-axial pump/ motor design, impellers mounted on extended motor shaft.
Motor
- Frequency: 60 Hz
- Insulation Class: F
- Enclosure Protection Class: IP 54
- Nominal Speed: 3500 RPM
Operation Conditions
- Liquid Temperature Range: +32°F ~ +194°F
- Max. Ambient Temperature: +104°F
- Max. Operating Pressure: 142 PSI
- Liquid viscosity: 1~32 cSt
| HP |
0.9 |
|---|---|
| Flow (GPH) |
3012 |
| Discharge Port (in.) |
RP 3/4 |
| Brand |
GPT CO |
Description
Technical Data
| Model | SPC 4-18 |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| HP | 0.9 |
| Voltage – Phase | 460V – Three Phase |
| Amps | 1.1 |
| Flow (GPH) | 3012 |
| Max. Total Head (ft.) | 42.7 |
| Max. PSI | 142 |
| Discharge Port (in.) | RP 3/4 |
| Dimensions L x W x H (in.) | 15.9 x 8 x 6.7 |
| Product Weight (lb.) | 24.2 |
Performance Curve
Dimensions (inch)
| Outlet | A | B | C | D | E | F | G | H | I | J | K | L |
| RP 3/4 | 8.9 | 15.9 | 7.1 | 4.5 | 3.3 | RP 3/4 | 1 | 4.7 | 6.7 | 5.3 | 4-Ø0.3 | PCD 6.7 |
Parts and Materials
| No | Component | Material |
| 1 | Motor | ADC 12 |
| 2 | Pump | FC 20 |
| 3 | Pump Cover | FC 20 |
| 4 | Impeller | Nylon |
| 5 | Wiring Box | ABS |
Installation
Reviews (0)
Shipping & Delivery
Estimated Delivery: 3-5 Business Days
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply.
