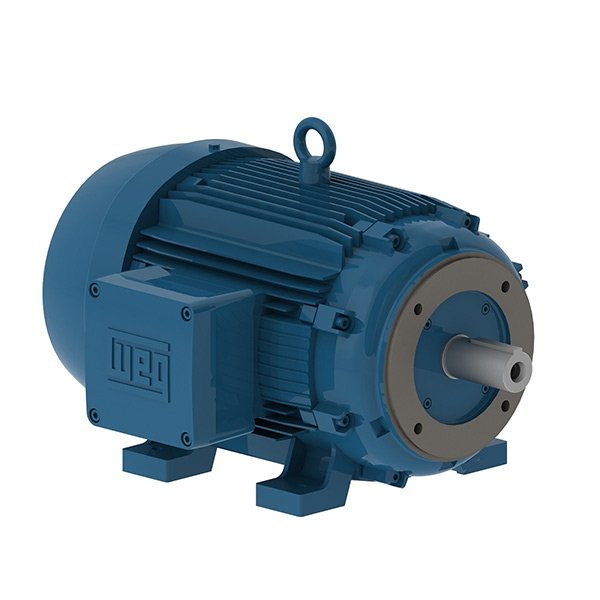

WEG Motor W21 Explosion Proof NEMA Premium Efficiency ? 7.5HP, 230/460V ? 3Ph, 60Hz, 3535RPM, TEFC, Foot-mounted, Model: 00736XT3E213TC
$1,330.99
WEG Explosion proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 7.5 HP |
| Flange | C |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC411 – TEFC |
| Brand |
WEG |
|---|
Description
Technical Data
| Brand | WEG |
|---|---|
| Frame | 213/5TC |
| Output | 7.5 HP |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3535 rpm |
| Slip (%) | 1.81 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 17.3/8.67 |
| L. R. Amperes (A) | 125/62.4 |
| LRC (A) | 7.2x (Code H) |
| No load Current (A) | 5.50/2.75 |
| Rated Torque (ft.lb) | 11.1 |
| Locked Rotor Torque (%) | 229 |
| Breakdown Torque (%) | 300 |
| Locked Rotor Time | 41s (cold) 23s (hot) |
| Moment of Inertia (J) | 0.4696 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 72.0 dB(A) |
| Approx. Weight (lb) | 208 |
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 85.5 | 88.5 | 89.5 |
Power Factor
| 50% | 75% | 100% |
|---|---|---|
| 0.78 | 0.86 | 0.89 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202P (ISO 12944 – C4) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Stainless Steel AISI 316L |
| Fan material | Plastic |
